Y410p detailed pictures

Because everyone seems to have similar questions I took a bunch of pictures of my Y410p. I have pictures of the screen, keyboard, all sides, and the insides with close ups of each component that I could get to. I hope this helps.

The Exterior

Top and Front: LED for Power, Charging, Touchpad, WIFI; SD Card reader

Rear: Battery

Right: Microphone Jack, Audio Jack, Always Powered USB, USB 2.0, Ultrabay, Kensington Lock

Left: USB 3.0, HDMI, Ethernet, VGA Port, Exhaust Vent, Power Connector

Bottom: Vents over cooling fan and HDD



The Screen and Keyboard

With room lighting on

Without room lighting on

Keyboard without lighting on

Screen close-up to show pixels



How to disassemble Y410p

Release battery lock, pull battery release, remove battery

Release ultrabay lock, pull ultra bay release, remove ultrabay

Remove the 8 screws

Remove bottom panel, it is cliped on, use firm pressure and get as close to the pins as you can, if it is stuck check to make sure you got all 8 screws



Inside the Y410p part 1

Overview

WIFI Card: Intel Centrino Wireless-N 2230

WIFI Card 2: Seems strange it is only held in with 1 screw.

2.5" SATA III slot, HDD is under the foil

RAM: 2x4GB DDR3 1600MHz

Under the RAM



Inside the Y410p part 2

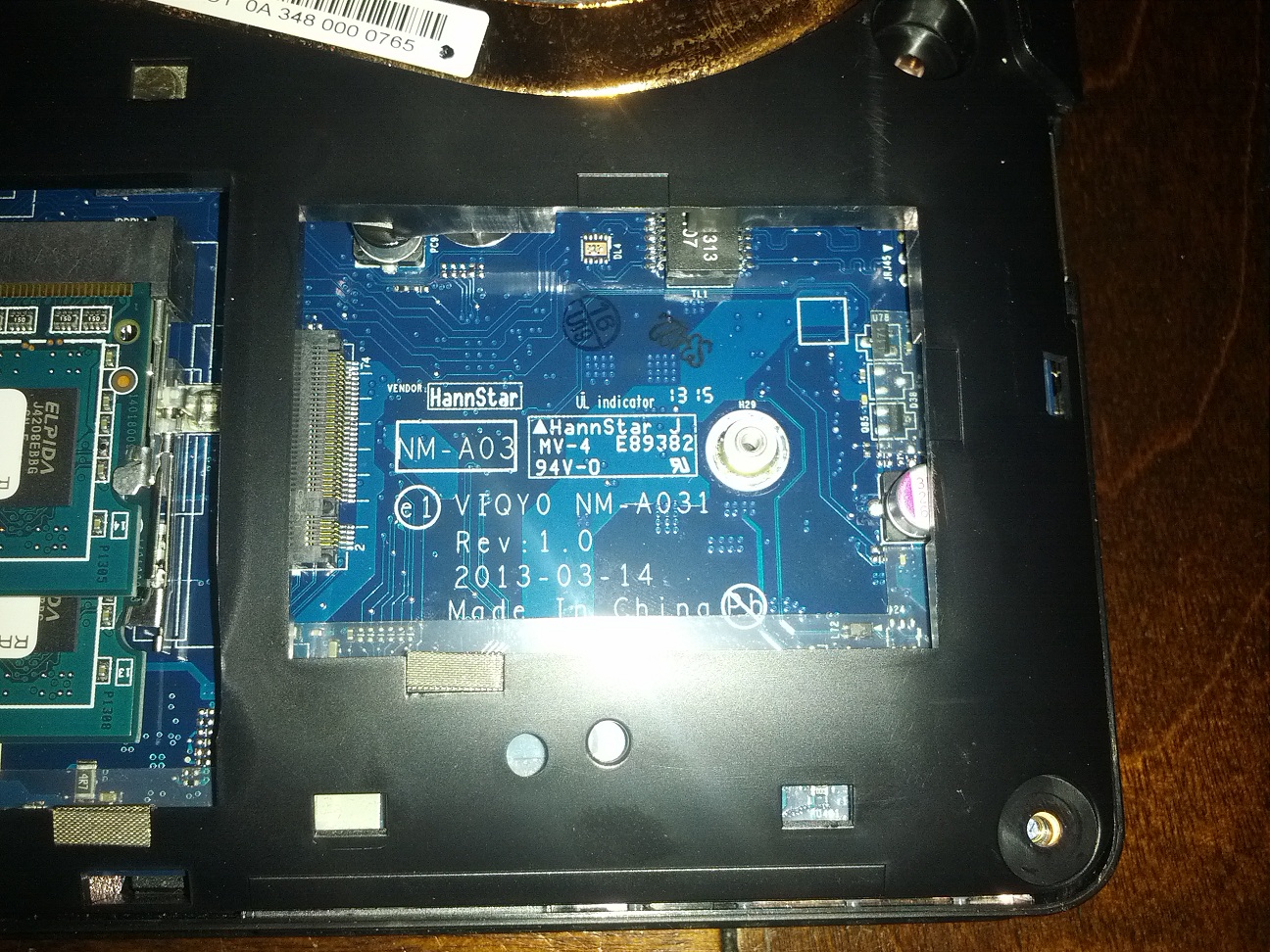

M.2 NGFF Slot

Capacitor and shell blocking longer cards

Official length is 42mm, there is maybe about 50mm total clearance in the slot, no way you're fitting a 60mm or 80mm into this.



Temperature Readings

All temps taken with Speedfan. Laptop was placed on a flat hard surface, nothing obstructing the exhaust port. Power was plugged in, set to "Balanced" power plan.

Ambient Room Temperature: 70F (21.1C)

Base temps:
Clock: .. 0.8GHz
GPU: ... 35C
HDD: ... 27C
Core 0: 26C
Core 1: 26C
Core 3: 29C
Core 2: 24C


Tested CPU using Prime95 (Large FFTs) for 20 minutes:
Throttling kicked in after about 5 minutes and dropped temps
CPU Clock: 3GHz . 2.4 GHz
Temps: ...... Max. . Throttled
GPU: ......... 57C ... 57C
HDD: ......... 31C ... 31C
Core 0: ...... 72C ... 64C
Core 1: ...... 75C ... 67C
Core 2: ...... 73C ... 65C
Core 3: ...... 72C ... 64C

Tested GPU using Furmark (720p) for 15 minutes:
Using OEM Lenovo/NVidia drivers (311.41)
Framerates: Min. 22 Avg. 24 Max. 25
CPU Clock: 3GHz . 2.4 GHz
GPU Clock:1058MHz
Temps: ...... Max.
GPU: ......... 75C
HDD: ......... 27C
Core 0: ...... 58C
Core 1: ...... 59C
Core 2: ...... 57C
Core 3: ...... 57C

Tested CPU and GPU using Prime95 (Large FFTs) and Furmark (720p) for 4 minutes:
CPU throttling kicked in after about 15 seconds I couldn't get a max. temp before it started, CPU dropped to 800MHz at the 4 minute mark and I cancelled the test.
Using OEM Lenovo/NVidia drivers (311.41)
Framerates: Min. 20 Avg. 22 Max. 24
GPU Clock:1058MHz
Temps: ...... Throttled
GPU: ......... 89C
HDD: ......... 28C
Core 0: ...... 80C
Core 1: ...... 81C
Core 2: ...... 83C
Core 3: ...... 80C
