    lenovo x120e - bios patch for Intel 6200n wifi card

    Discussion in 'Lenovo' started by buratino, Mar 21, 2011.

  1. buratino

    buratino Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Can someone help me with replacing stock wifi card with the intel 6200 miniPCI one?
    So after searching ebay i got lenovo branded wifi card (60Y3230), but it didn't work...



    After installing the new card laptop refuse to boot and throws 1802 error.

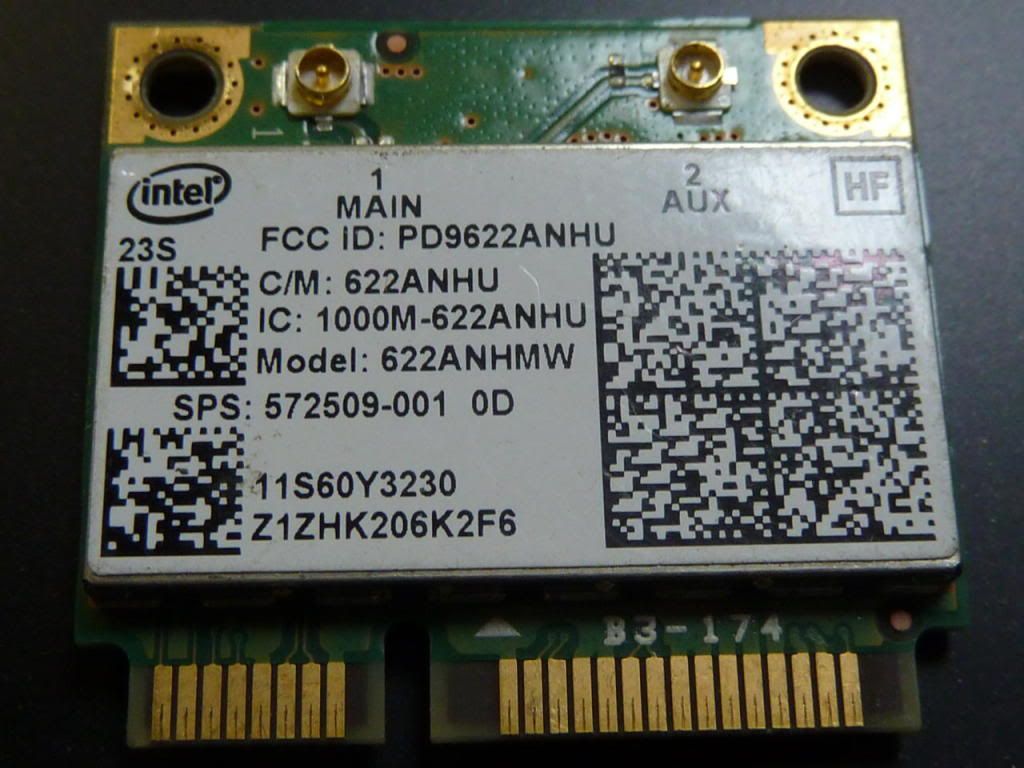

    and here is the card

    buratino, Mar 21, 2011
    #1
  2. Keytone

    Keytone Notebook Enthusiast

    Reputations:
    9
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Keytone, Mar 21, 2011
    #2
  3. buratino

    buratino Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Sorry, should make the title more clear: request to remove whitelist from the bios.

    P.S. the 6250 uses the same drivers as 6200

    buratino, Mar 21, 2011
    #3
  4. AboutThreeFitty

    AboutThreeFitty ~350

    Reputations:
    814
    Messages:
    1,705
    Likes Received:
    0
    Trophy Points:
    55
    I little late for this, but I used an Intel 5100 (mini pci) in my x100e and it worked just fine.(Doesn't mean it will work in x120e.)

    AboutThreeFitty, Mar 22, 2011
    #4
  5. Waef

    Waef Notebook Guru

    Reputations:
    63
    Messages:
    68
    Likes Received:
    1
    Trophy Points:
    16
    For what it's worth...I bought an intel 5100, and it didn't work..until I installed a modded BIOS. It was on slickdeals that I saw how to do it...if you want I can link you to the post.

    However, I'm kinda thinking I might just upgrade to the Intel 6300. Apparently there are 3 antenna that can be used in the x120e.

    Waef, Mar 22, 2011
    #5
  6. MidnightSun

    MidnightSun Emodicon

    Reputations:
    6,668
    Messages:
    8,224
    Likes Received:
    231
    Trophy Points:
    231
    Nope, it was verified not to be among the supported cards in the X120e: for some reason or another, Lenovo removed the Intel WiFi 5100 from the whitelist in the X120e BIOS.

    MidnightSun, Mar 22, 2011
    #6
  7. clicq

    clicq Notebook Consultant

    Reputations:
    35
    Messages:
    114
    Likes Received:
    0
    Trophy Points:
    30
    There's already a bios with the whitelist check removed, if you google for "slickdeals x120e bios" (not sure if I can give a direct link to the post or not here...)

    clicq, Mar 22, 2011
    #7
  8. buratino

    buratino Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Is it sorta do-it-yourself? I'm interested, for now there is a solution for current bios (1.08)
    Remove whitelist check / add ID's to break hardware restrictions mod requests.

    sry, if the link to other forum is not permitted...

    buratino, Mar 22, 2011
    #8
  9. buratino

    buratino Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    the guy i bought my 6200 has x100e listed as supported. But as it turned out it does not works in x120e. The seller went an extra mile and sent me a replacement card. As you can guess neither of them worked without the bios patch. He also offered a refund. So as a token of appreciation for his kindness and for any of you willing to upgrade I’m placing a link Intel Advanced-N 6200 MiNi Card For Lenovo 60Y3230 | eBay

    I'm leaving it up to admins to kill the link

    buratino, Mar 22, 2011
    #9
  10. buratino

    buratino Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    can anyone say if 6300 has any real advantage over 6200 and is worth the extra cash?

    buratino, Mar 22, 2011
    #10
  11. ThinkRob

    ThinkRob Notebook Deity

    Reputations:
    1,006
    Messages:
    1,343
    Likes Received:
    2
    Trophy Points:
    56
    In many cases the 6300 has marginally more consistent performance due to mildly improved resistance to interference. Whether that's worth the extra money, however, is something that only the buyer can decide. :)

    ThinkRob, Mar 22, 2011
    #11
  12. Benchmade 42

    Benchmade 42 Titanium

    Reputations:
    631
    Messages:
    1,738
    Likes Received:
    42
    Trophy Points:
    66
    Is this card better than the $20 A/B/G/N Broadcom upgrade from Lenovo?

    Benchmade 42, Mar 22, 2011
    #12
  13. kubel

    kubel Notebook Evangelist

    Reputations:
    67
    Messages:
    444
    Likes Received:
    0
    Trophy Points:
    30
    There's nothing illegal or unethical about using a custom BIOS.

    kubel, Apr 7, 2011
    #13
  14. TTAV134

    TTAV134 Newbie

    Reputations:
    49
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    TTAV134, Apr 14, 2011
    #14
