    some pics of ideapad u330

    Discussion in 'Lenovo' started by yn1997, Aug 19, 2008.

  1. yn1997

    yn1997 Notebook Guru

    Reputations:
    6
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    15
    [​IMG]

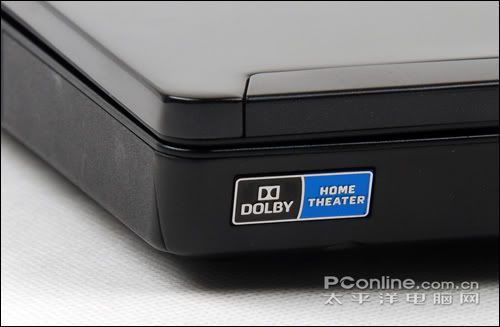

    dolby home theater
    [​IMG]

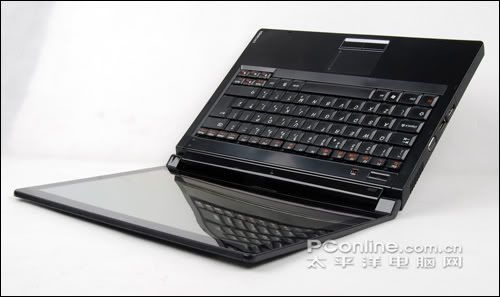

    glossy screen
    [​IMG]

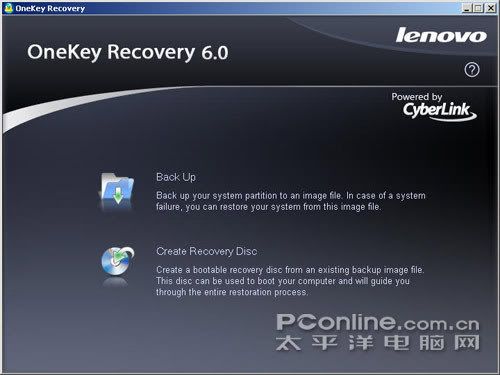

    lenovo one key recovery
    [​IMG]

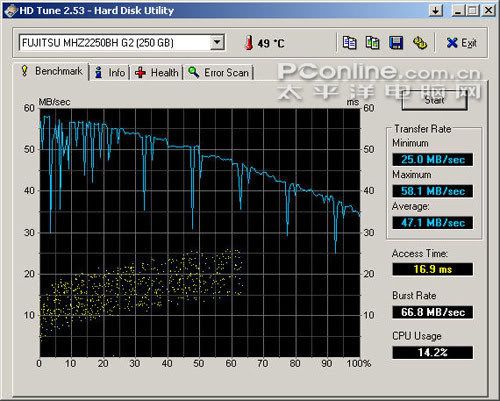

    harddisk benchmark (hdtune)

    cinebench r10 4983/175sec
    pcmark05 X4500HD HD3470
    overall 4718 5503
    processor 6038 6147
    memory 5052 5050
    videocard 2053 3450
    harddisk 4356 4467

    [​IMG]
    Temperature is celsius. Enviroment temperature is aound 28c,running ATI graphic card is 2c hotter than integrate card.
    [​IMG]

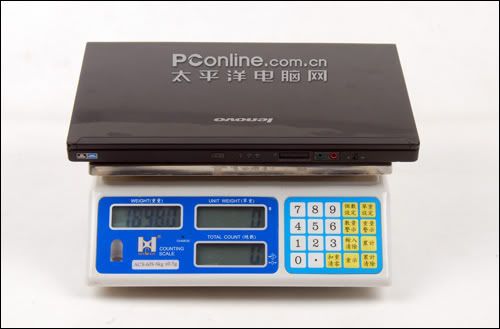

    The 6-cell battery wont stick out as T400/t500, weight include battery is 1.889kg, keyboard feels like thinkpad quiet and comfort, quality is very nice compare to XpS 1330.
    cons: lack of ports,glossy screen is hard to use outside

  2. fuanacho

    fuanacho Notebook Consultant

    Reputations:
    1
    Messages:
    184
    Likes Received:
    0
    Trophy Points:
    30
    I only see a chinese words and a PConline.com logo.

  3. yn1997

    yn1997 Notebook Guru

    Reputations:
    6
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    15
    oh,really. can someone else see those pictures?

  4. Han Bao Quan

    Han Bao Quan The Assassin

    Reputations:
    4,071
    Messages:
    4,208
    Likes Received:
    0
    Trophy Points:
    105
    I can't see it either.

  5. yn1997

    yn1997 Notebook Guru

    Reputations:
    6
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    15
    Is there any way i can upload images to this sever?

  6. fuanacho

    fuanacho Notebook Consultant

    Reputations:
    1
    Messages:
    184
    Likes Received:
    0
    Trophy Points:
    30
    photobucket.com

    Upload 'em there. and later put it here.

  7. yn1997

    yn1997 Notebook Guru

    Reputations:
    6
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    15
    done . I hope it works now.

  8. stewie

    stewie What the deuce?

    Reputations:
    3,666
    Messages:
    2,174
    Likes Received:
    0
    Trophy Points:
    55
    Thanks for the pics. :cool:

  9. zoopido

    zoopido Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Ugh, I want one now~! I'm hitting refresh on the Singapore/HK twice a day in anticipation.

  10. ChristopherAKAO4

    ChristopherAKAO4 Notebook Nut

    Reputations:
    641
    Messages:
    1,700
    Likes Received:
    0
    Trophy Points:
    55
    Nice, thanks man.

  11. admlam

    admlam Notebook Deity NBR Reviewer

    Reputations:
    221
    Messages:
    1,203
    Likes Received:
    0
    Trophy Points:
    55
    Thanks for the info.

    The U330 seems awfully hot based on this review, which raises some concern.

  12. stewie

    stewie What the deuce?

    Reputations:
    3,666
    Messages:
    2,174
    Likes Received:
    0
    Trophy Points:
    55
    Awfully hot? I thought those temperatures are cooler than most SA platform notebooks I've seen.

  13. admlam

    admlam Notebook Deity NBR Reviewer

    Reputations:
    221
    Messages:
    1,203
    Likes Received:
    0
    Trophy Points:
    55
    [​IMG] [​IMG]

    104*F palm rests and 106*F touchpad are pretty much up there in comparison to the other Ideapads, especially in an air conditioned 78*F room. (I don't have that luxury, especially now.)

    The review from pconline.com.cn also had thermal management as one of the cons as running the notebook off of the IGP only brought down the temps by a few *C - still a bit warm.

  14. autobulb

    autobulb Notebook Consultant

    Reputations:
    4
    Messages:
    126
    Likes Received:
    1
    Trophy Points:
    31
    admlam: I am really interested in this laptop but the temperature tests are a bit worrysome. Which models did post with their temps? They seem a little friendlier.

  15. admlam

    admlam Notebook Deity NBR Reviewer

    Reputations:
    221
    Messages:
    1,203
    Likes Received:
    0
    Trophy Points:
    55
    The pictures I used were from the Y510 and U110 to compare with the temps reported by the Chinese review.

    [​IMG]

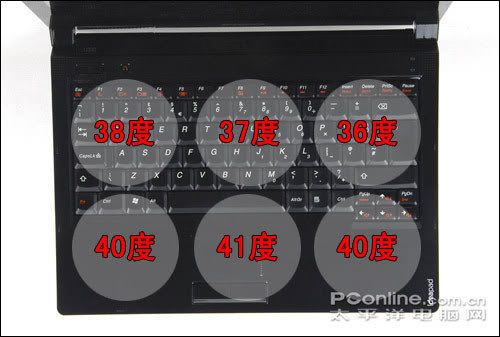

    度 is degrees in Chinese and those values are in Celsius. Not very comforting, although in their defense, they used a P8600 in the review unit.

    But at the areas of question, the hard drive and 0.9" thick chassis would probably be the culprit.

    And oh crap, I hope the US keyboard isn't like that... left shift and |\ key are looking out of place.

  16. autobulb

    autobulb Notebook Consultant

    Reputations:
    4
    Messages:
    126
    Likes Received:
    1
    Trophy Points:
    31
    Do you think the P8600 had something to do with the higher temps? According to Wikipedia the P7350, P8400, and P8600 have the same TDP of 25W. Also, were those temperatures recorded while it was under load, or idle? Sorry for so many questions, but this seems to be the only review I can find of this laptop and it's in chinese which I cannot read!

  17. admlam

    admlam Notebook Deity NBR Reviewer

    Reputations:
    221
    Messages:
    1,203
    Likes Received:
    0
    Trophy Points:
    55
  18. kickace

    kickace Notebook Deity

    Reputations:
    71
    Messages:
    1,054
    Likes Received:
    8
    Trophy Points:
    56
    well besides the p8600 being in that laptop for heat, i also have a feeling that is coming from when the video card is turned on, whcih makes sence as most laptops get around that hot, especially with a dedicated video card.


    we will see when NBR releases a review!

  19. autobulb

    autobulb Notebook Consultant

    Reputations:
    4
    Messages:
    126
    Likes Received:
    1
    Trophy Points:
    31
    admlam: Thanks for the link. The chinese review site lists Gigabit network card but alot of other sites that list the U330's specs say 10/100 which I thought was odd in such a modern laptop.

    Also, it cleared up the issue of whether the tests were done under load. It says 2 hours of load to get those temps, which I guess aren't so bad. I am curious about idle temps since I plan on having this on for alot of the time.

  20. stewie

    stewie What the deuce?

    Reputations:
    3,666
    Messages:
    2,174
    Likes Received:
    0
    Trophy Points:
    55
    hmm... comparing those temps to most laptops out there, it's really not that bad at all. The other IdeaPads, which I owned/used, are actually quite cool compared to other laptops in the same category. I'm not sure how accurate those review numbers are, especially when the numbers are taken from 2 different reviewers/sites with 2 different measuring devices. In real person experiences and also checking them at the stores next to other laptops, I thought they're quite cool. But I guess the thinner case of the U330 might be the cause like you said.

  21. WallstreetRainmaker

    WallstreetRainmaker Notebook Enthusiast

    Reputations:
    0
    Messages:
    48
    Likes Received:
    0
    Trophy Points:
    15
    Cool beans looks like a decent machine.

    *sigh* Unfortunately I'm still a thinkpad whore :D

  22. kickace

    kickace Notebook Deity

    Reputations:
    71
    Messages:
    1,054
    Likes Received:
    8
    Trophy Points:
    56
    wondering if the quoted 196 min battery life from that on the integrated graphics is when 3dmark is running or during gaming/hd movies?

    because they don't really explain if it was just the internet because they got the listing right under the 3dmark scores, and around the game testing.

    anyone have an ide?

  23. cashrevert

    cashrevert Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    how much better is this compared to the Dell M1330?

  24. Redbarron

    Redbarron Notebook Guru

    Reputations:
    0
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15
    Are the Lenovo U330 screens high gloss? I hope not. Cannot see text with those things. I dont get what the bigee is with those things. It is pushing me to gofor the T400

  25. stewie

    stewie What the deuce?

    Reputations:
    3,666
    Messages:
    2,174
    Likes Received:
    0
    Trophy Points:
    55
    The glossy screen of the U series is not any glossier than other glossy screens out there. The review of the U110 by JerryJ was based on his own personal preference of mat screen, and not to be disrespectful, I think it's not unbiased by calling it "horrible", which I find it untrue with my own experience. Chaz recently did a review on the new HP dv5t with the same 2-layers type glossy screen, it's really not as exaggerated as some people put it. Anyway, try to see if you can check the new HP and Dell in person, some of them have the same type of glossy screen.

  26. Phil

    Phil Retired

    Reputations:
    4,415
    Messages:
    17,036
    Likes Received:
    0
    Trophy Points:
    455
    Well in defense of the U330 in that review getting quite hot: I've seen more people complain about the heat of the Fujitsu 250GB drive.

  27. radyoactive

    radyoactive Notebook Consultant

    Reputations:
    12
    Messages:
    190
    Likes Received:
    0
    Trophy Points:
    30
    I can't imagine it will be much hotter than the DV4t I plan on sending back to HP.

  28. melcron

    melcron Notebook Guru

    Reputations:
    1
    Messages:
    70
    Likes Received:
    1
    Trophy Points:
    15
    http://www.blogsmithmedia.com/www.engadget.com/media/2008/05/5-3-08-u110-display.jpg

    http://reviews.digitaltrends.com/review/5211-26063-2/lenovo-ideapad-u110-review-the-bad-and-conclusion
    "The biggest disappointment is the display, which has a very grainy look to it. We’re not sure if it’s the display itself or the glossy cover, but it’s not pretty and was tough on our eyes."

    http://www.pcworld.com/article/146729/lenovo_ideapad_u110_ultraportable_laptop.html
    "As on the IdeaPad Y510, Lenovo's glossy treatment creates an annoying amount of glare, even with the brightness control set all the way up. At least you'll be fine indoors."

    http://www.pcmag.com/article2/0,2817,2293281,00.asp
    "The IdeaPad's 11-inch widescreen also receives a glossy treatment, which extends beyond the screen to the trimmings. This technique gives the IdeaPad a snazzy feel—almost like that of a miniature HDTV—without producing intolerable glare[...] It's the same screen as the one on the Sony VAIO VGN-TZ150N, with the same resolution"

    http://www.digitgeek.com/lenovo-ideapad-u110-review/
    "It looks good with good brightness and contrast levels, but it is a bit too glossy. The display quality is also a wee bit grainy. Due to the high glossiness, it is difficult to read anything on the display without straining your eyes. There is a bit too reflection even under standard lighting conditions"

  29. kickace

    kickace Notebook Deity

    Reputations:
    71
    Messages:
    1,054
    Likes Received:
    8
    Trophy Points:
    56

    when you get a u330 in your hands, make your own opinion of the screen before posting reviews of other similar laptops :)

  30. melcron

    melcron Notebook Guru

    Reputations:
    1
    Messages:
    70
    Likes Received:
    1
    Trophy Points:
    15
    I was responding to his comment that the reviewer may not be reliable. I was quoting other reviews showing similar views and my post was not off topic whatsoever...

    I purchased a U330 and am waiting for it to arrive so yes I will be forming my own opinion. My ship date is Sept 30th.

    Hmm... maybe I should have spent $100 more and got the 3GB RAM 320GB HD option... My total came out to be $1003 shipped with the lesser option.
