    t400s mSata Question

    Discussion in 'Lenovo' started by jibs, Nov 20, 2012.

  1. jibs

    jibs Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    I've got an older t400s that i'm still really happy with. Now I know this model uses the smaller 1.8" micro sata drives as its primary hard drive and I know about the drive bay caddy's as another way to add storage. But I popped off the bottom RAM cover today and I noticed an empty slot, I know the newer t4XXs series laptops come with a small mSata drive installed and i'm wondering if it's possible for me to install an mSata drive in this open port and if it would be recognized by my laptop?

    I've attached a picture to help clarify the empty port i'm talking about. Also what is the other small card plugged into the slot with wires attached to it? Thanks in advance for the help

    400s 1.jpeg

    jibs, Nov 20, 2012
    #1
  2. lead_org

    lead_org Purveyor of Truth

    Reputations:
    1,571
    Messages:
    8,107
    Likes Received:
    126
    Trophy Points:
    231
    the T400s and T410s are not compatible with mSATA, the empty slot is for a WWAN Card.

    lead_org, Nov 20, 2012
    #2
  3. jibs

    jibs Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    Good to know. Thanks for the quick response

    jibs, Nov 20, 2012
    #3
  4. Kaso

    Kaso Notebook Virtuoso

    Reputations:
    744
    Messages:
    3,546
    Likes Received:
    33
    Trophy Points:
    116

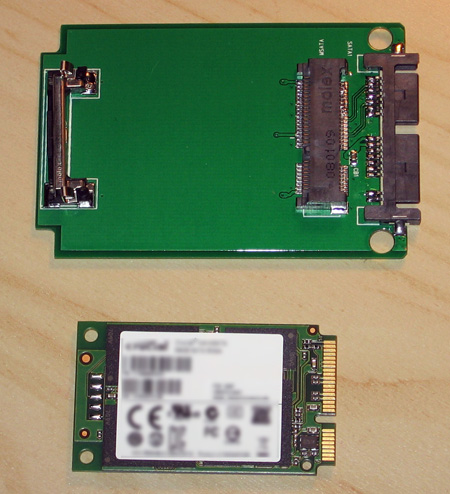

    There is a way of adding mSATA SSD to the main bay of T400s and T410s that use 1.8" HDD form factor: a mSATA to 1.8" SATA adapter, such as this one (also available here). I've tried with a T410s and the combo works well.

    [​IMG]

    Kaso, Nov 21, 2012
    #4
