    w530 Quad Display Options

    Discussion in 'Lenovo' started by marcelinox3, Jul 3, 2012.

  1. marcelinox3

    marcelinox3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    5
    So I just recently learned that the lenovo docks cannot display 3 independent external displays with the w530 as the 4th.

    One rep even told me that if I were to try to set up a quad display, that one of the displays would merely be a clone of what's on the laptop (unacceptable).

    Does anyone have a good work around for this?

    For example, what if I combine the lenovo dock with a ViDock4 ?
    Or perhaps a DynaDock3.0 ?
    Are these solutiions "overkill" when combined with the lenovo dock?
    Is there a more efficient/cheaper solution to be had?

    Ideally, I would like to just stick the w530 into the lenovo dock and have 3 independent external displays working along with the laptop as the 4th display, and then eject the w530 from the lenovo dock without any fuss.

    What do you think? Any help or suggestions on this matter would be greatly appreciated.
    Thank you very much.

    marcelinox3, Jul 3, 2012
    #1
  2. Thors.Hammer

    Thors.Hammer Notebook Enthusiast

    Reputations:
    982
    Messages:
    5,162
    Likes Received:
    33
    Trophy Points:
    216
    The W530 is supposed to have quad display capabilities. I'm pretty sure the rep is wrong.

    Thors.Hammer, Jul 3, 2012
    #2
  3. marcelinox3

    marcelinox3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    5
    I certainly hope so. I mean, one of the upgrades of the nvidia k2000m is supposed to be that it can do 4 displays, right?

    The only thing that irks me is that when I read about the lenovo docks, it says that it can only go out to 2 external monitors, not 3. And when the rep told me about that horrible clone thing, I was just peeved.

    I mean... what if he's right? I gotta find a solution if he is...

    marcelinox3, Jul 3, 2012
    #3
  4. greatrokr

    greatrokr Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15

    [​IMG]

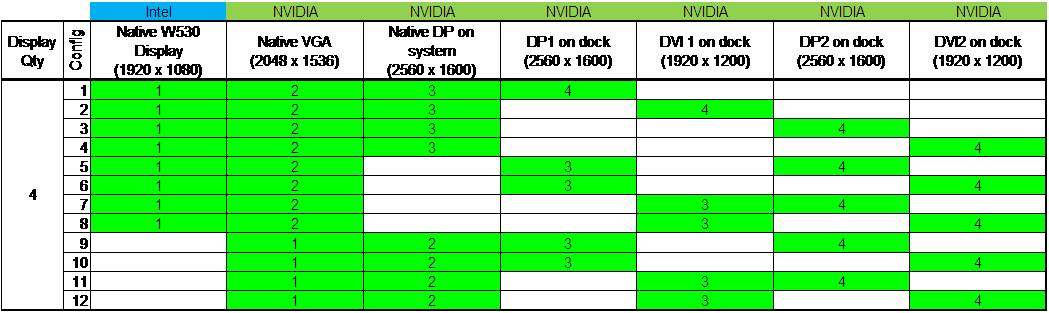

    it supports 4 displays. here is the chart from the w_series_product ppt.


    Attached Files:

    greatrokr, Jul 4, 2012
    #4
  5. Thors.Hammer

    Thors.Hammer Notebook Enthusiast

    Reputations:
    982
    Messages:
    5,162
    Likes Received:
    33
    Trophy Points:
    216
    It appears that chart is incomplete. It doesn't include the VGA port on the dock(s).

    Thors.Hammer, Jul 4, 2012
