MSI GT75VR 7RF my thoughts

Not exactly a review, just some pics and thoughts of my MSI GT75VR 7RF.

- Intel Core i7 7820HK
- GTX 1080 VGA
- 32Gb RAM
- 512 Gb SSD
- 120 Hz TN screen

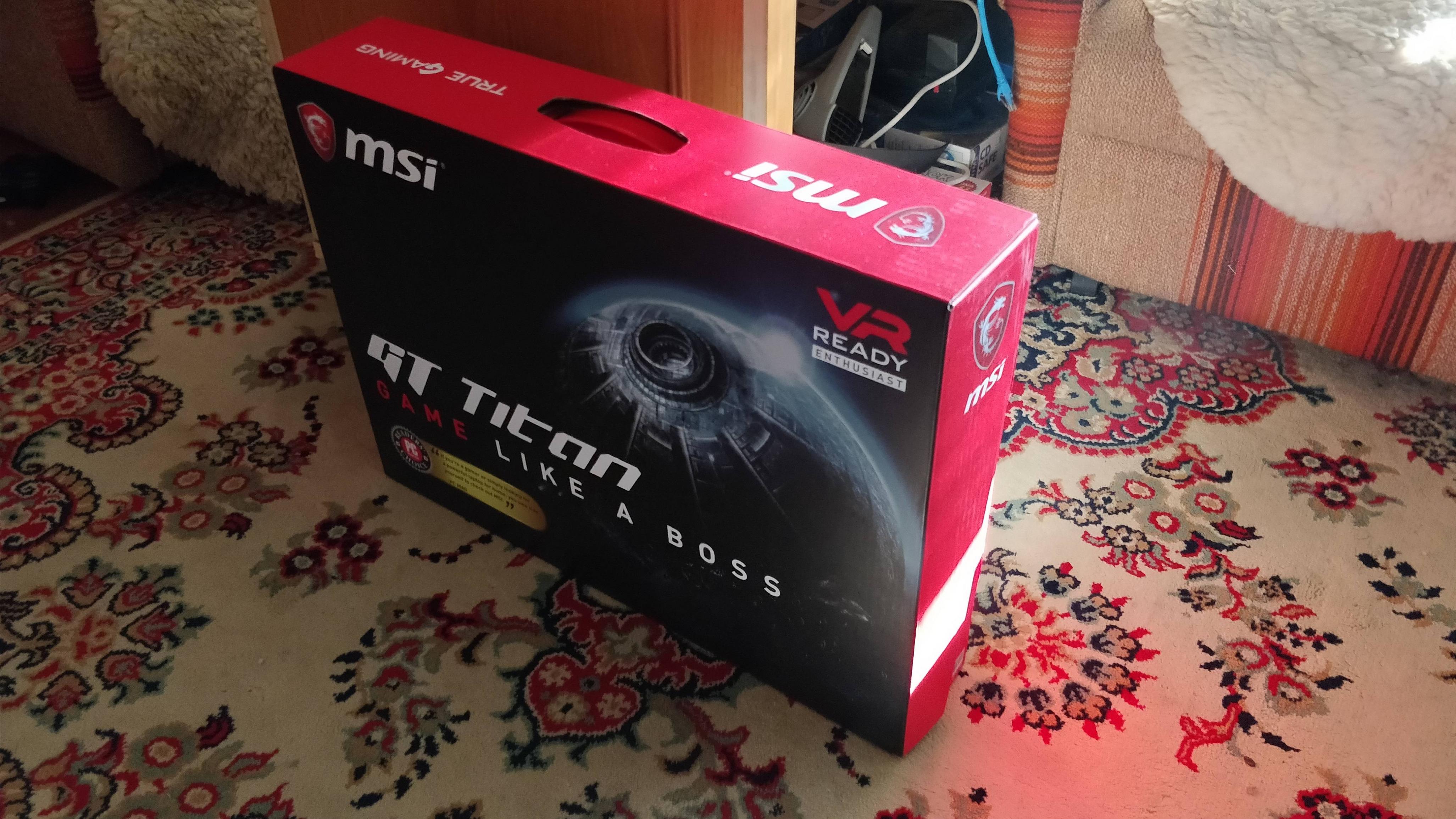

Box

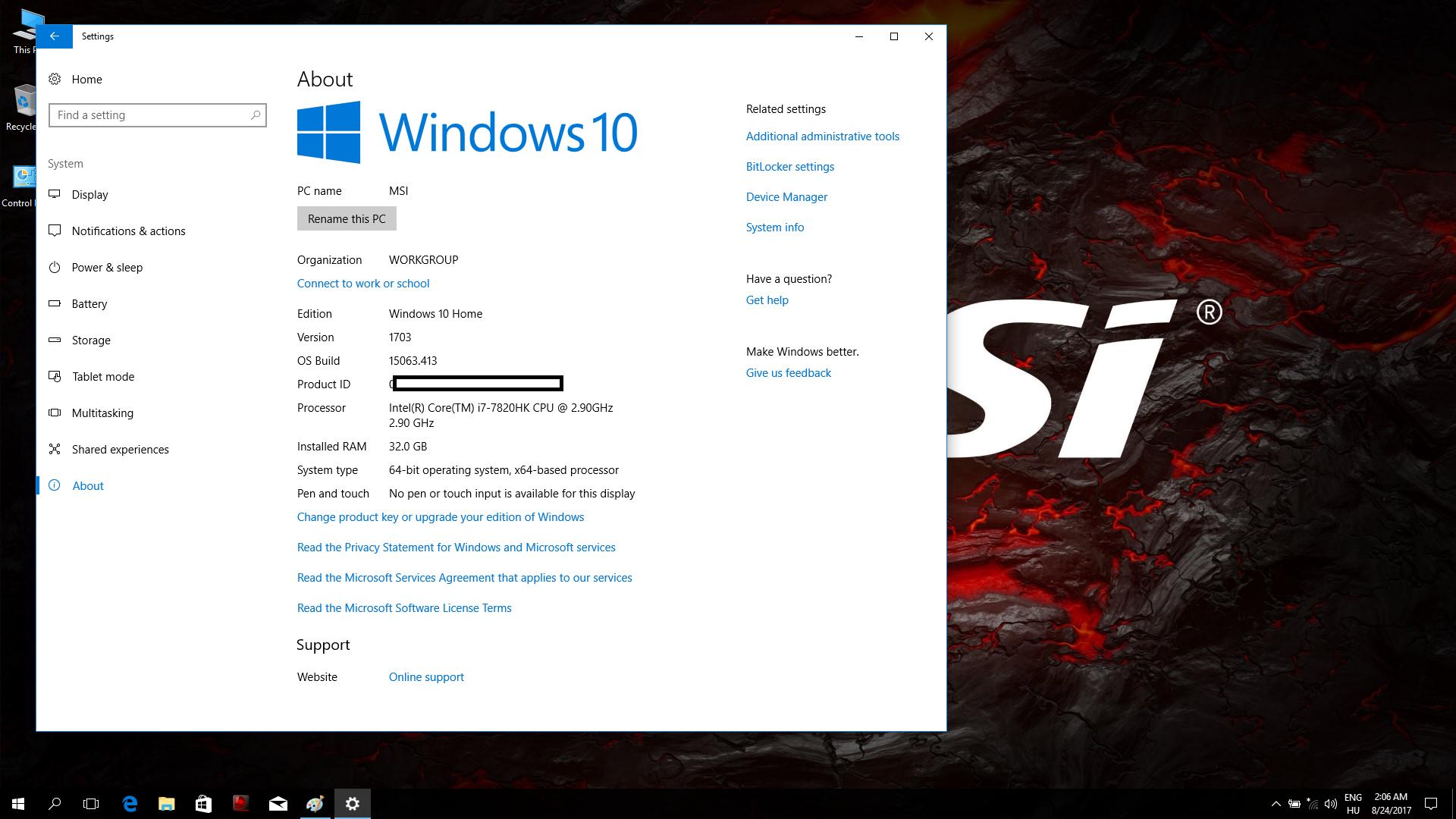

OS
The laptop comes with the latest Windows 10 version:

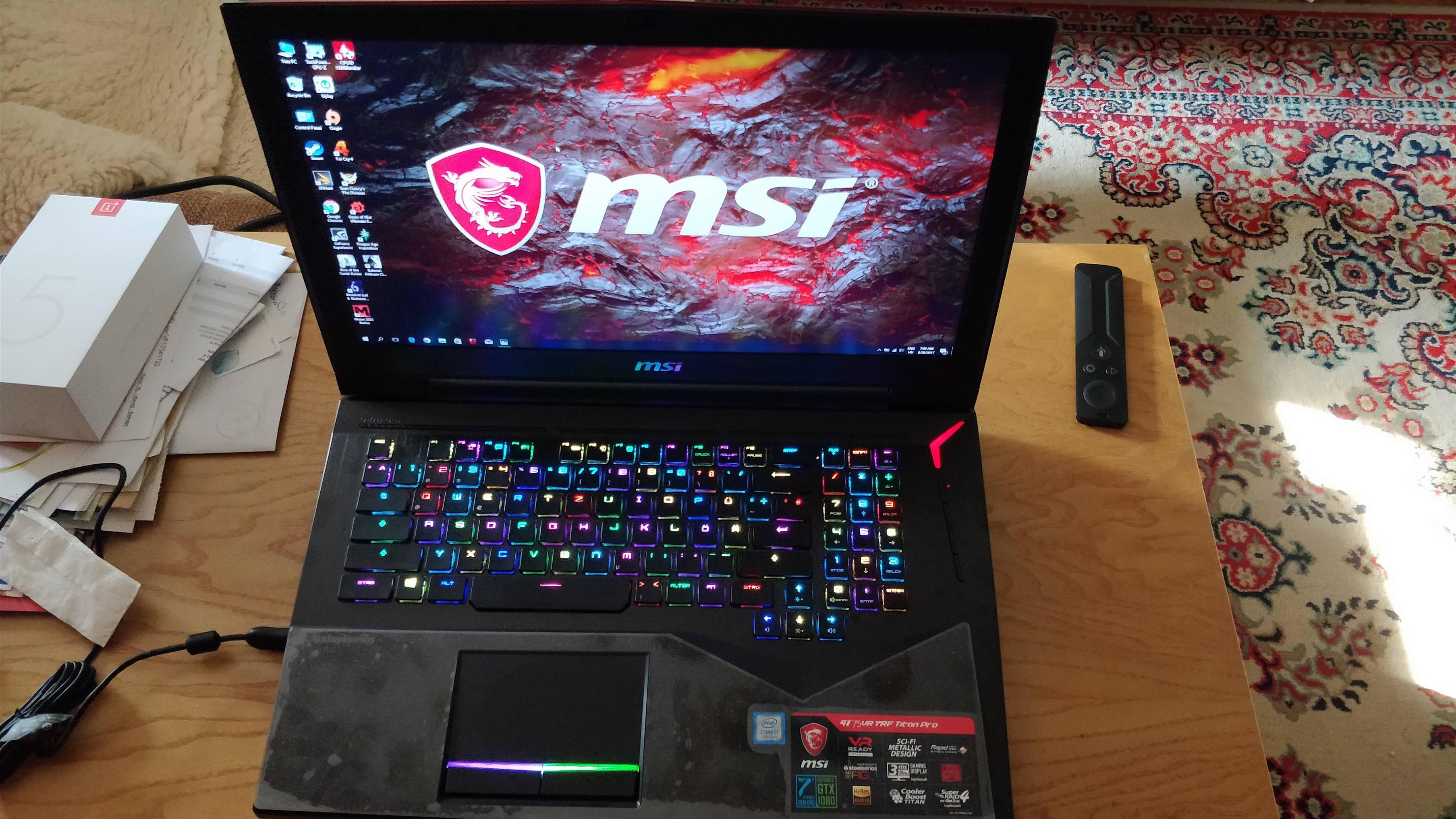

Keyboard

Mechanical keyboard made by Steelseries. It is good to the touch and the wrist support is also nice. Only con for me is that the keyboard lighting can not be changed and it is flashing like a Christmas tree all the time. I can turn it off but what is the meaning of backlight keyboard if I turn it off ?

Screen

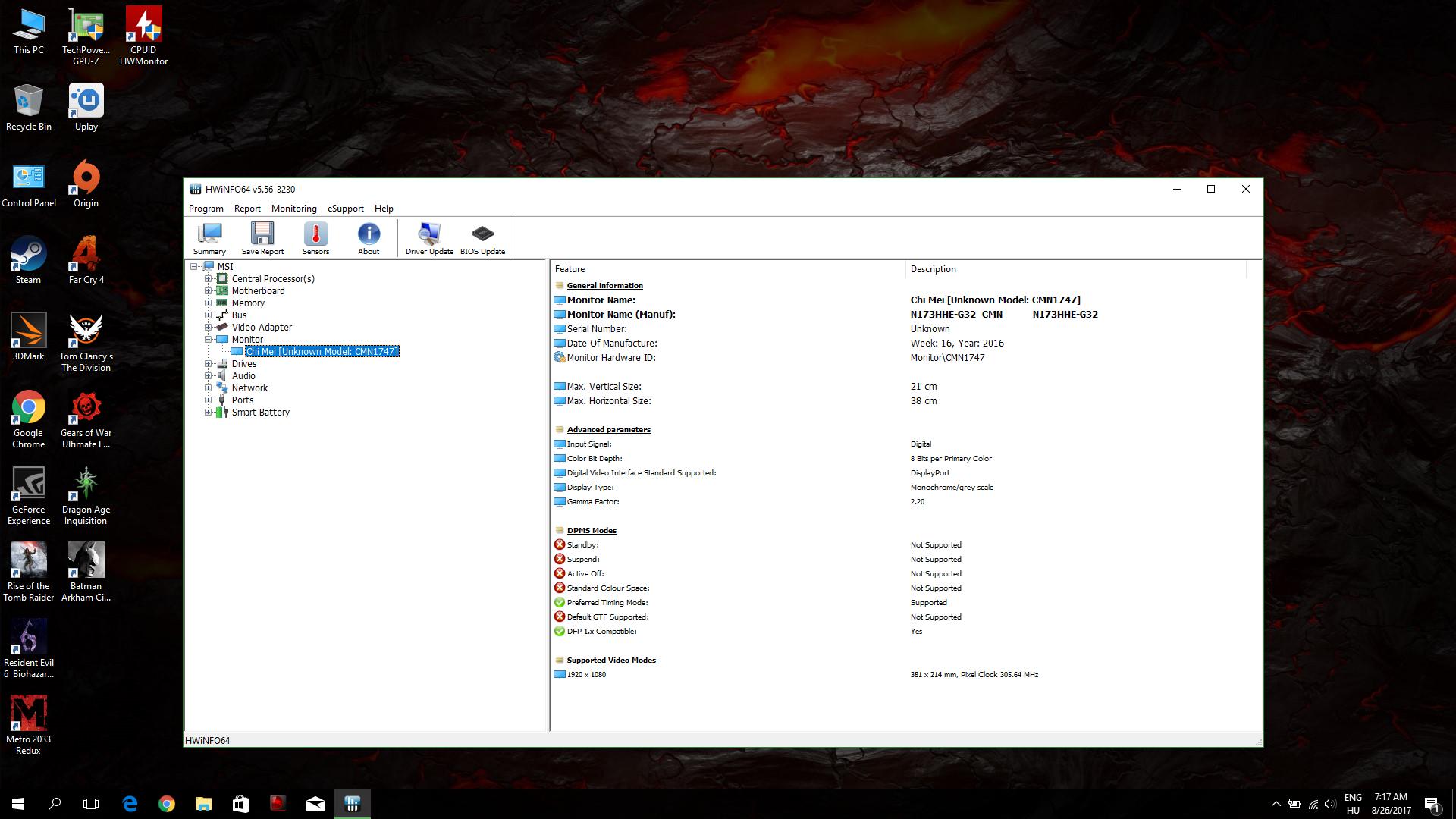

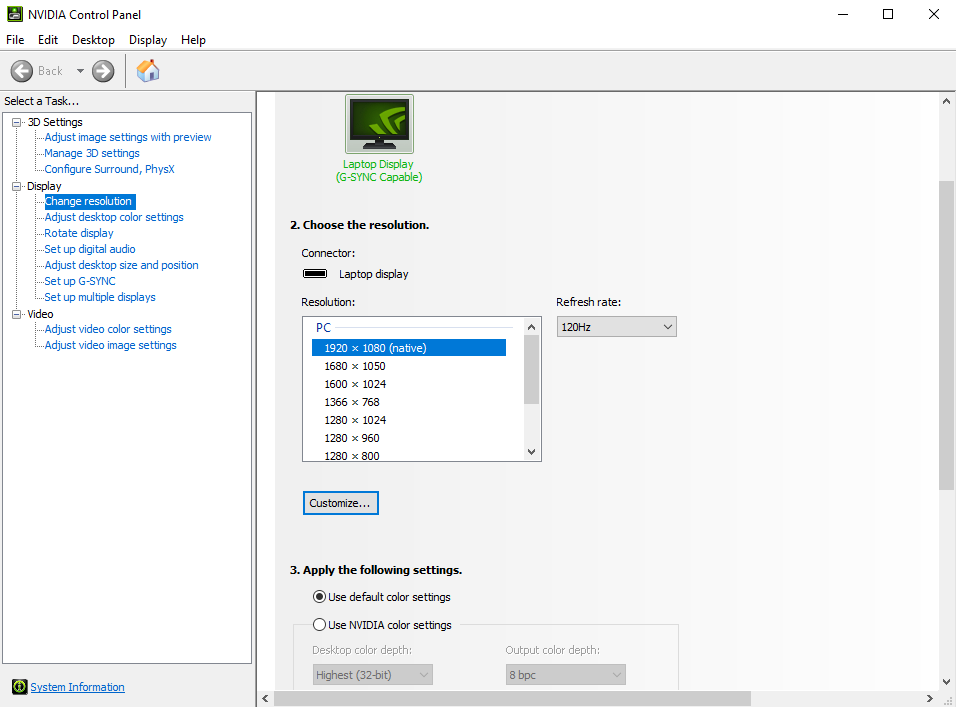

The screen is the same used in the GT73VR. Chi Mei CMN1747 120 Hz 5ms panel with G-Sync and 8-bit color depth.

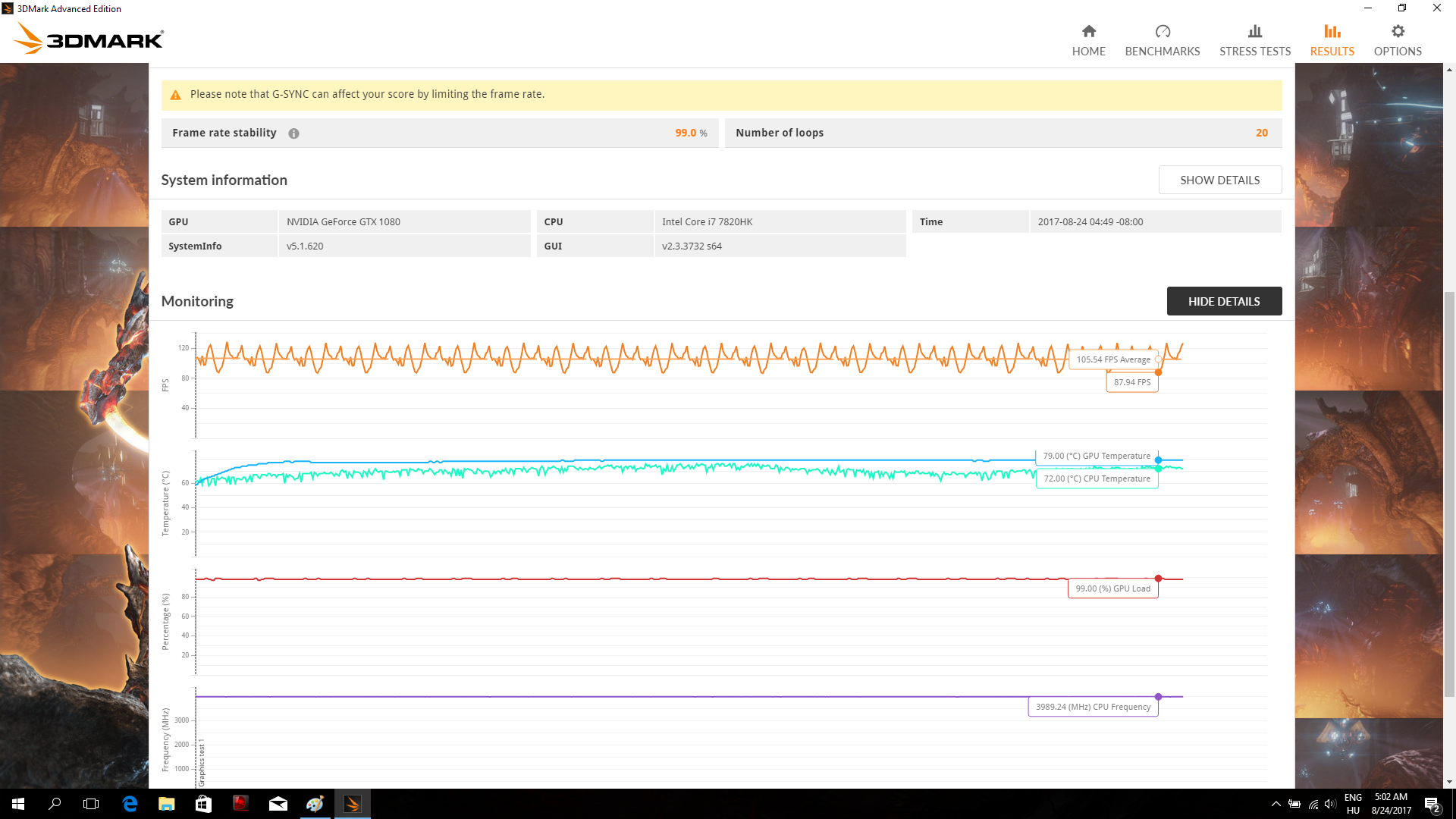

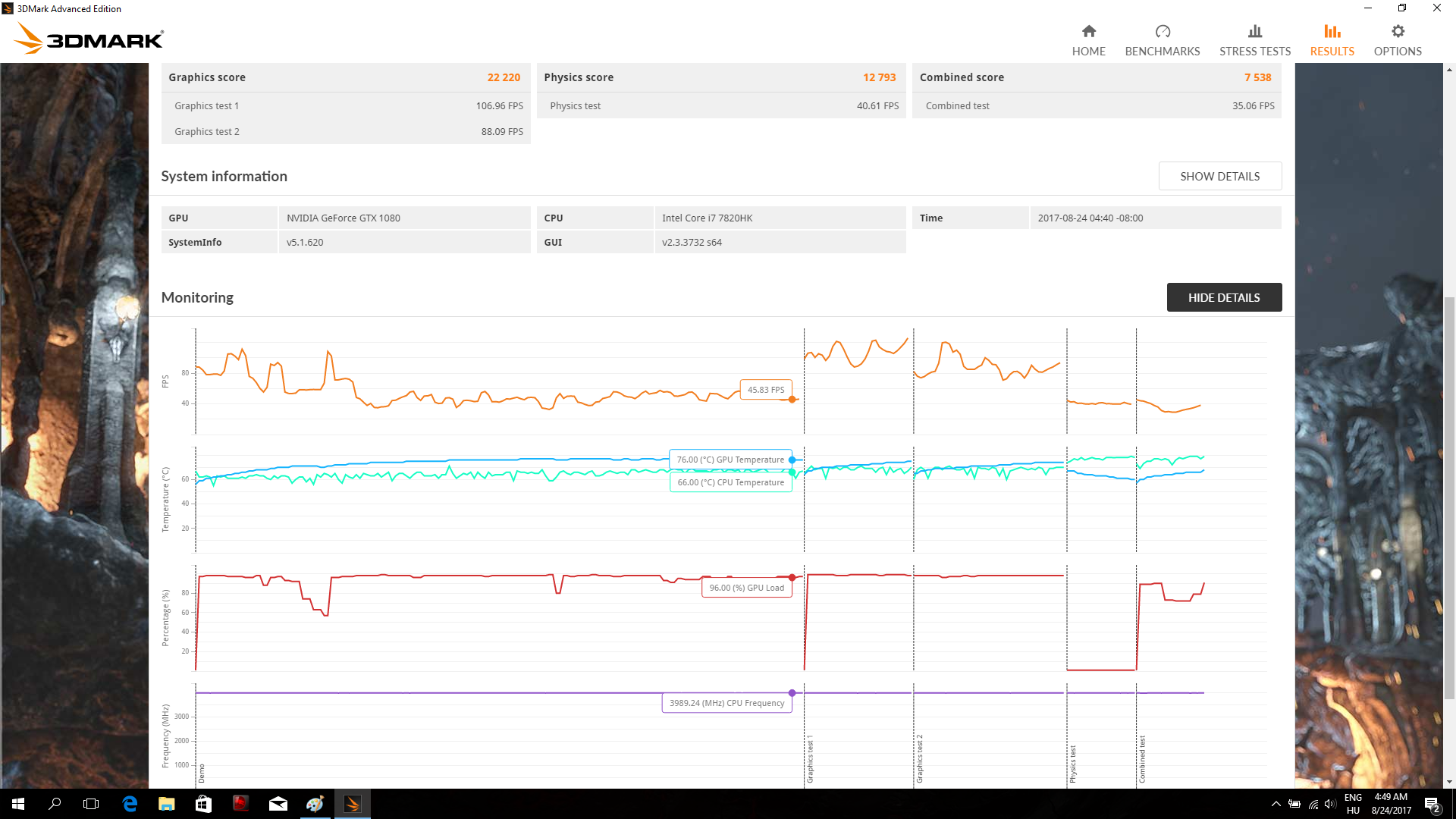

Temps & scores

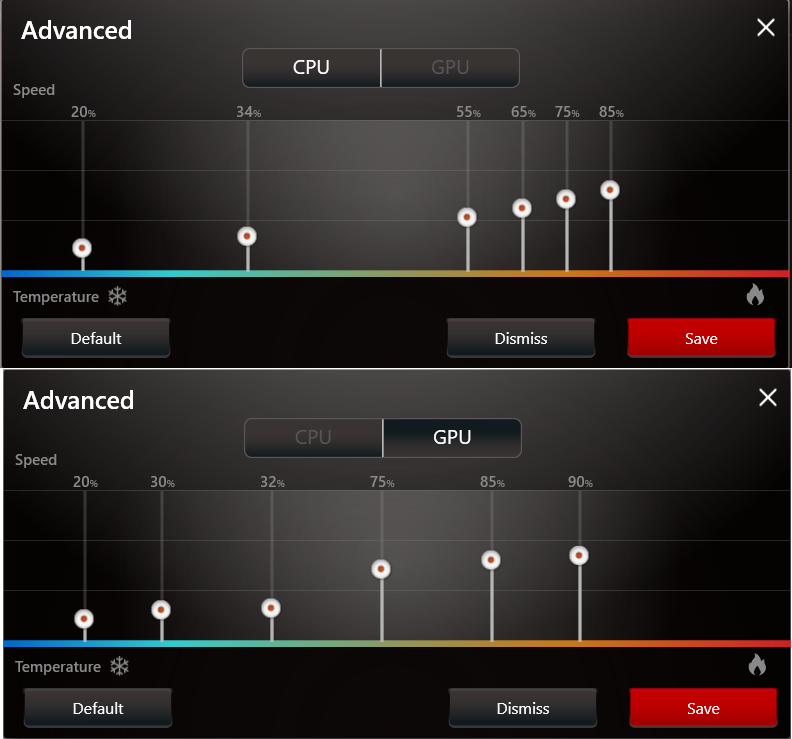

I used this custom fan curve for the following results:

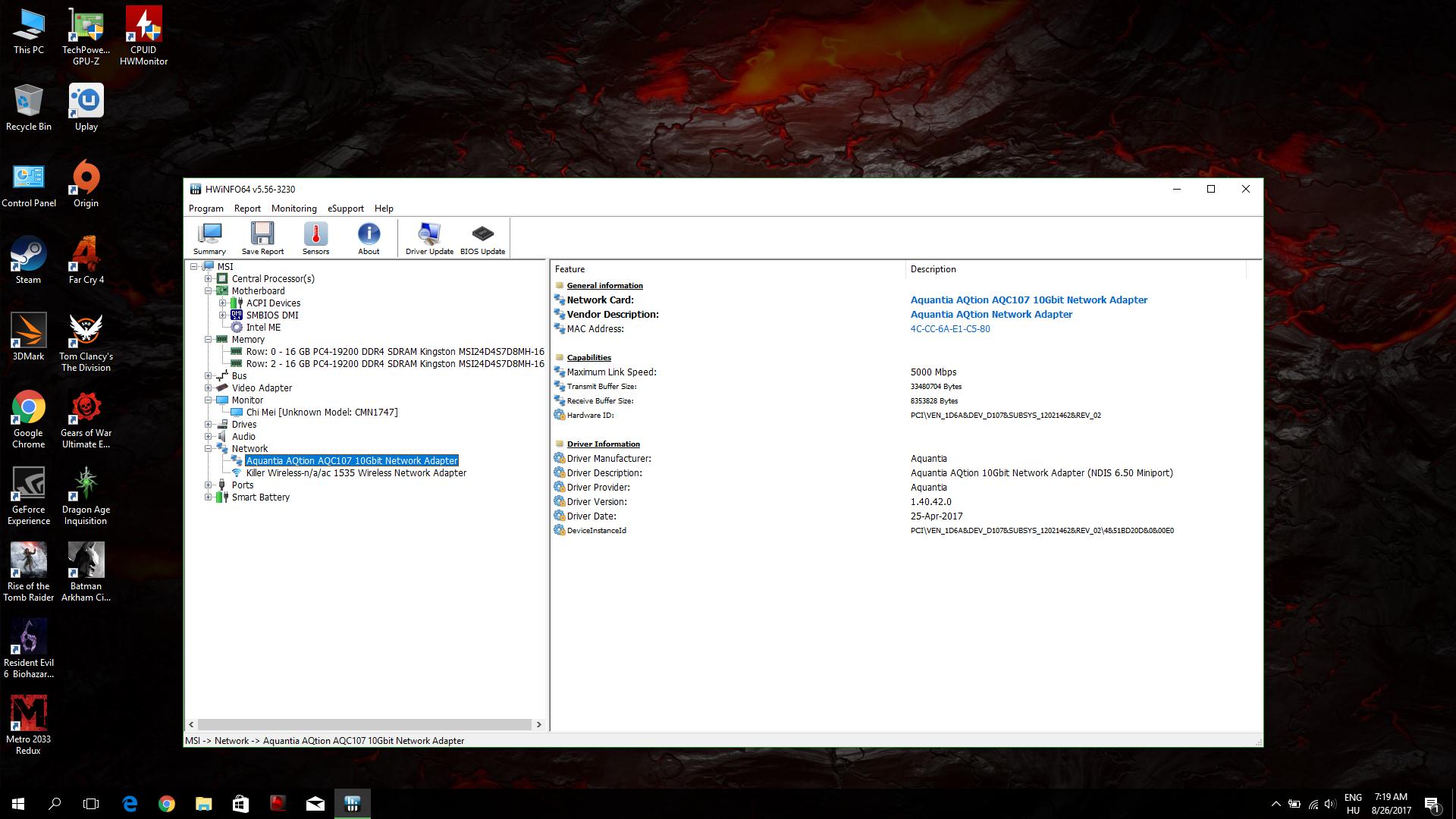

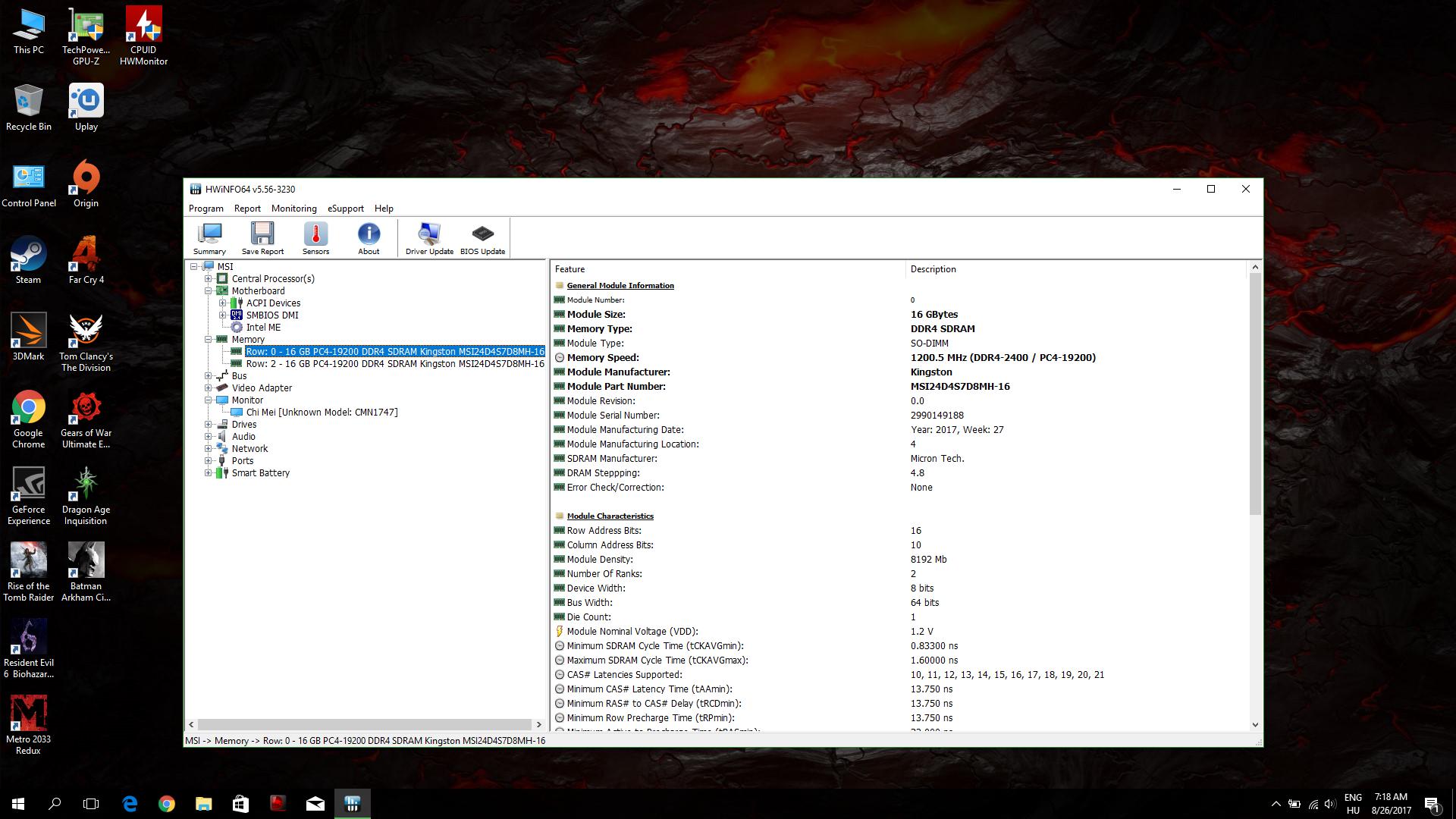

Memory and networking




Results:

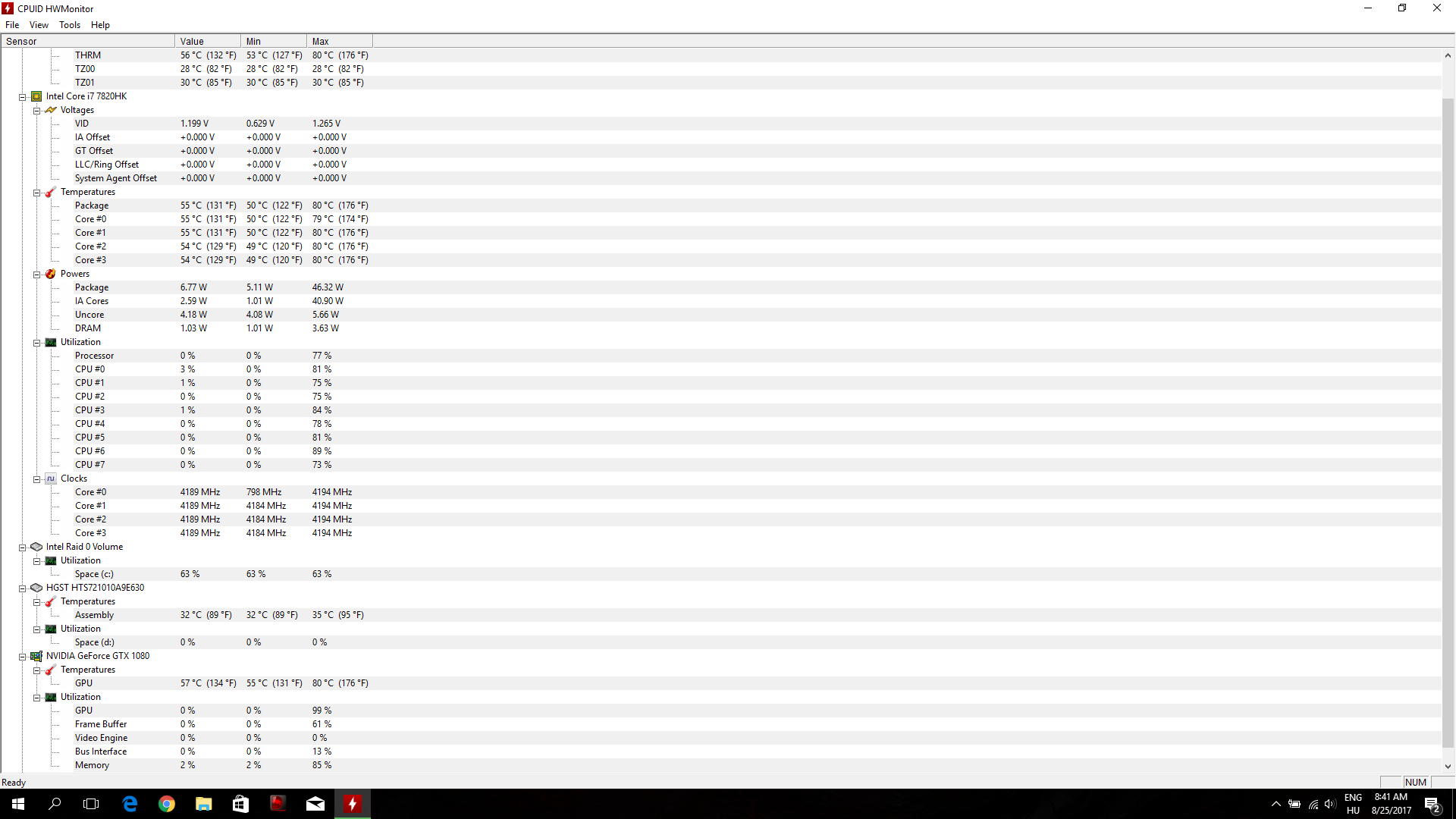

Temps after 2 hours of Rise of the Tomb Raider gaming


I do not post gaming results because it is the same as the GT73VR.

Cooling

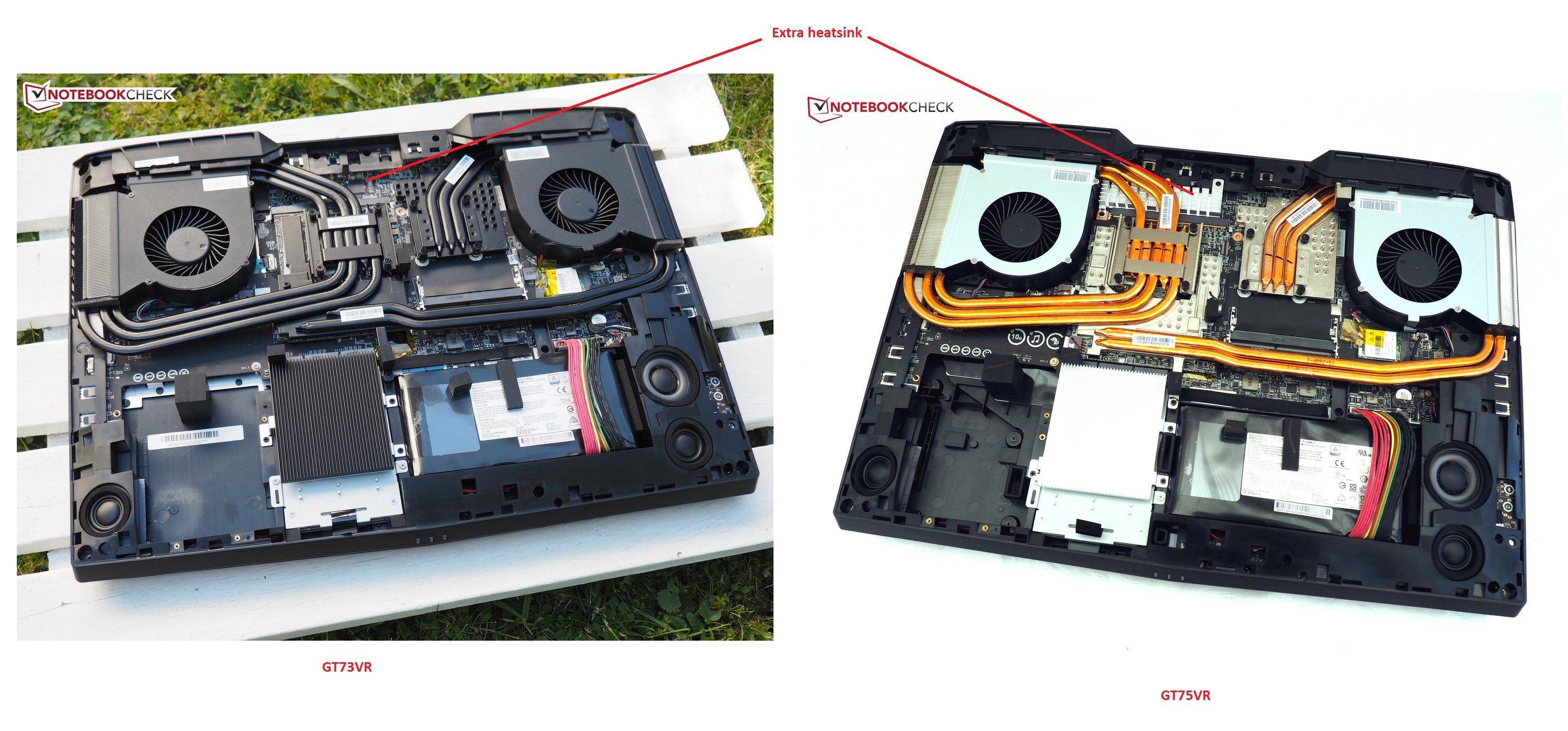

There are 2 differences inside which can catch people's attention.
1) MSI did not bother this time to paint the components, everything is in it's original color
2) there is an extra heatsink to cool some ICs on the motherboard to extend the GT75VR's lifespan

Maybe because of this extra heatsink, but GPU I had to run the GPU fan slightly higher (+5%) to get around the same results as I saw with the GT73VR.

Power consumption

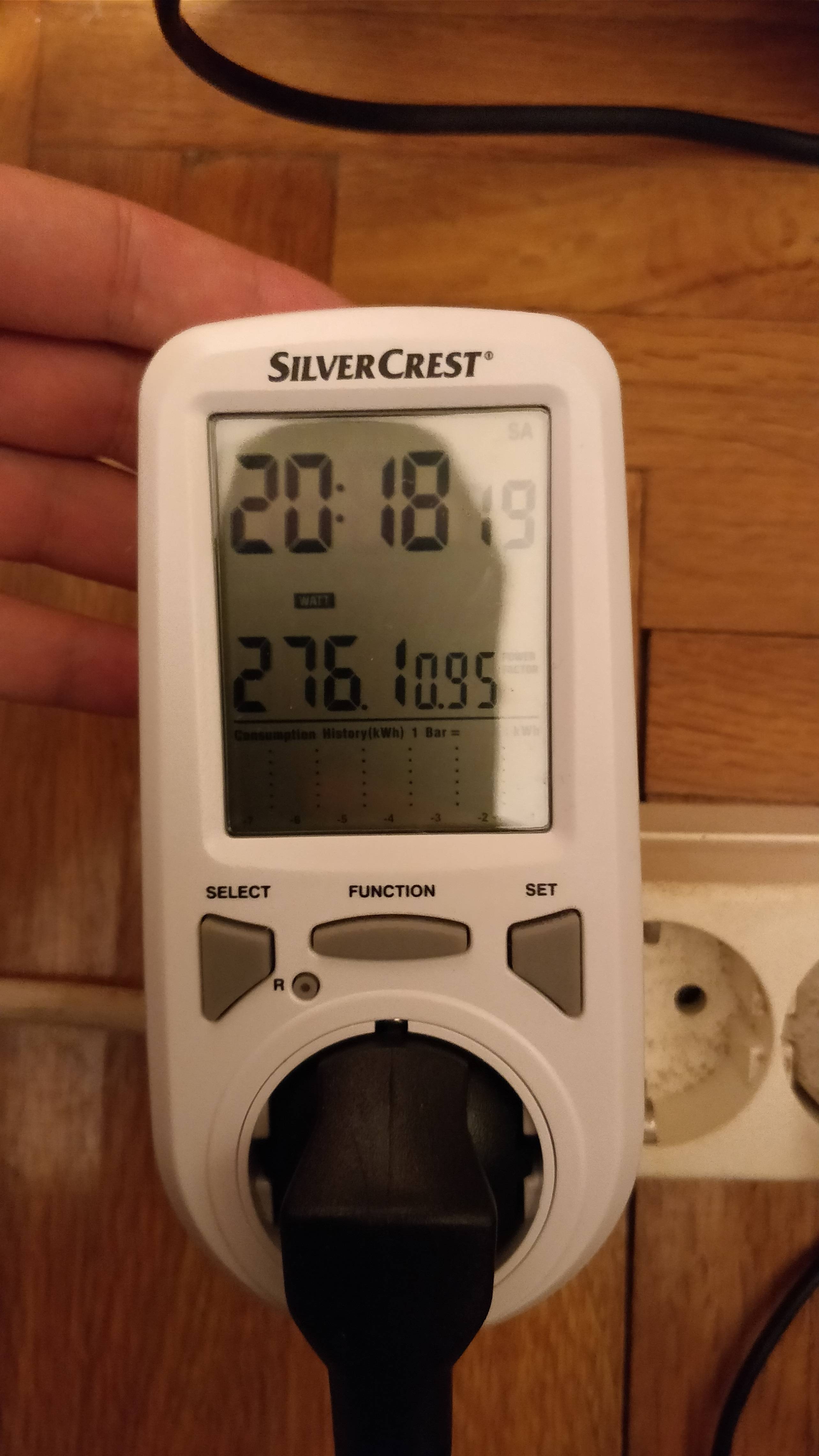

Highest power drawn from the wall socket while playing Rise of the Tomb Raider:



As you can see there are some minor differences compared to the GT73VR, but the biggest is the mechanical keyboard. Not counting this we might say that the GT75VR is a slightly "patched" GT73VR 1.1 version. Does this worth the extra $$$ ? You decide.



That picture on the left is from the 1070 GT73VR (7RE) not the 1080 (7RF); The heatsink and VRM heatsink are different. I mentioned this in several other posts already. You need the other picture if you want the 1080 version. Notebookcheck incorrectly used the 1070 picture on the 1080 review, probably assuming they were identical.

Some bizarre stuff in the EC firmware that isn't in the 73's one:
clearly related to that ESS Sabre Stuff, but why? How?

TI_OK2.TI_OK1.TIvEr:.TIv_OK4:.TIv_OK3:.TIv_OK2:.TIv_OK1:.ESS_OK2.ESS_Err:.ESS_OK1.HP_PCM1.HP_PCM_Err.HP_PCM2.HP_DSD1.HP_DSD_Err.HP_DSD2.SP_DSD1.SP_DSD_Err.SP_DSD2.SP_PCM1.SP_PCM_Err.SP_PCM2.DSD_Vol.PCM_Vol.CT_OFF



Gentech review of the 6RF with GTX1080:


No extra heatsink there either.



You can change the RGB keyboard to whatever color you want. They don't need to be flashing all of the time.

Sent from my SM-G955U using Tapatalk



Where ?

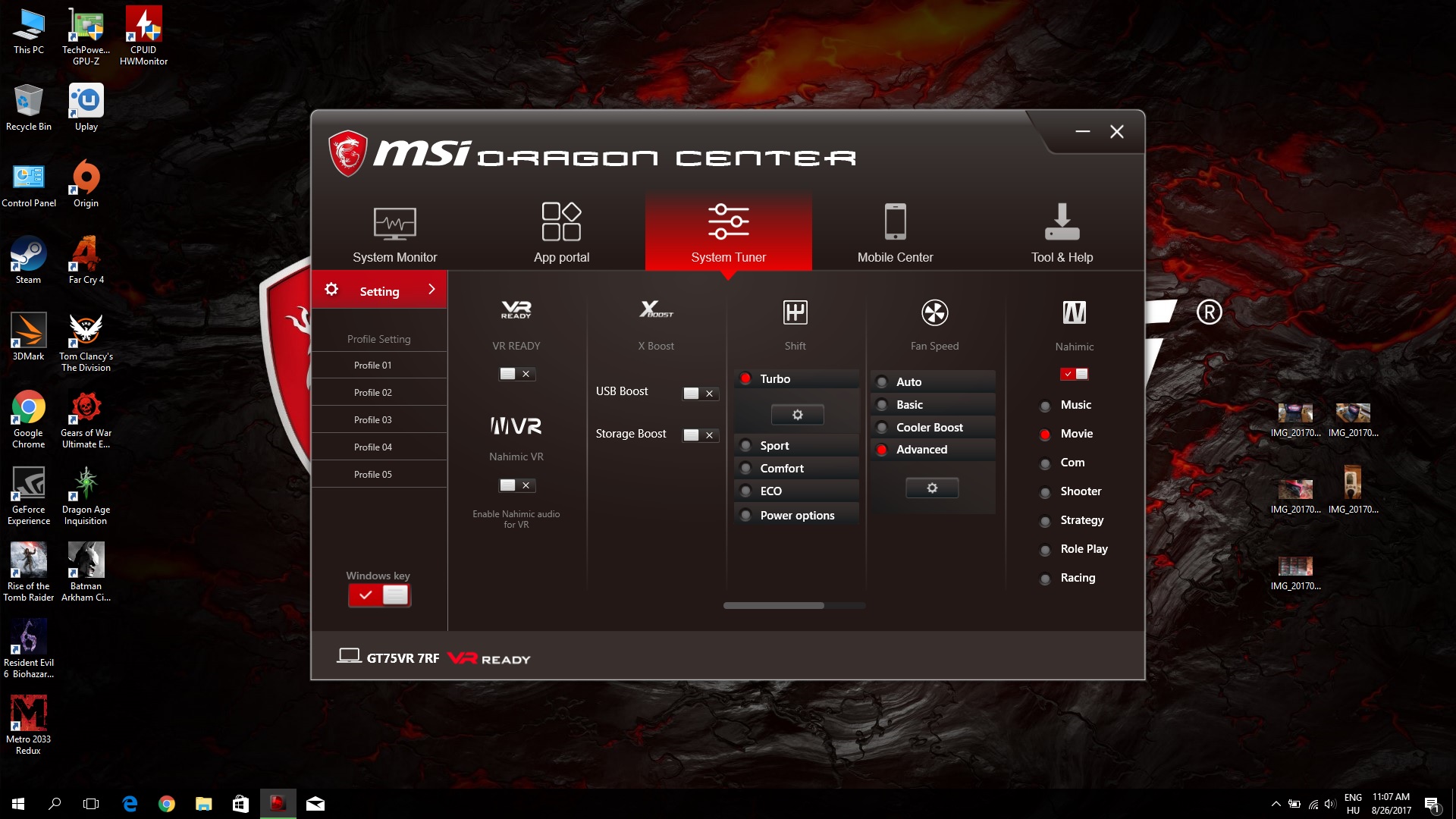

The settings are in the Dragon Center.

Sent from my SM-G955U using Tapatalk



My question is the same..where ?



Steelseries keyboard engine .....not dragon center....



Sorry OP. Yes, they are in the Steelseries app.

LOL. I couldn't imagine if the "disco" setting was the only back light available. Haha

Sent from my SM-G955U using Tapatalk



Found it, thanks !



To no surprise this panel also has the same manufacture detect that all other Chi Mei CMN1747 panels have.



What defect is it?

Sent from my SM-G955U using Tapatalk



Yeah what defect is that? @DRevan
And this supposed to be a "3ms" screen. Is that a complete lie? Or is it some overdrive trickery in the Bios ?



By "all" I mean the ones I encountered (11 panels in total).

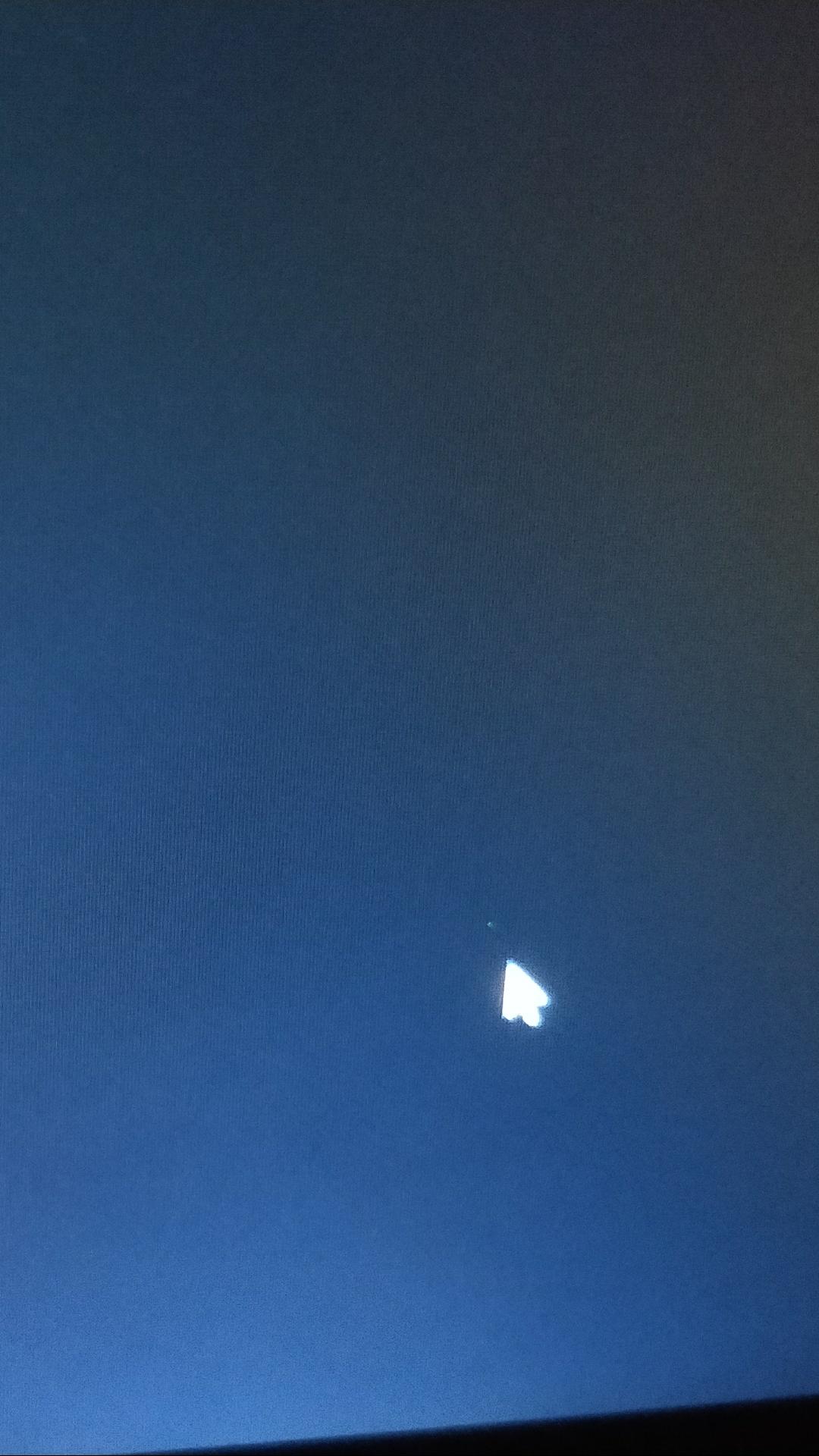

They all had it at a different spot, but the issue was the same, at certain view angles there was a green dot lighting up under black background.


At some cases it was hard to spot and most people would not even spot it, but at some cases it was easy to see it and it was annoying.

My laptop was from Germany and after checking the German website of MSI the reason is now clear why did I and Notebookcheck receive a model with 5 MS screen. In Germany MSI sells this laptop with 2 types of 120 hz screen, the 5ms Chi Mei Panel and the unknown New 3 ms panel.

In the US according to the MSI website all models are equiped with 3 ms panel only.

Would be nice to check this and see the actual name and model of the panel.



Maybe it has a dead pixel?

Sent from my SM-G955U using Tapatalk



Dead pixel should be visible from all angles.
My tip is that its a dust particle.



Maybe Like a screen bleed problem



The difference between 5ms and 3ms on the MSI GT models is a different revision of the same model number. The model number hasn't changed, but the latest revision is 3ms.



Shouldnt the new revision support HDR (10bit color) ?
Also, did they not change the manufacture date neither?



Where's HDR configuration feature in gt75vr?



Yes, the

Yes, the GT75VR does support HDR - see http://www.pcworld.com/article/3205...-end-hdr-display-tech-to-a-gaming-laptop.html

Don't know about the manufacturer date...but again, I am only dealing with the US market source.

Edit: Check your revision...Rev. C2 is 5ms, C3 is 3ms



Hopefully the same trick with the EC window with RW Everything will work on the GT75VR.



Yummy, I don't see much video reviews for the past few months since its release.



http://forum.notebookreview.com/threads/msi-gt75vr-7rf-titan-pro-review-by-zkst.809310/

My HWInfo shows the Chimei screen as Unknown. I'll post it later.



Ok, so the only way to be sure may be to remove the screen and look on the back for the model number and Rev: #



FYI. 17.3" 3840 X 2160 4K TN @60Hz LED Anti-Glare



One or two power bricks?

That tiny speck could be the manufacturer's signature.



Double post.



Mine just arrived and it had that damn green dot in the middle 2/3 of the lower right corner. It massaged right out and hasn't come back (knock on wood). That would have been a deal breaker had that remained, since it was bright neon green.



Then you were lucky because that was just a stuck pixel

Enjoy your beast!



HDR testing on the way?



Can't wait..



I still have no idea how to enable and unable it to see the difference...


Sent from my iPhone using Tapatalk



please explain to me on how to test the HDR and I'll be more than happy to. Running 4k HDR content on youtube on the GT75 and my old GT80 looks fairly similar. The colors are more vibrant on the GT75, but there isn't a huge change.



Try Netflix, they have some HDR Content. Both the 75VR and the GT80 is the same TN panel so if the 75VR is more vibrant then that is probably the effect of HDR enabled.



For my GT75VR, it says HDR not supported. On close inspection, MSI is not really providing an HDR display on their laptops but a display which is as vibrant as an HDR one. This can even be checked on the MSI site as it does not explicitly mention anywhere that it's display is HDR



That is disappointing. Although with a display of that size, I do not believe it will make a huge difference. Now a 50+ inch display is a different story.
