[TEST] GP62MVR - Liquid Metal Grizzly Conductonaut

So I saw the post http://forum.notebookreview.com/threads/test-ge72vr-liquid-metal-grizzly-conductonaut.804983/ about [TEST] GE72VR - Liquid Metal Grizzly Conductonaut

And here is my try for MSI GP62MVR.
Steps:

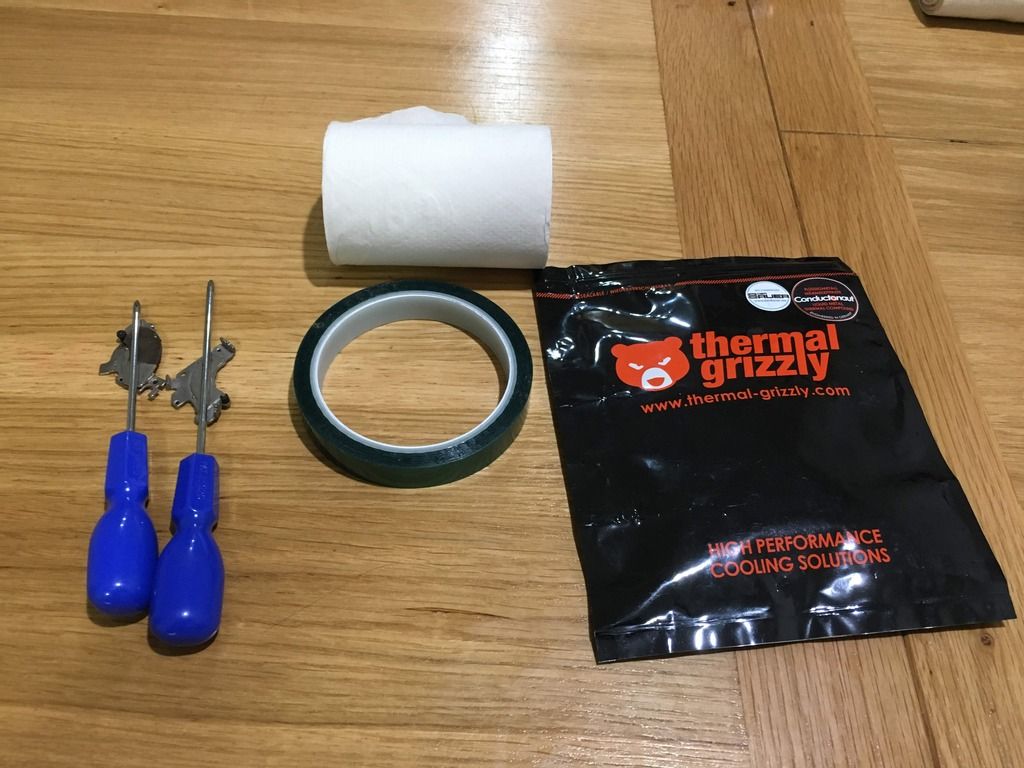

1 - Preparation

- Screwdrivers
- Soft tissue: to clean old thermal grease and fans
- Old toothbrush: to clean fans
- Kapton tape: non-conductive and heat resistant to protect the cpu from LM
- Liquid Metal Grizzly Conductonaut set

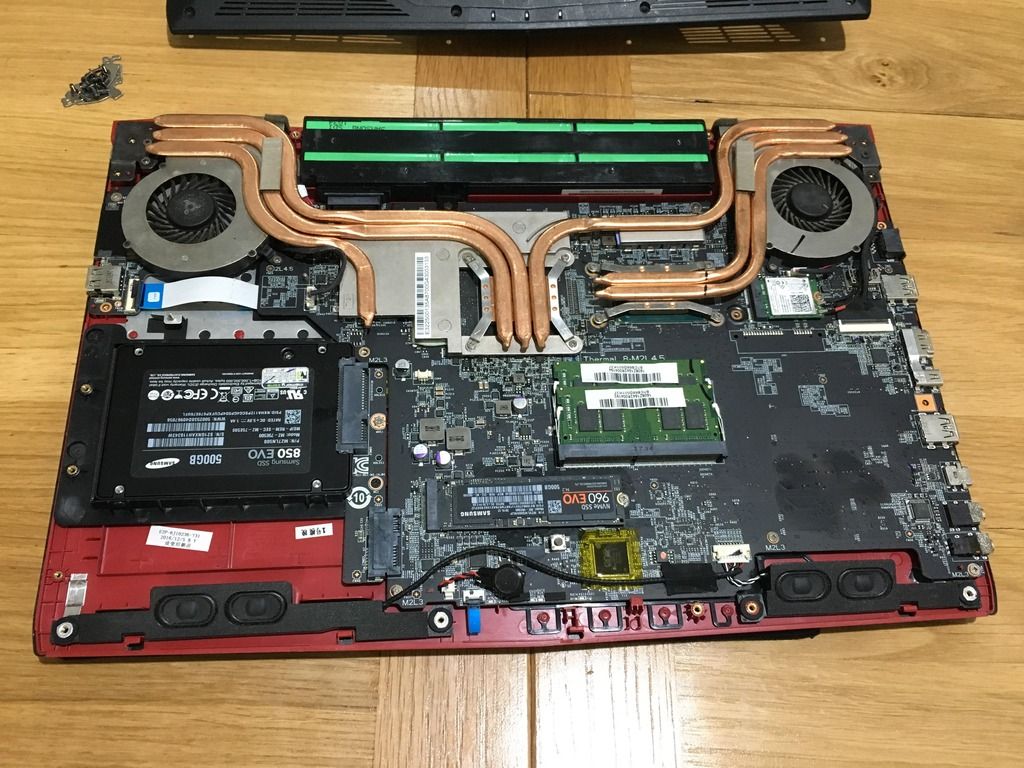

2- Open laptop's back panel

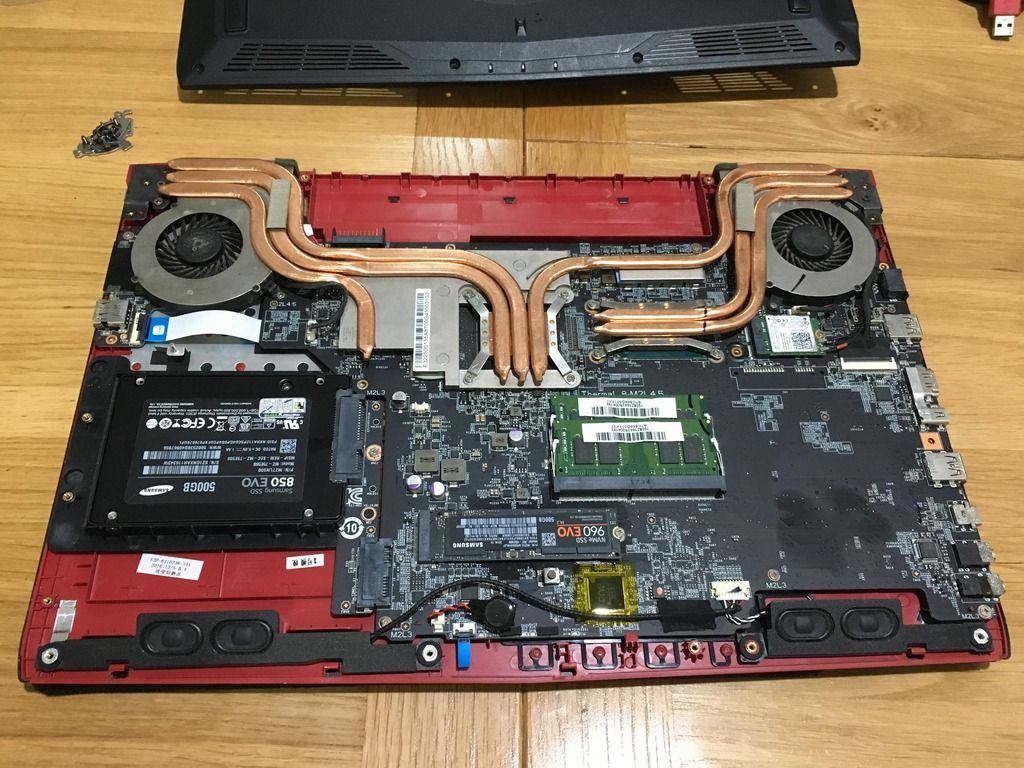

3- Remove the battery

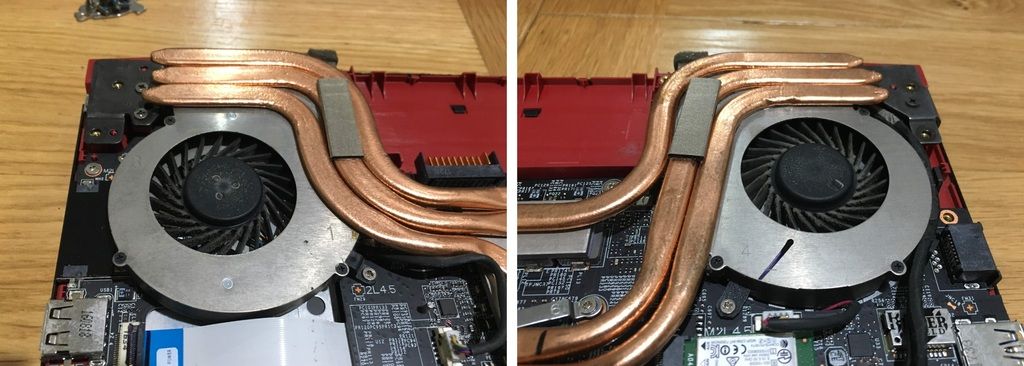

4- Checking fans (dusty)

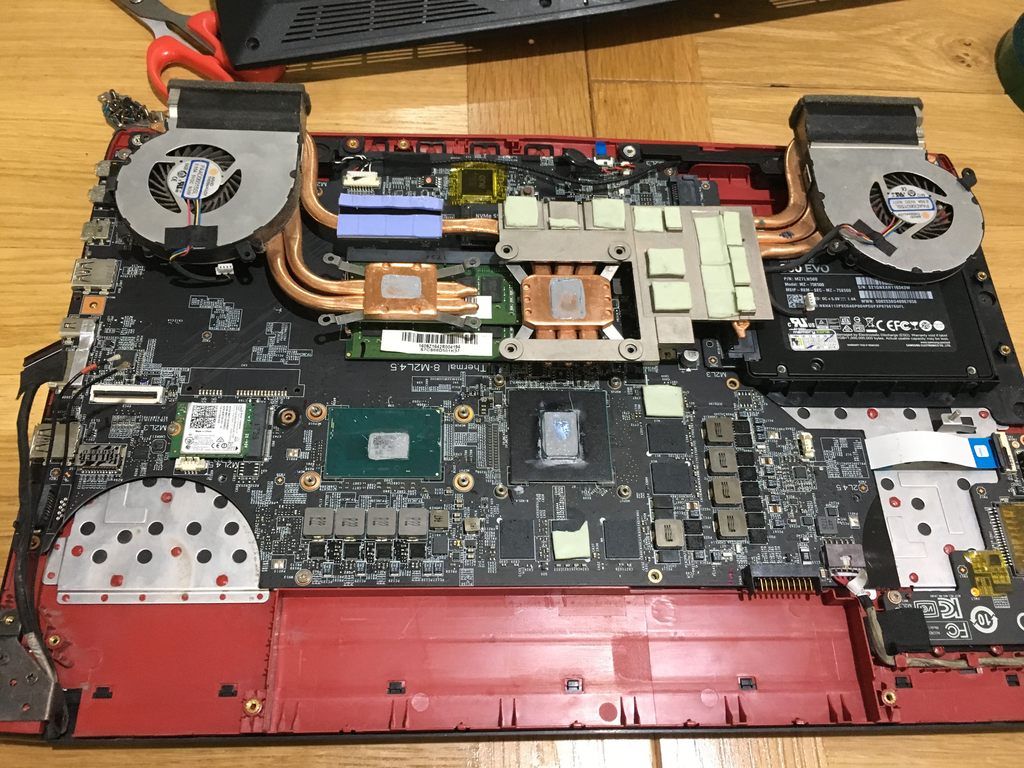

5- Removing cooler set

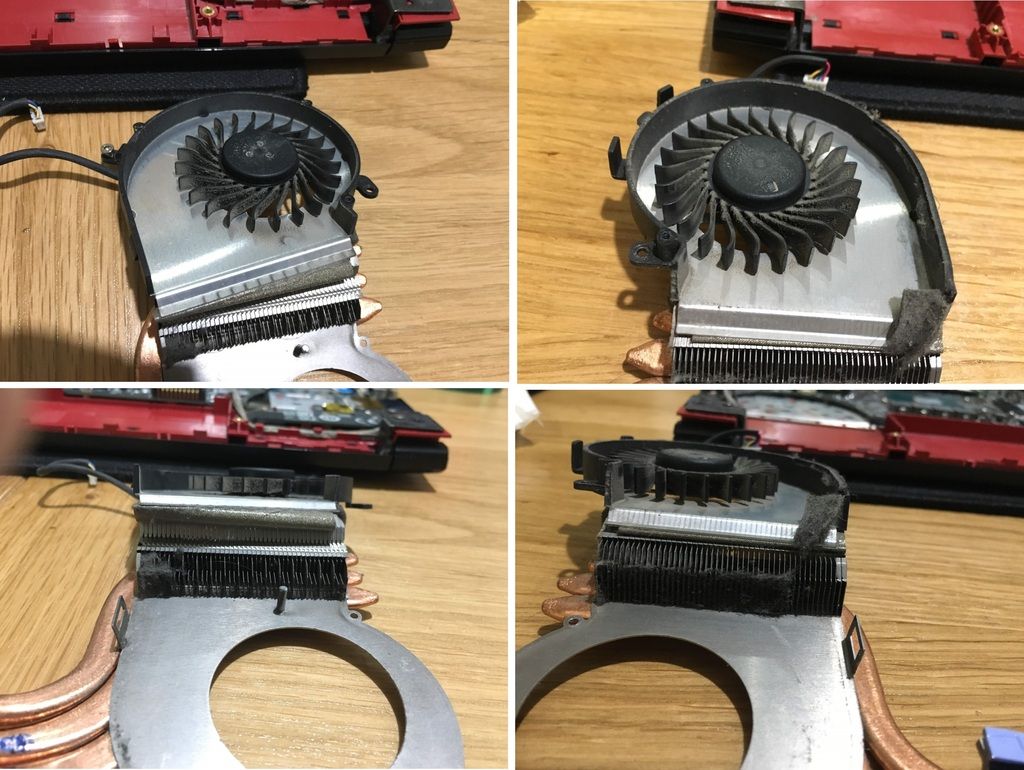

6- Opening fans

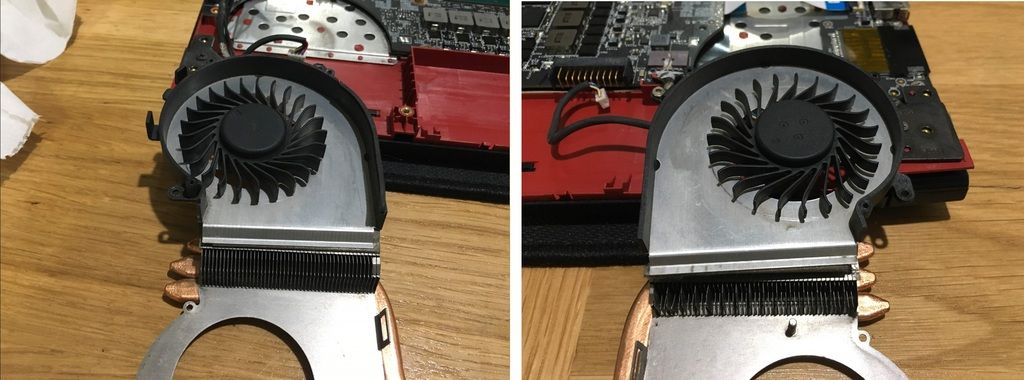

7- Fans after cleaning

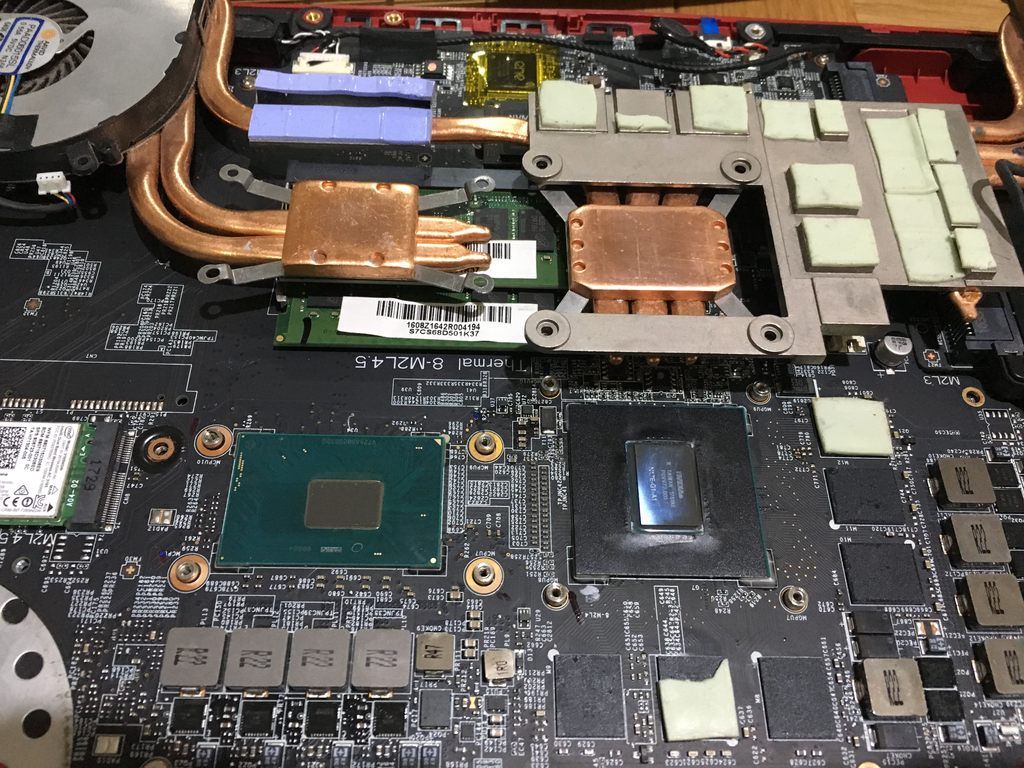

8- Cleaning CPU/GPU surface and heatsink

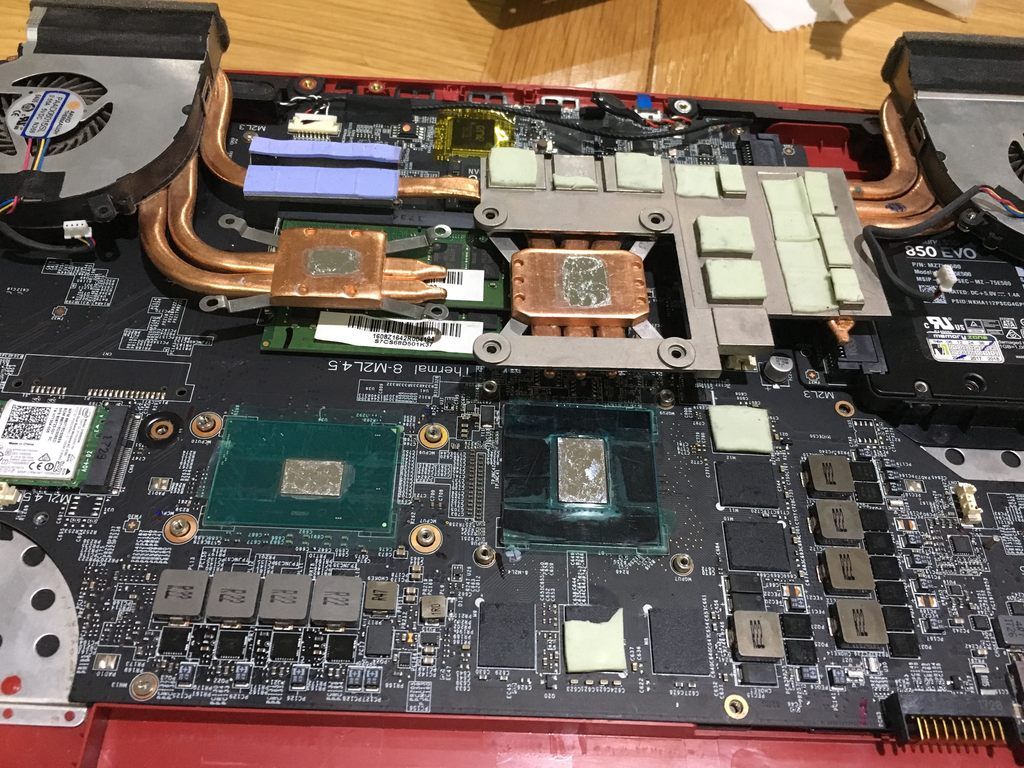

9- Applying kapton tape. Pasting LM on CPU/GPU and heatsink


This is the graph of full load test of my laptop before applying LM (I was using arctic MX-4)

As you guys can see. The temp of my CPU was always above 95oC and CPU Throttling max 56%.
(I could even cook egg with this)

AND this is the graph of full load test after applying Liquid Metal

CPU temp is just around 80oC, 20oC lower.
This is fantastic and I'm really sastified.


Thanks to the forum and Mr.Deft's thread, i can finally rest my palm on the palm rest area ; )



Very nice, and excellent job completed.



Great instructional. Good job
