    GX780 GFX upgrade

    Discussion in 'MSI' started by canada2005, Oct 3, 2011.

  1. canada2005

    canada2005 Notebook Enthusiast

    Reputations:
    30
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    15
    Well I cheated out and got the GX780 which came with the gt555m. Someone said that these have the 555m soldered to the motherboard. They do not:
    [​IMG]

    This 555m is not cutting it for games I play so would it be possible to get a 560m or even a 570m(if they even sell them yet)

    Here is the heatsink which looks like it works for the 560m already.
    [​IMG]

    I also have a Vertex 3 or Vertex 2 that I will be using in the second hard drive bay once I find where I can buy the bracket. Might keep vertex 2 in desktop depending if it works or not.
    [​IMG]

    canada2005, Oct 3, 2011
    #1
  2. xault

    xault Notebook Consultant

    Reputations:
    118
    Messages:
    265
    Likes Received:
    0
    Trophy Points:
    30
    GenTechPC's Channel - YouTube

    Check out the above video at around 5 seconds.

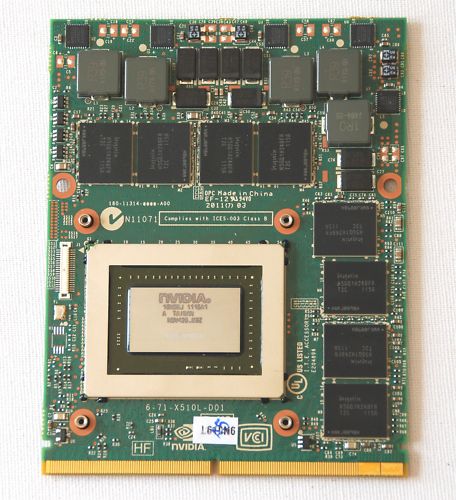

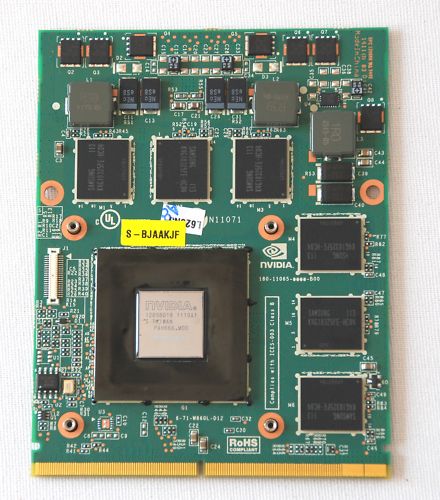

    From what I can see from the top view (of the heat blocks), it's pretty much the same setup. And the GT780DXR model has the GTX 570M, but I don't think they're for sale separately yet. Also, your heatsink may line up incorrectly with the GTX 570M, and I can already see that it won't fit a 580m. As you stated, it would fit the 560m, but I can't guarantee that it would work. It would be hard to get a modded heatsink (at least for a 580m) as MSI custom makes theirs. You would have to wait until MSI releases a proper heat sink. Take a look at the 560m and 580m photos below. I couldn't find a 570m photo.


    Attached Files:

    xault, Oct 3, 2011
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    A DXR heatsink would fit the 580M, that would be beastly, your machine with that heatsink will take a 560M no problem.

    You also need the little PCB that has the slot on it if you want a second HDD/SSD.

    Meaker@Sager, Oct 6, 2011
    #3
  4. canada2005

    canada2005 Notebook Enthusiast

    Reputations:
    30
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    15
    I actually have that little pcb. I had to remove it to be able to get the video card out.

    Would love to get a 570m but I doubt that I would have enough to power it. Think I have a 150w brick and the DXR has a 180w?

    If I had only waited a week before that DXR was released here in Canada(and my cheapness)

    canada2005, Oct 6, 2011
    #4
  5. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    You can get a 180W power brick for around $50-80 i think

    long2905, Oct 6, 2011
    #5
  6. canada2005

    canada2005 Notebook Enthusiast

    Reputations:
    30
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    15
    Update: Well I just took out my gt555m and replaced it with a new gtx560m. It is working great! The bios from the GX780 now shows that it is a GT780, so the bios between the two are the same.

    canada2005, Oct 21, 2011
    #6
  7. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    Congrats :D

    long2905, Oct 21, 2011
    #7
  8. Moses2000

    Moses2000 Notebook Geek

    Reputations:
    10
    Messages:
    98
    Likes Received:
    4
    Trophy Points:
    16
    Has it made much of a difference for your gaming?

    Moses2000, Oct 21, 2011
    #8
  9. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    Id be surprise if there isnt much different

    long2905, Oct 21, 2011
    #9
  10. Captain Razer

    Captain Razer Notebook Evangelist

    Reputations:
    31
    Messages:
    517
    Likes Received:
    0
    Trophy Points:
    30
    do you want to sell your GT555m?

    Captain Razer, Oct 21, 2011
    #10
  11. Rami

    Rami Notebook Consultant

    Reputations:
    17
    Messages:
    197
    Likes Received:
    0
    Trophy Points:
    30
    Awesome

    Where did you buy a separate gtx560m card for this notebook?

    Rami, Oct 21, 2011
    #11
  12. canada2005

    canada2005 Notebook Enthusiast

    Reputations:
    30
    Messages:
    41
    Likes Received:
    0
    Trophy Points:
    15
    I'm going to hold on to it for awhile longer.

    I bought the 560m off of ebay from a seller named "upgradeyourlaptop" from Nepean Ontario Canada.

    canada2005, Oct 21, 2011
    #12
  13. andy.lowel

    andy.lowel Notebook Guru

    Reputations:
    40
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15
    Can anyone tell me whats you windows score for the CPU on 780 ?

    andy.lowel, Oct 21, 2011
    #13
