    MSI GX660R cooling mods

    Discussion in 'MSI' started by pras1011, May 4, 2011.

  1. pras1011

    pras1011 Notebook Consultant

    Reputations:
    0
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    Does anyone have good ideas for cooling mods for this laptop?

    pras1011, May 4, 2011
    #1
  2. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    Cooling mods here are all the same.

    you drill holes in the bottom cover and you add copper ramsinks if there is room.

    If you want to be ambitious and original, try replacing the aluminum radiator fins with a copper one. You'll need a heat gun or a a blowtorch to do the solder work, but it isn't very difficult.

    niffcreature, May 4, 2011
    #2
  3. Thanatospy

    Thanatospy Notebook Consultant

    Reputations:
    124
    Messages:
    206
    Likes Received:
    11
    Trophy Points:
    31

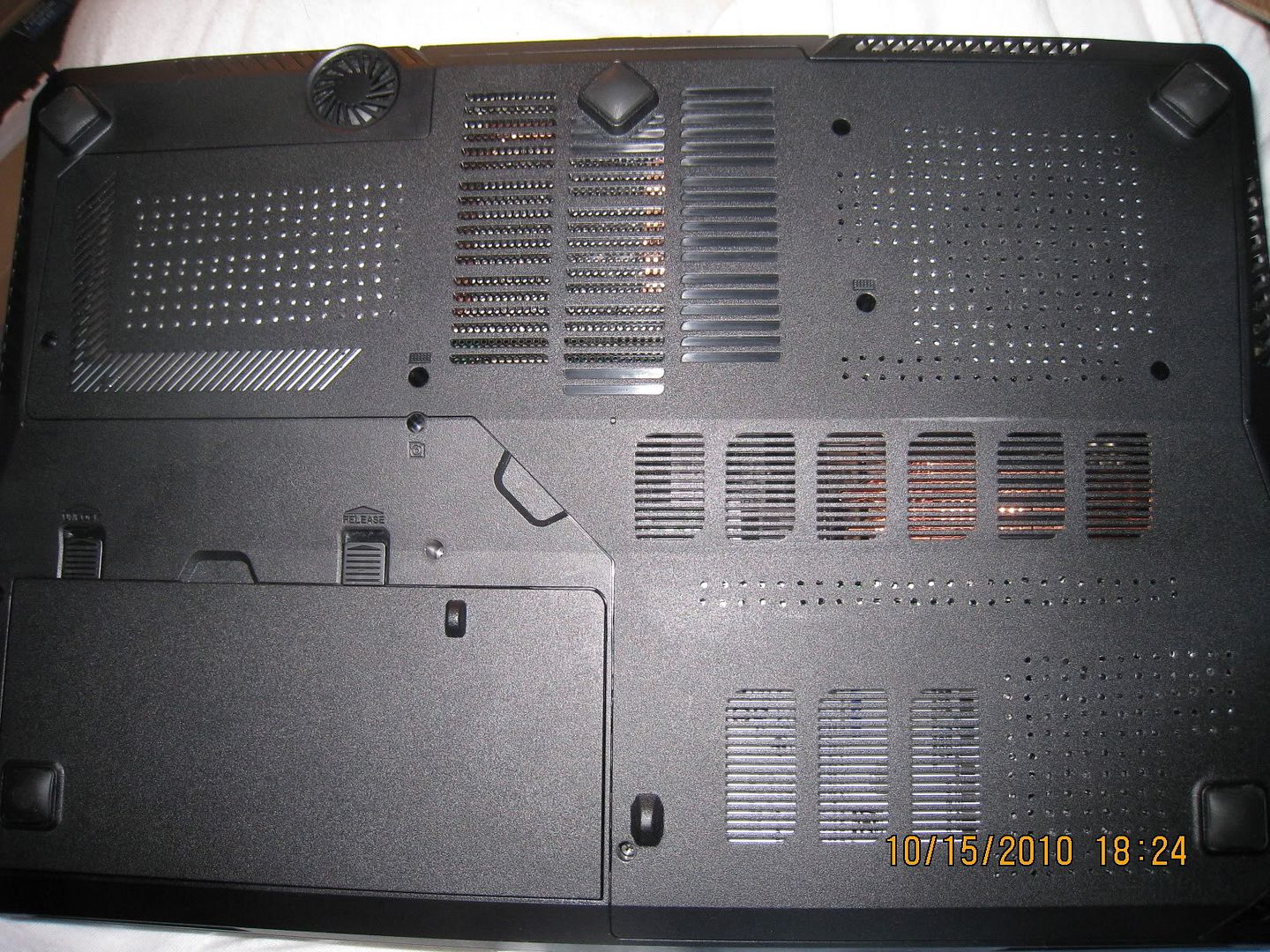

    i have tryed a lot of mods, the best one you can make is make 6 or 9 holes under the fan, not so big (something like 8mm) so it still can move the airflow inside of the machine, copper ramsinks over the heatspreaders didnt drop good results, thats because the copper is a good heat conductor not discipator, the alu ones are better is you have a laptop cooler like a zalman nc3000, dont forget to repaste the cpu, i didnt repaste the vga it works always cool for me, this is a picture of how looks under mi machine [​IMG]

    Thanatospy, May 4, 2011
    #3
  4. pras1011

    pras1011 Notebook Consultant

    Reputations:
    0
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    Do you have any figures for drops in temperatures for:
    1) Using ram sinks
    2) Drilling holes under the fan

    pras1011, May 5, 2011
    #4
  5. SoundOf1HandClapping

    SoundOf1HandClapping Was once a Forge

    Reputations:
    2,360
    Messages:
    5,594
    Likes Received:
    16
    Trophy Points:
    206

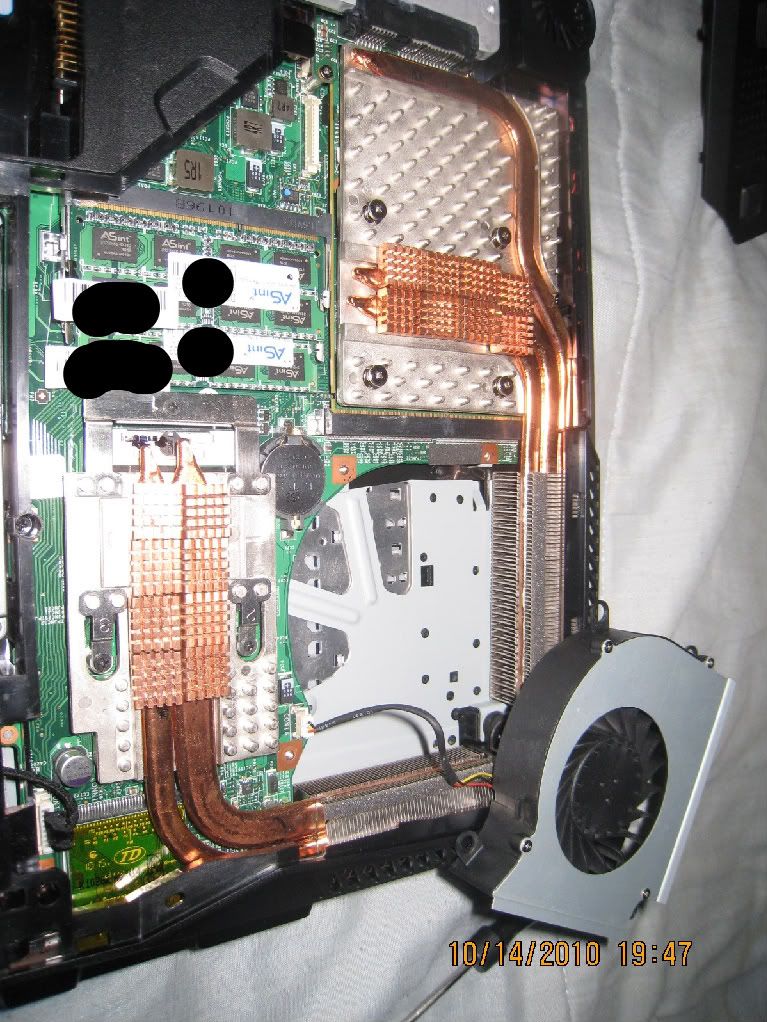

    I don't have any hard numbers, haha. I did mods the first thing after I got hte machine. (Well, after initial setup and whatever).

    [​IMG]

    [​IMG]

    SoundOf1HandClapping, May 5, 2011
    #5
  6. Thanatospy

    Thanatospy Notebook Consultant

    Reputations:
    124
    Messages:
    206
    Likes Received:
    11
    Trophy Points:
    31
    after drilled under the fan the temp goes down 5c, after install copper ram sinks rise up 8c, remove them and install the alu ones, just stay like without them in idle but after turn on a game it stay 2c cooler, in my country we have like 25c all day long and humidity like 60%, so now in idle my machine works at 40c and 65c wile gaming, that without turbofan on

    Thanatospy, May 5, 2011
    #6
  7. pras1011

    pras1011 Notebook Consultant

    Reputations:
    0
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    Forge:

    How did you make the third copper pipe for the gpu?
    Have you permanently glued the ram sinks to the copper pipes?

    pras1011, May 7, 2011
    #7
  8. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    He didn't make it, the laptop came with it :rolleyes:

    And no, they're taped

    niffcreature, May 7, 2011
    #8
  9. pras1011

    pras1011 Notebook Consultant

    Reputations:
    0
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    No the laptop didn't come with one you muppet.

    pras1011, May 7, 2011
    #9
  10. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    [​IMG]
    [​IMG]

    You are the muppet :p

    niffcreature, May 7, 2011
    #10
  11. pras1011

    pras1011 Notebook Consultant

    Reputations:
    0
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    No. This is my laptop and you are still a muppet!

    You are showing pictures from the GT680R which has a Nvidia card.

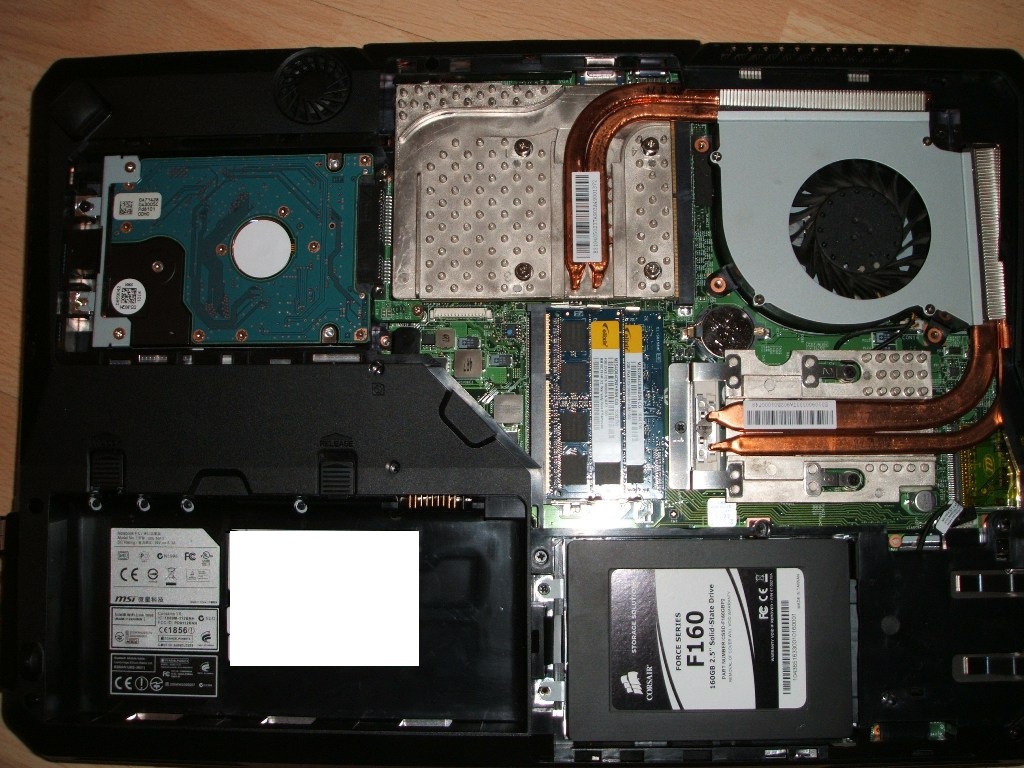

    Attached Files:

    • bi.jpg
      File size:
      283.1 KB
      Views:
      336
    pras1011, May 7, 2011
    #11
  12. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    The bottom picture is supposedly from a gx660.

    Forge must have a gt660 upgraded to 5870m.

    niffcreature, May 7, 2011
    #12
  13. SoundOf1HandClapping

    SoundOf1HandClapping Was once a Forge

    Reputations:
    2,360
    Messages:
    5,594
    Likes Received:
    16
    Trophy Points:
    206
    Forge does not have a GT660. Forge has a GX660R. Except for the drilling and taped-on copper blocks, everything else cooling-wise is stock.

    SoundOf1HandClapping, May 7, 2011
    #13
  14. pras1011

    pras1011 Notebook Consultant

    Reputations:
    0
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    Well I changed the CPU paste from MX4 to Shin Estu X23 and the temps dropped by 1-3c. I then stuck on some ram heatsink like Forge has done but this seemed to have raised the temps back up by 1-2c.

    Maybe I should stick the ram heatsinks with proper thermal epoxy paste??

    pras1011, May 14, 2011
    #14
  15. SoundOf1HandClapping

    SoundOf1HandClapping Was once a Forge

    Reputations:
    2,360
    Messages:
    5,594
    Likes Received:
    16
    Trophy Points:
    206
    I just use tape.

    Did you do any mods to the access panel?

    SoundOf1HandClapping, May 15, 2011
    #15
  16. pras1011

    pras1011 Notebook Consultant

    Reputations:
    0
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    Not as yet as I feel uncomfortable drilling holes in the casing!

    pras1011, May 15, 2011
    #16
  17. Rhadamanthis

    Rhadamanthis Notebook Evangelist

    Reputations:
    5
    Messages:
    402
    Likes Received:
    26
    Trophy Points:
    41
    Dremel i love, i have modded my under base gx 660 for this summer :D

    Rhadamanthis, May 15, 2011
    #17
