    DIR-655 Intel 5100 65Mbps HELP!

    Discussion in 'Networking and Wireless' started by Tyreck, Sep 3, 2008.

  1. Sevastopol

    Sevastopol Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    Can show your adapter and router settings for this, I have the same, but am maxed at 130Mps.... Thanks

    Sevastopol, Feb 21, 2009
    #51
  2. hovercraftdriver

    hovercraftdriver Notebook Deity

    Reputations:
    361
    Messages:
    785
    Likes Received:
    2
    Trophy Points:
    31

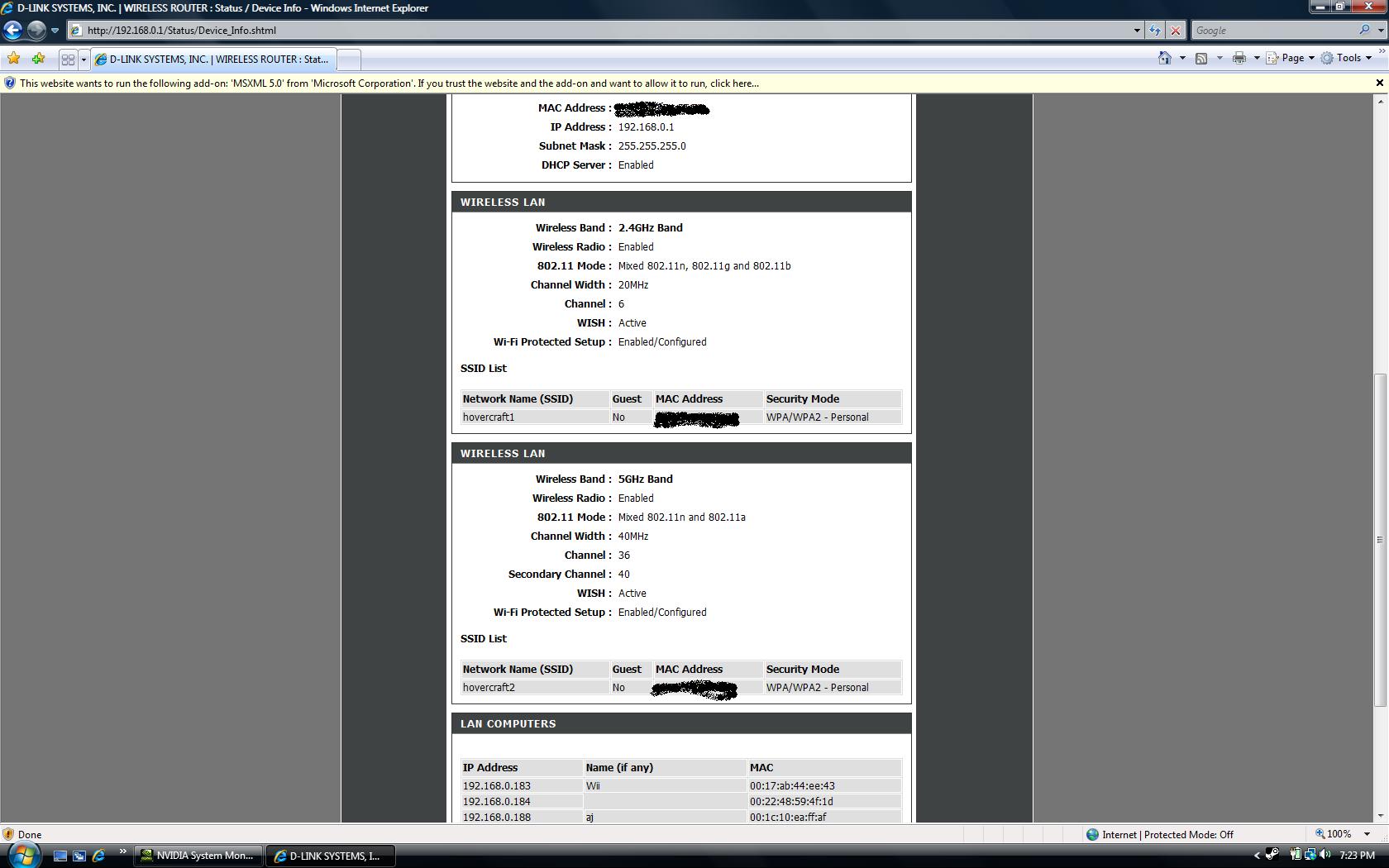

    Router settings are in attached Pic.


    Adapter settings:
    802.11n Channel width : auto
    802.11n Channel width for band 5.2 : auto
    802.11n Mode : Enabled
    Roaming Aggressiveness: Medium
    Throughput Enhancement: Disabled
    Transmit Power: Highest
    Wireless Mode: 802.11a/b/g


    Check out these links, they may help others that are having problems:

    http://forums.dlink.com/index.php?topic=616.0

    http://forum.notebookreview.com/showthread.php?t=335716&page=2&highlight=intell+5300

    http://forums.whirlpool.net.au/forum-replies-archive.cfm/1073756.html

    You gotta remember that 130 is maximum speed for 2.4GHz and Intel adapter because of 20mhz channel width restriction on the adapter. Only 40mhz channel will (5GHz band on Intel) will give you 300Mbps. That's why I got the simultaneous dual band 855, so I could set up my lappy on the 5GHz band and not be restricted by the G devices on my network, which essentially put me back in the narrow band 2.4 mhz channel range.


    Attached Files:

    hovercraftdriver, Feb 21, 2009
    #52
  3. hovercraftdriver

    hovercraftdriver Notebook Deity

    Reputations:
    361
    Messages:
    785
    Likes Received:
    2
    Trophy Points:
    31
    Are your desktop pc's wired or wireless? What adapters do they have if wireless? Your intel card is probably restricted because the wrt160n (2.4GHz only, I think) won't broadcast 40mhz wide channel. I could be wrong tho...definitely have been before.

    hovercraftdriver, Feb 21, 2009
    #53
  4. wqqar

    wqqar Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    1st of all thanks for the reply :)

    Both pcs are wireless.
    1 : wifi adapters = WMP300N
    2 : WRT160N supports 40mhz as both the pcs are connected at 40mhz
    3 : WRT160N Firmware : DD-WRT v24-sp2 (11/25/08) std - build 10991M NEWD Eko

    wqqar, Feb 22, 2009
    #54
  5. hovercraftdriver

    hovercraftdriver Notebook Deity

    Reputations:
    361
    Messages:
    785
    Likes Received:
    2
    Trophy Points:
    31
    I think what I meant to say is it won't do 40MHz in the 5GHz range, because there isn't one. And I'm just guessing. Can you confirm this? Does the 160n operate in the 5GHz spectrum? It was the only thing that made sense. If it doesn't then you won't get above 130.

    hovercraftdriver, Feb 22, 2009
    #55
  6. wqqar

    wqqar Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Yea, it does not support 5ghz, its only 2.4ghz.

    One more noobish question, how much speed [ I mean in MegaBytes/sec ] should I get between my wireless pcs [ connected @ 270mbps ] and the dv5 [ connected @ 135mbps] ?

    wqqar, Feb 22, 2009
    #56
