    For those that have intel 4965 mini card

    Discussion in 'Networking and Wireless' started by LT21, Jul 8, 2008.

  1. LT21

    LT21 Notebook Consultant

    Reputations:
    0
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    I have an inspiron 1520 and i upgraded my dell 1390 to the intel 4965 but i have no idea which wires go where. the dell card used the black and white cables, but the intel is coded by numbers and has three while the dell only has two. can someone possibly take a picture of their setup? Thanks

    LT21, Jul 8, 2008
    #1
  2. Wirelessman

    Wirelessman Monkeymod

    Reputations:
    4,429
    Messages:
    4,401
    Likes Received:
    0
    Trophy Points:
    105

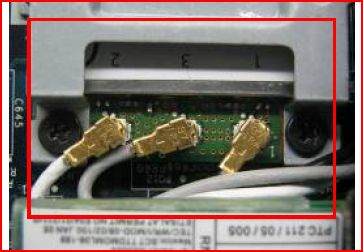

    Here is; ;)

    So Black on 1, White on 2 and Grey on 3.


    Attached Files:

    Wirelessman, Jul 8, 2008
    #2
  3. LT21

    LT21 Notebook Consultant

    Reputations:
    0
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    Thanks, I'll let you know how it works out.
    It worked, but how do i us draft N?

    LT21, Jul 8, 2008
    #3
  4. husky55

    husky55 Notebook Evangelist

    Reputations:
    14
    Messages:
    456
    Likes Received:
    2
    Trophy Points:
    31
    The Intel 4965 mini card uses MIMO so that's what the 3 wire antenna is for. Assuming you now have a Draft N router and the Intel 4985 in your laptop, you can configure both the laptop and the router to use both 20 and 40 MHz bands. The config settings can found in the Advanced Options of the driver. Draft N will work better if you use security WPA2 with AES encryption.

    husky55, Jul 10, 2008
    #4
  5. Wirelessman

    Wirelessman Monkeymod

    Reputations:
    4,429
    Messages:
    4,401
    Likes Received:
    0
    Trophy Points:
    105
    Only in the 5GHz you can have that option of 20/40MHz.

    Wirelessman, Jul 10, 2008
    #5
