I need your help guys :(

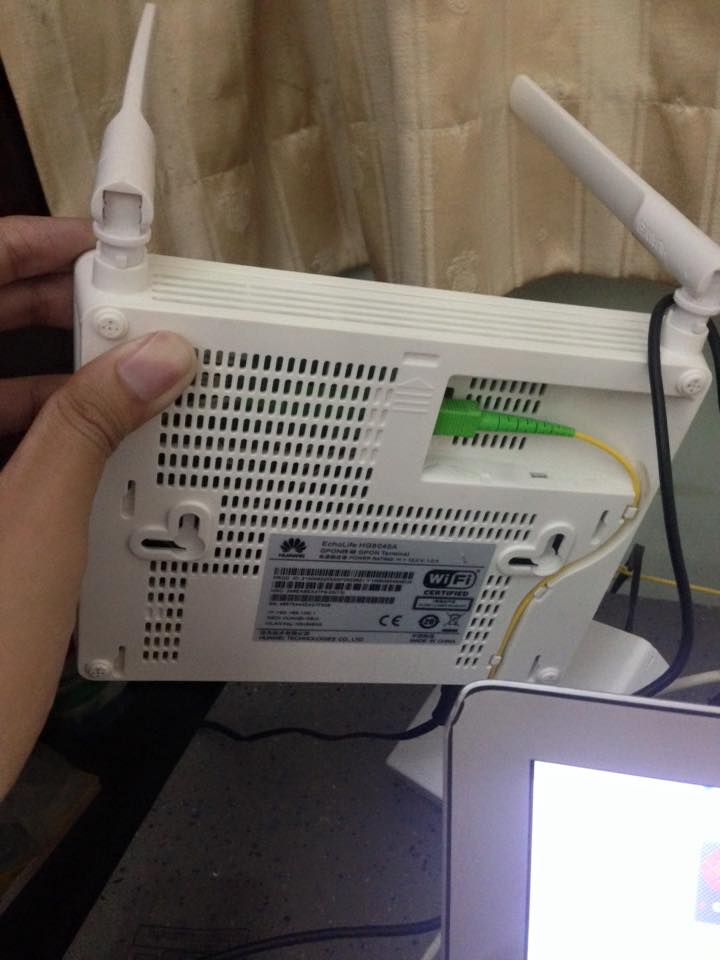

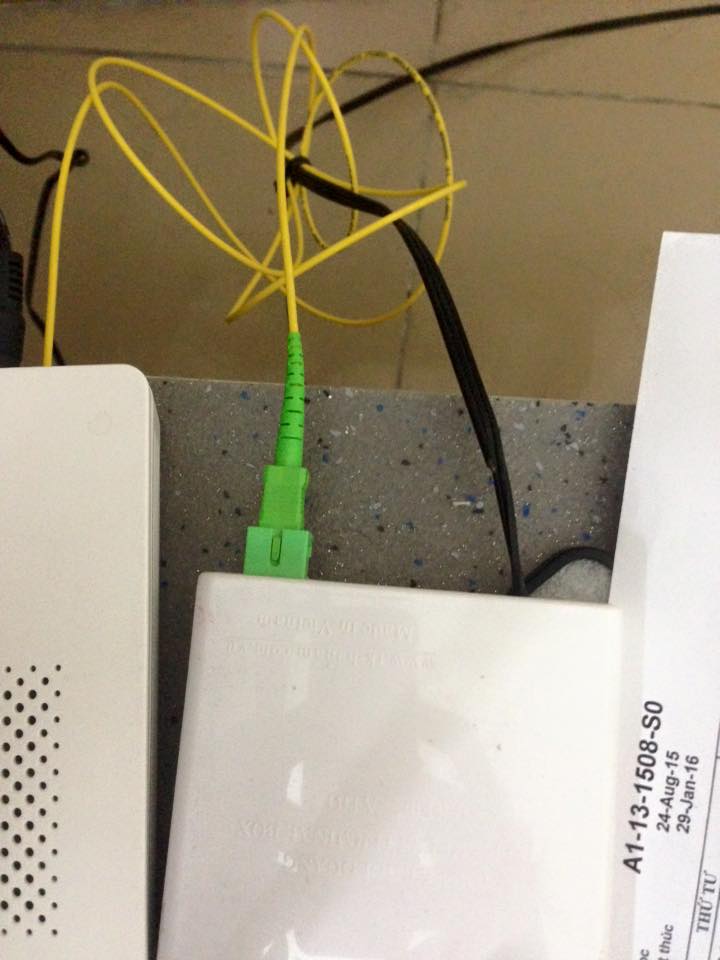

I have a hell bad modem router and i want to buy the new one but i dont know what router or modem i need to buy so you guys can help me? Here is my input optic fiber and the fiber access terminal box

I have chat with netgear expert and they said it can connect any router but i dont know it will connect direct to the router or thoungh the bridge mode and i want it connect direct to router . Iam looking tp-link archer c7 class ac1720 so you guys can help me?

The yellow cable is optic fiber cable single mode



You can't just connect a router to a fiber-optic terminal -you'd have to buy another combo like the one you have (only better).
It would make sense to bridge the Huawei so it would only work as a modem/access terminal but not the switch, router and wireless access point and connect a decent router (like the TP-Link you've mentioned) to said modem and let the TP-link handle the rest.

Not all modems can be bridged though - if there is no option in firmware to do so, you'll have to buy another combo device (not Archer C7 as it's just a router).



Can you help find one combo will compatible with this network please, the huawei modem router so such i found on any site amazon, newegg, bestbuy ... etc but i cant see anything modem fit with this opctic fiber cable single mode



What sort of trouble are you having with this device?
It would make sense to bridge it if possible and buy a good router rather than be forced to buy some other combo (which will severely limit your choice)



the network very badly, my speed of network is 15/15Mbps but the trouble when i using multiple device it cant run smooth, my device always cant get the wifi of that. It can use brigde mode but i dont want to use the modem router of china so that reason i want to change.



You will use another modem or router from China anyway - most if nor all are made in China or Taiwan
Do these problems are also present when you use an Ethernet cable? It does seem like a Wi-Fi related issue.

As for choosing another device - what's the actual model number of the Huawei you now have? I can't quite see it in the photo.



My model number is HG8045A, yes i know but the brand name not the made in



I think it using GPON network

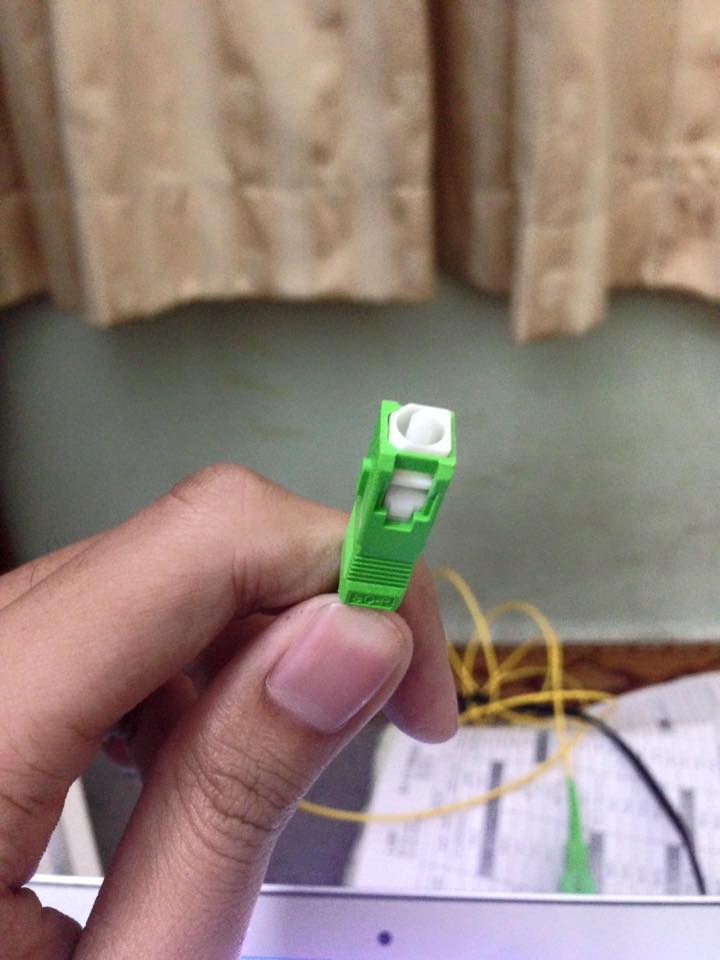

Do you have this connector? It's SC/APC.
http://www.flyinpatchcord.com/sc-apc-connector.html



Wow i have that, you is a master of expert haha



you see the green thing i pluged in the modem? that it



The choice is very, very limited as it seems.
TP-Link has a reasonable device http://www.tp-link.com/lb/products/details/cat-17_TX-VG1530.html but it doesn't seem to be available for sale anywhere.

D-Link has some that are also not offered to consumers. Netgear has none as far as I can see.

ZyXel has something that can actually be bought for reasonable money and so do Billon but these don't use the connector your need.



So sad so now any store doesn't have any modem router will compatible with my network?



so now only option is brigde mode right?



Unless this TP-Link is available where you live. It does look like a sensible consumer device - the only question is how much would it cost...



iam intending to buy around 100$ :3
