    Creating a USB powered fan...

    Discussion in 'Notebook Cosmetic Modifications and Custom Builds' started by Aznkorealee, Sep 2, 2010.

  1. Aznkorealee

    Aznkorealee Notebook Consultant

    Reputations:
    19
    Messages:
    121
    Likes Received:
    0
    Trophy Points:
    30
    Hi all,

    So recently I OC'd my laptop's GPU... so my GPU is gettin abit too hot when playing games...

    Although I thought about getting those Thermal Pastes and applying them to the GPU and CPU... but there I found a sticker at the back of the laptop when I opened it up that said "Warranty void if removed" or whatever... =.=;;;

    So instead i'm thinking of making a little fan that points towards the bottom of the case (through the vent where the GPU is) so that it channels more air into the laptop case...

    Online, I see the case fans requiring 12Volts... and so far, USB cables do 5Volts... so I dun think those case fans would work if I splice them up and hook em up...

    So my question is... three things...
    1> what are some 5V case fans that are out in the market currently? (or are they discontinued cuz they are old school? :p)
    2> What if I connect "two" USB cables (in series) to the case fan? (total of 10V is being outputed... but would it work on those 12V fans? kinda? :p)
    3> which option is better? finding a 5V fan or hooking two USBs in series?


    Thanks for your help

    Aznkorealee, Sep 2, 2010
    #1
  2. X2P

    X2P COOLING | NBR Super Mod

    Reputations:
    3,179
    Messages:
    5,361
    Likes Received:
    4
    Trophy Points:
    206

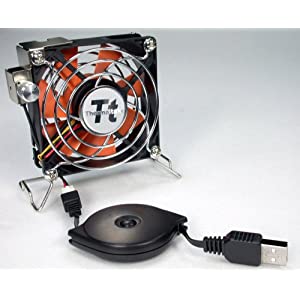

    X2P, Sep 2, 2010
    #2
  3. K7WTHAZ

    K7WTHAZ Notebook Enthusiast

    Reputations:
    29
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    I think the link above is your best option but if you have the tools to solder you can get a fan like this, (they have other sizes available but this was the biggest). Ball bearing fans are the quietest and usually last the longest. Then purchase at least 2 usb male ends, in-case you screw one up ;) .

    This diagram will give you the pin layout. You would use pin 1 and 4.

    I made a cooler for my laptop when I'm at work using stuff around my work. I'll post a pic of it but I used a couple of small 5v fans we had at work.

    K7WTHAZ, Sep 2, 2010
    #3
  4. thundernet

    thundernet Notebook Deity

    Reputations:
    609
    Messages:
    1,285
    Likes Received:
    0
    Trophy Points:
    55
    thundernet, Sep 12, 2010
    #4
  5. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    12v fans run fine at 5v.
    They are just quieter...

    theres not much 'creation' you can power a fan or not..

    niffcreature, Sep 15, 2010
