Samsung Q35 Carbon

So i just come to recent CF sheet put on notebook...
i'm wondering how it would look like on my Q35...
so i try to make a graphic prototype first...

so this is what its come out on the inside look(see attachment)... i will try to make full carbon graphic prototype later...

so i want to ask you guys opinion on this on...



That is an interesting idea although black is getting a bit common on many notebooks. See here, for example.

I would leave all the chamfer around the edge of the keyboard in silver, so it is like what already is at the back. It will help the black keyboard to stand out from the black palm rest.

John



okay... thanks for the feedback john... so i try to make what you suggest...

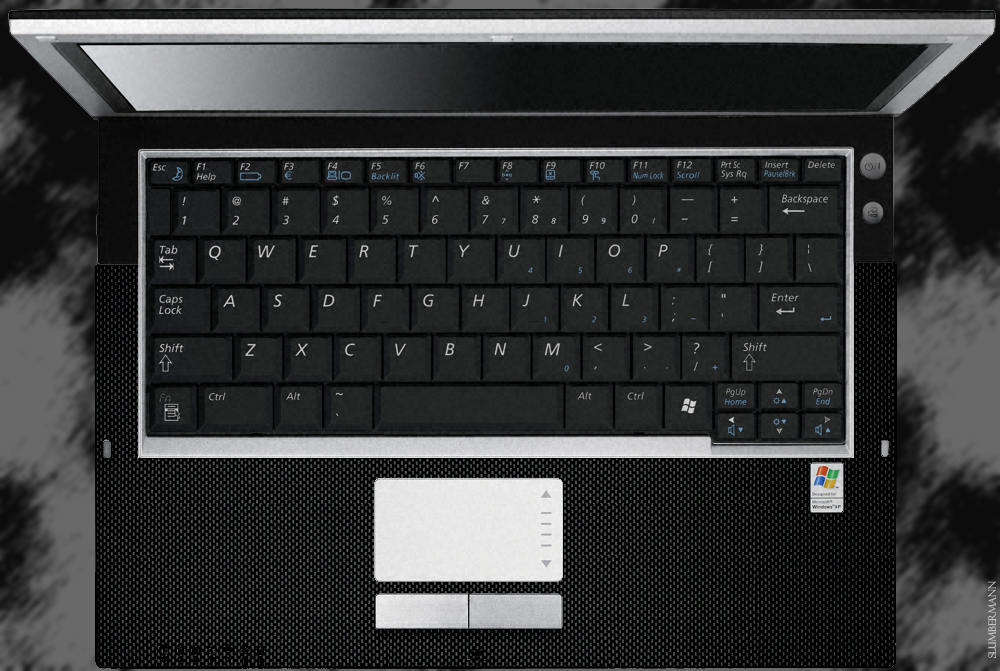

so here is the result... (see attachment)

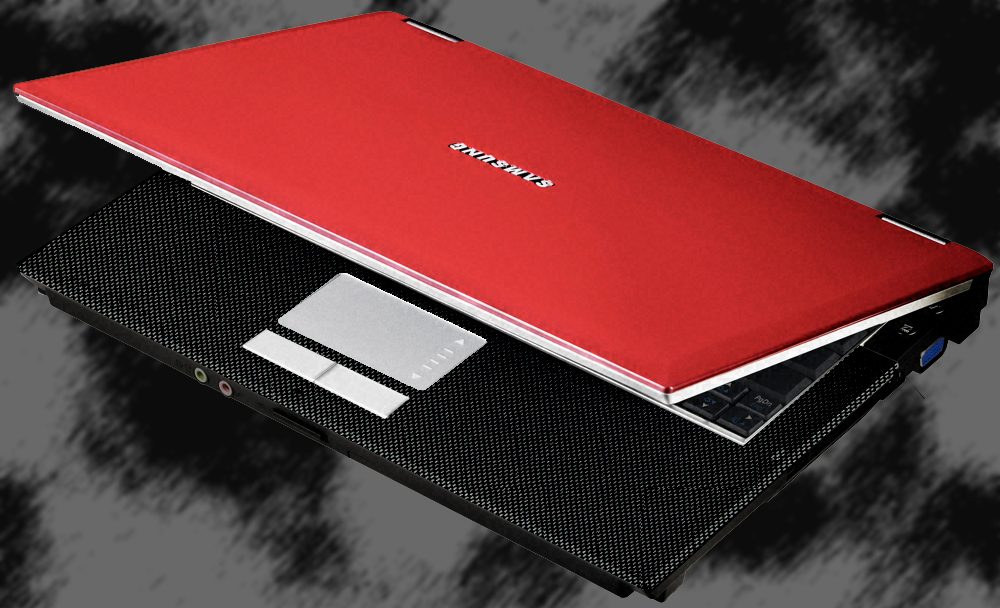

okay... i make another picture... how it would look from the side...



That looks very nice.

How do you make that the sheet does not peel at the edges under normal use? How thick is the sheet and where do you get it?

I presume that the rubber pads each side of the keyboard which support the display when closed would be covered by the sheet.

John



btw... i was planning to use the real carbon fiber which is 0.2mm thick... not the sticker look like carbon vinyl one... cause the real carbon fiber will actually give more protection to my laptop... eventho this is only a plan..

so about the edges does not peel... i think the adhesive part is really good for the edge... so its not that easy to be peel off... and to have the good finishing... i think there a trick which i will ask the supplier... maybe same trick like using the Carbon Vinyl sticker

btw... you can get the real Carbon Fiber Sheet from coolbulb... there are various type... but the one we looking for is the 0.2mm sheet with adhesive backed as we need it to stick on the laptop... but these sheet is not suitable for engine cover tho... you can buy the other sheet if you planning to use on ur engine cover...

the price for 9.7" x 24" is $84.95... this is expensive actually... i will try to search for other supplier with better price...

about the rubber pad... yup... it will be covered... only if you make a hole to give the rubber pad a room to go thru...

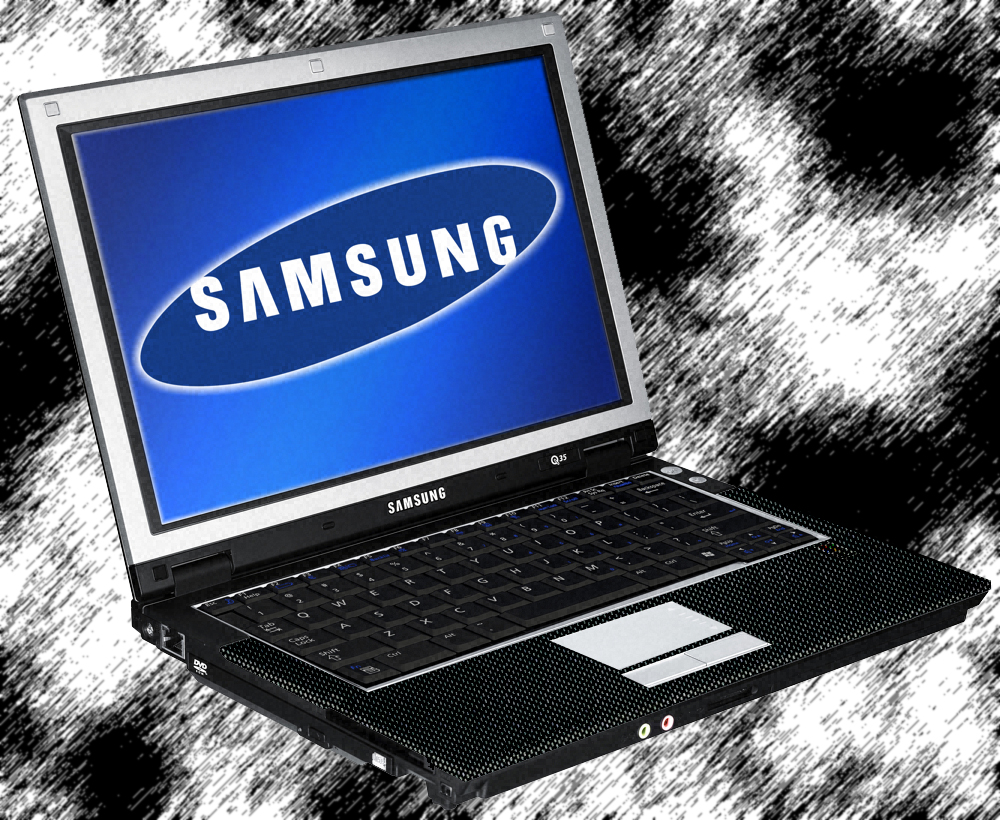

here another pic from different view...

btw... i foung on jcwitney carbon sheet with size 23-1/2"W x 8"H for $41.99...



u can probably find better deals on ebay..

just be careful and read properly anything with the word vinyl dont bother..unless its 'not vinyl effect'



okay... i've found some but not directly from germany... like this one is from UK... n this one too is quick cheap.... maybe i will try this on my monitor first... lol...

btw... i remember you want to use this material on your laptop rite DDDDD.... so have you done it?



Hey,
Im not sure how my prices compare to what you can get in the UK, but check out out and compare:
http://forum.notebookreview.com/showthread.php?t=125197&page=2



btw kas... the one I add here is the real Carbon Fiber sheet.. not the carbon vinyl effect one... n i check too for the sticker one... i think i can get more cheaper in UK....



not yet, i've never done this type of thing before, but yea, the seller is kind enuff to give me a sample piece

waitin for that to come to see how it works



They sell real carbon fiber sheets? Just be aware that unless its ridgid, it will not add more support.



wow, cool find!
