    Graphic card dead?

    Discussion in 'Other Manufacturers' started by vraa, Mar 2, 2010.

  1. vraa

    vraa Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi all

    I guess im pretty convinced but would like a second opinion anyway.

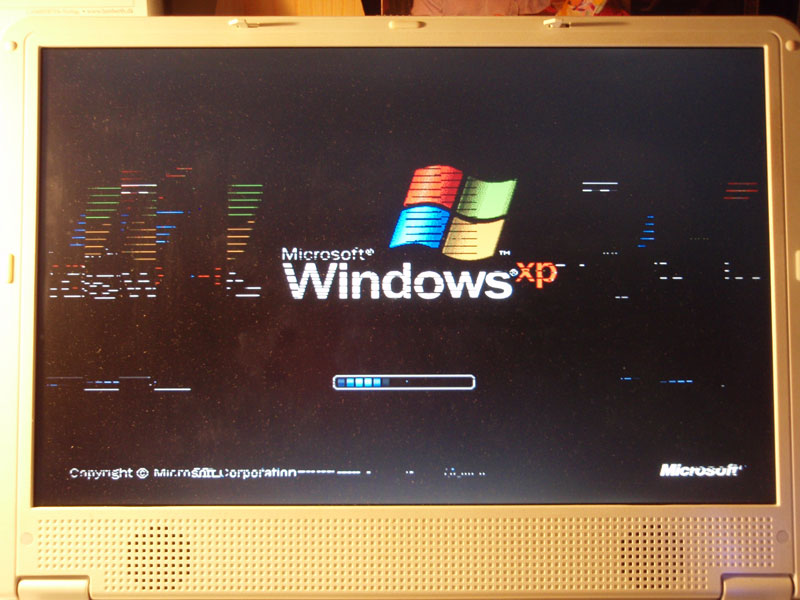

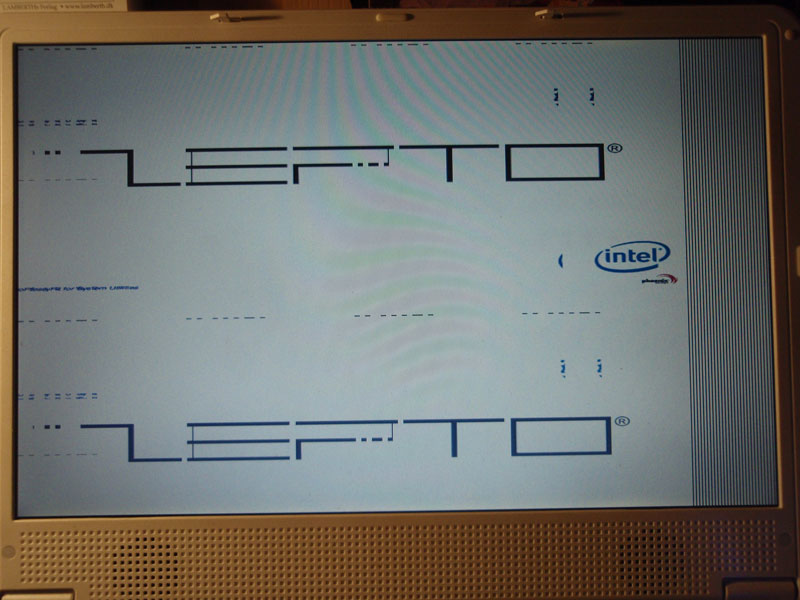

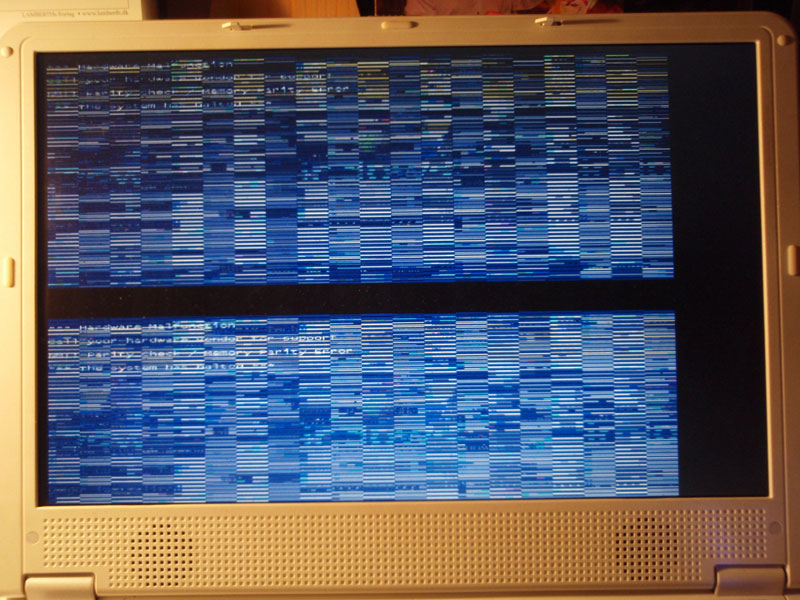

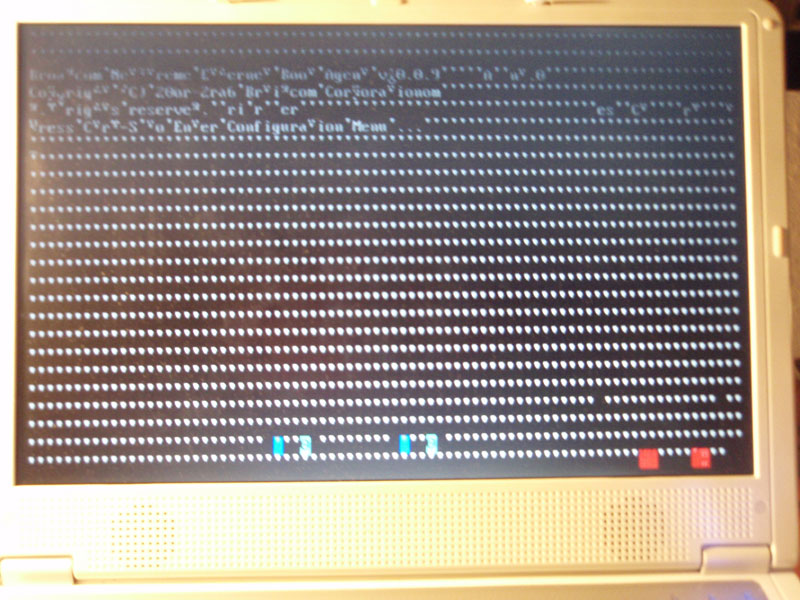

    I have e friend with a zepto laptop (don't know the make or model) where the display looks a bit creepy. Look a the attached pictures.

    Does anyone recognize something like this? Is the graphics card dead?


    Attached Files:

    vraa, Mar 2, 2010
    #1
  2. Greg

    Greg Notebook Nobel Laureate

    Reputations:
    7,857
    Messages:
    16,212
    Likes Received:
    58
    Trophy Points:
    466
    The GPU is definitely going.

    Greg, Mar 2, 2010
    #2
  3. narsnail

    narsnail Notebook Prophet

    Reputations:
    2,045
    Messages:
    4,461
    Likes Received:
    1
    Trophy Points:
    106
    What Greg said.

    Download a program called "HW Monitor" and check the temps to see what they are like. If they were too high for long periods of time that could be a factor.

    narsnail, Mar 2, 2010
    #3
  4. Tyven

    Tyven Notebook Consultant

    Reputations:
    0
    Messages:
    110
    Likes Received:
    0
    Trophy Points:
    30
    Tyven, Mar 3, 2010
    #4
  5. vraa

    vraa Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    The oven trick. Sounds crazy... and fun :)

    I can use my girlfriends hairdreyer. Am I just supposed to blow hot air on the laptop for a few minutes? On a specific area or...?

    vraa, Mar 4, 2010
    #5
  6. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Take it apart.

    Or just put the laptop on your bed and leave it on for a while.

    moral hazard, Mar 4, 2010
    #6
  7. Amnesiac

    Amnesiac 404

    Reputations:
    1,312
    Messages:
    3,433
    Likes Received:
    20
    Trophy Points:
    106
    I don't think the hairdryer is going to have sufficient heat for melting solder. You'd be better off using a heat gun or something.

    Amnesiac, Mar 4, 2010
    #7
  8. hell0

    hell0 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    hell0, Mar 4, 2010
    #8
  9. vraa

    vraa Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    hell0: Nice spotted. I think i'll try changing the RAM first and then go for the oven trick if that doesn't work.

    Thanks for great replies and suggestions.

    vraa, Mar 4, 2010
    #9
  10. vraa

    vraa Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Holy c...!!! It worked.

    I took of the keyboard, located and disconnected the GPU fan and started the laptop for 3-4 minutes while blowing hot air on the GPU. The screen color turned into white but after a restart... perfect picture!! FANTASTIC!

    Thank you very much for your help :)

    vraa, Mar 20, 2010
    #10
