Help me identify this laptop.

first of no, its not stolen. a complete computor noob bought this new, and has sence forgot all about everying and im going f*cking crazy trying to identify it.

it does not have battery, nor does it have a charger, as u can see from the pictures i know voltage, but i have no idea about polarity...


http://72photos.com/client_images/9530/1.JPG
http://72photos.com/client_images/9530/2.jpg
http://72photos.com/client_images/9530/3.jpg
http://72photos.com/client_images/9530/4.JPG



I guess this is Movita C600 type 630. Should be equipped with SiS630 chipset, 800MHz P-III and 20Gb HDD



http://web.archive.org/web/20020224015126/www.movita.com.tw/products/products_colima630_big.htm

anyone have one of those that can check the polarity, or does someone have master google fu?



can you take a picture of the socket?



i got it working, i guess the middle pin is (one of those round once) + and ring -, and i was right. hacked windows isos and debian detects everything perfectly, even fn-key works.

now i only have to find a battery that fits. but the battery, this i have no info for, could it be a 18v battery?



Any single-pin charger socket is designed this way. + in the middle and - on the outside ring. The reason I asked for the photo was that some laptops used to come with different 3-pin or 4-pin sockets (like old Dell, for example)

About battery. I've seen a couple of German websites selling a wide range of spares. Are you from USA? Coz I don't know their shipping policies.



nope, sweden here.

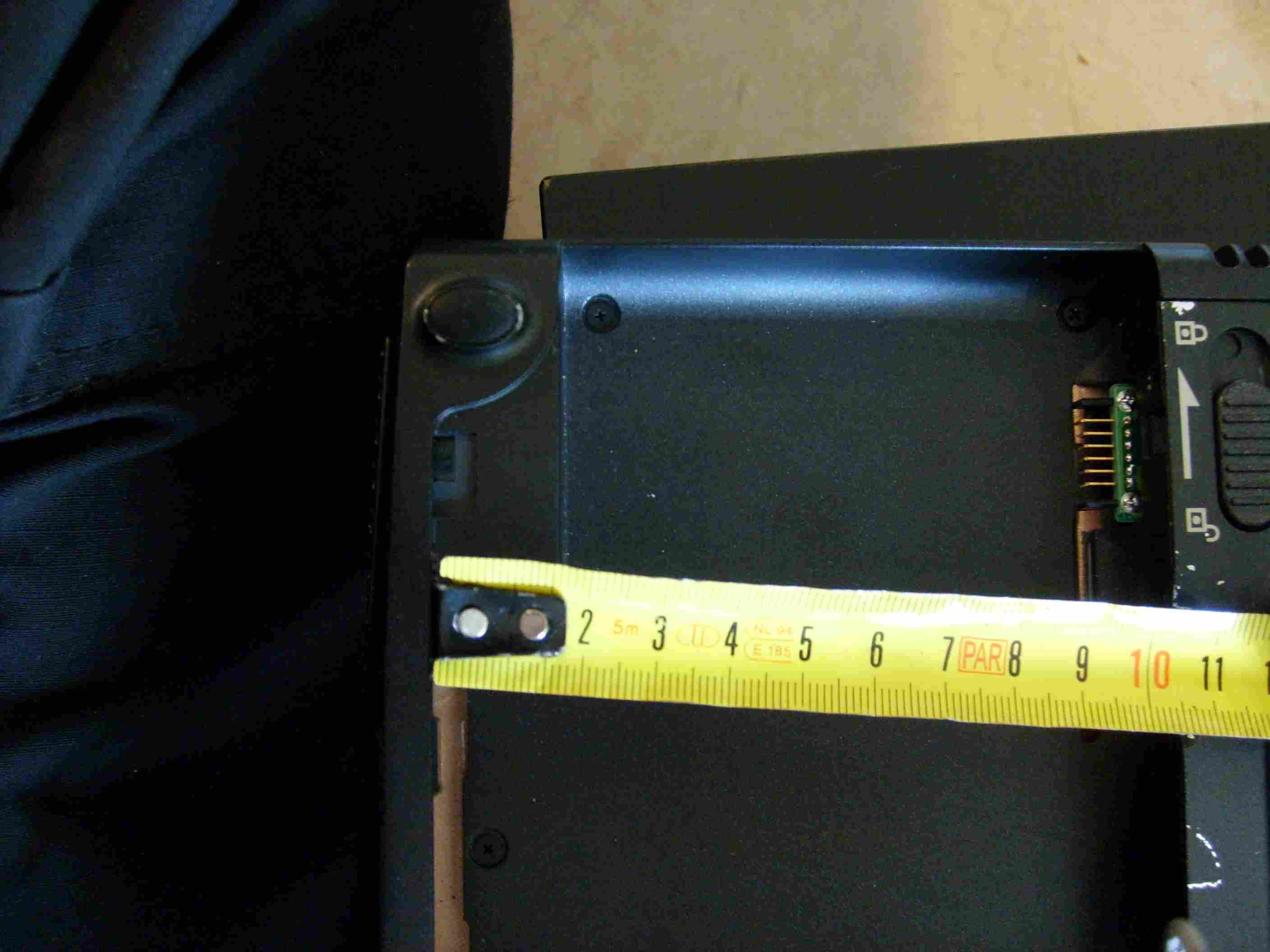

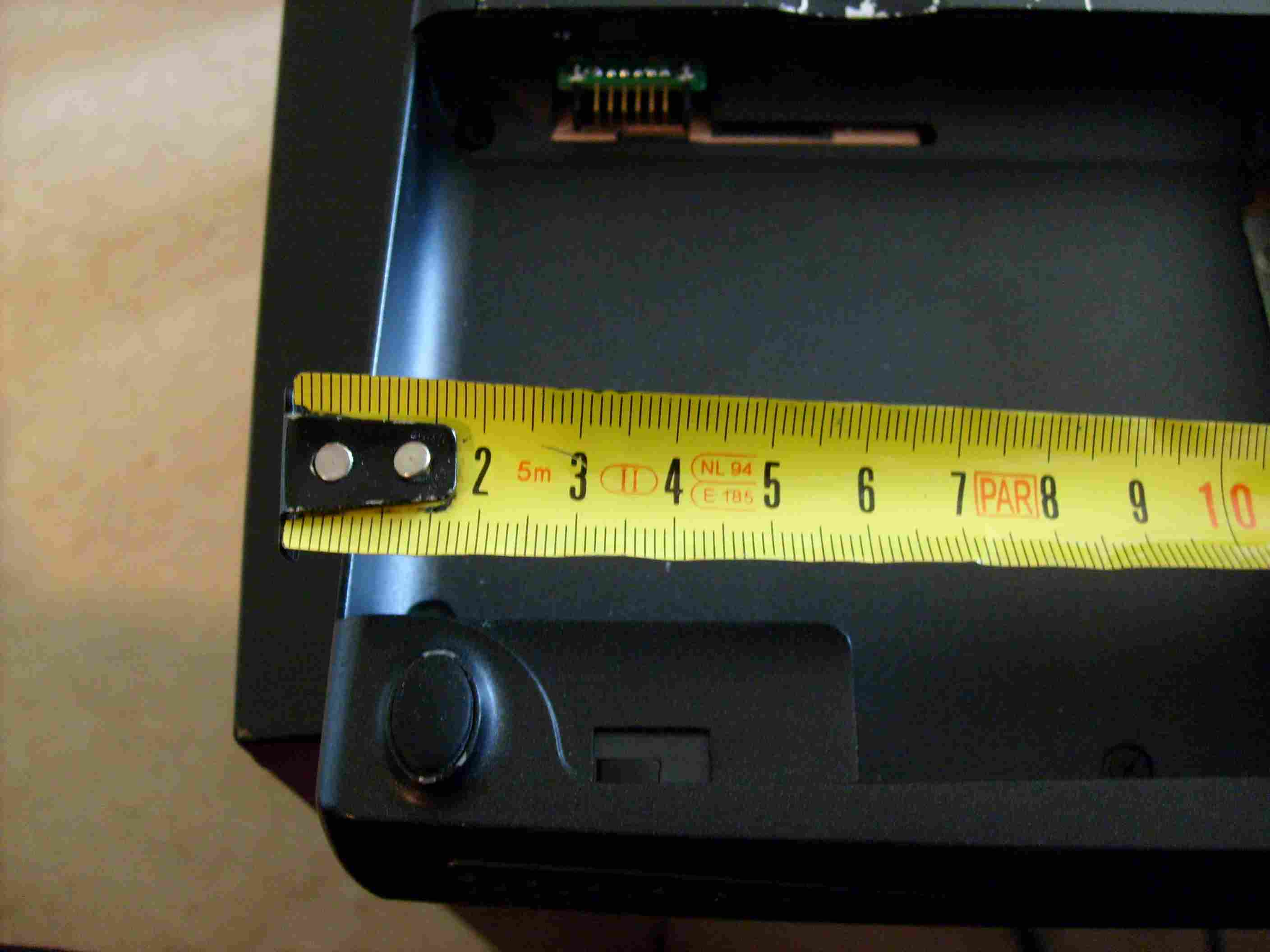

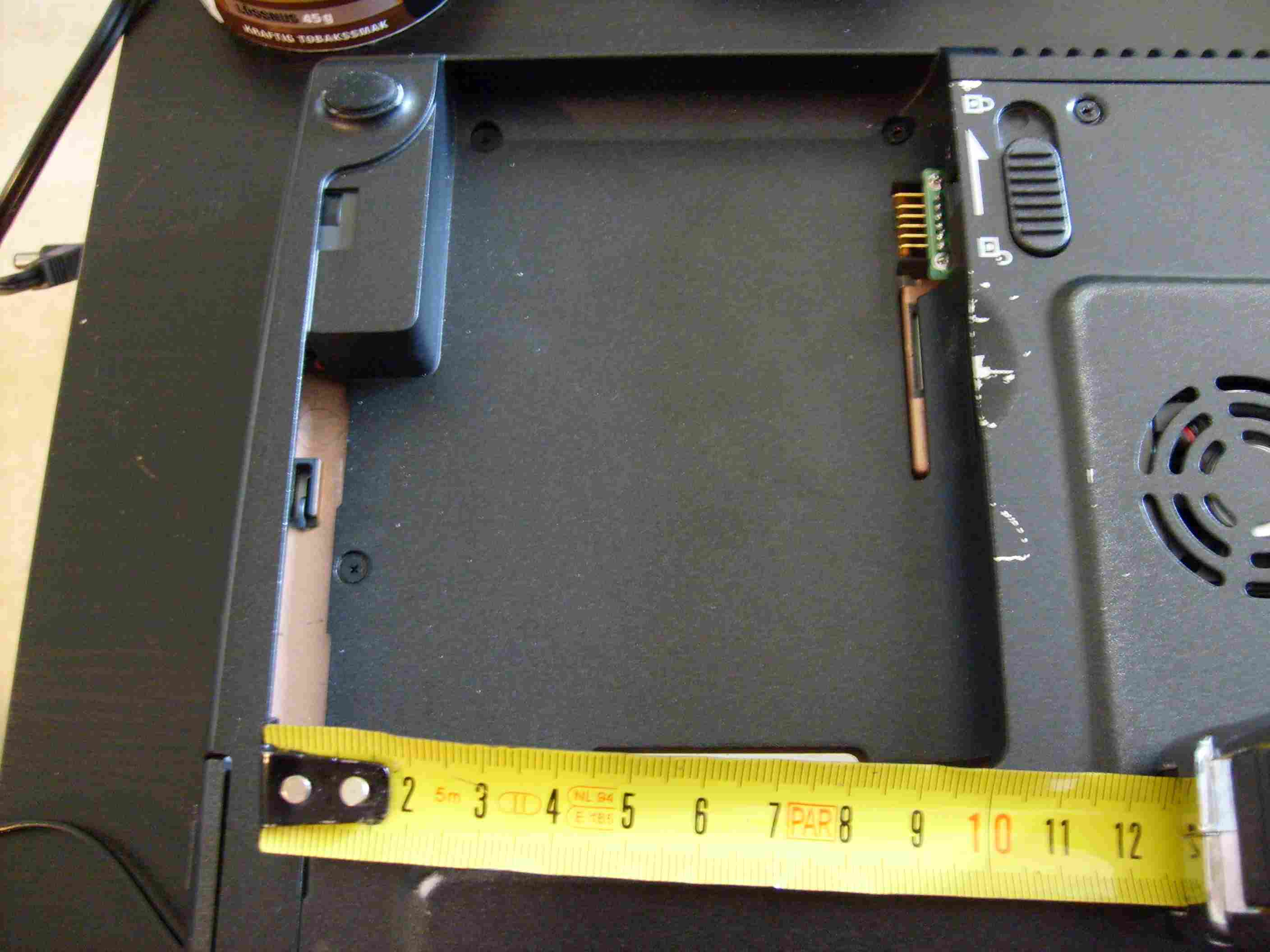

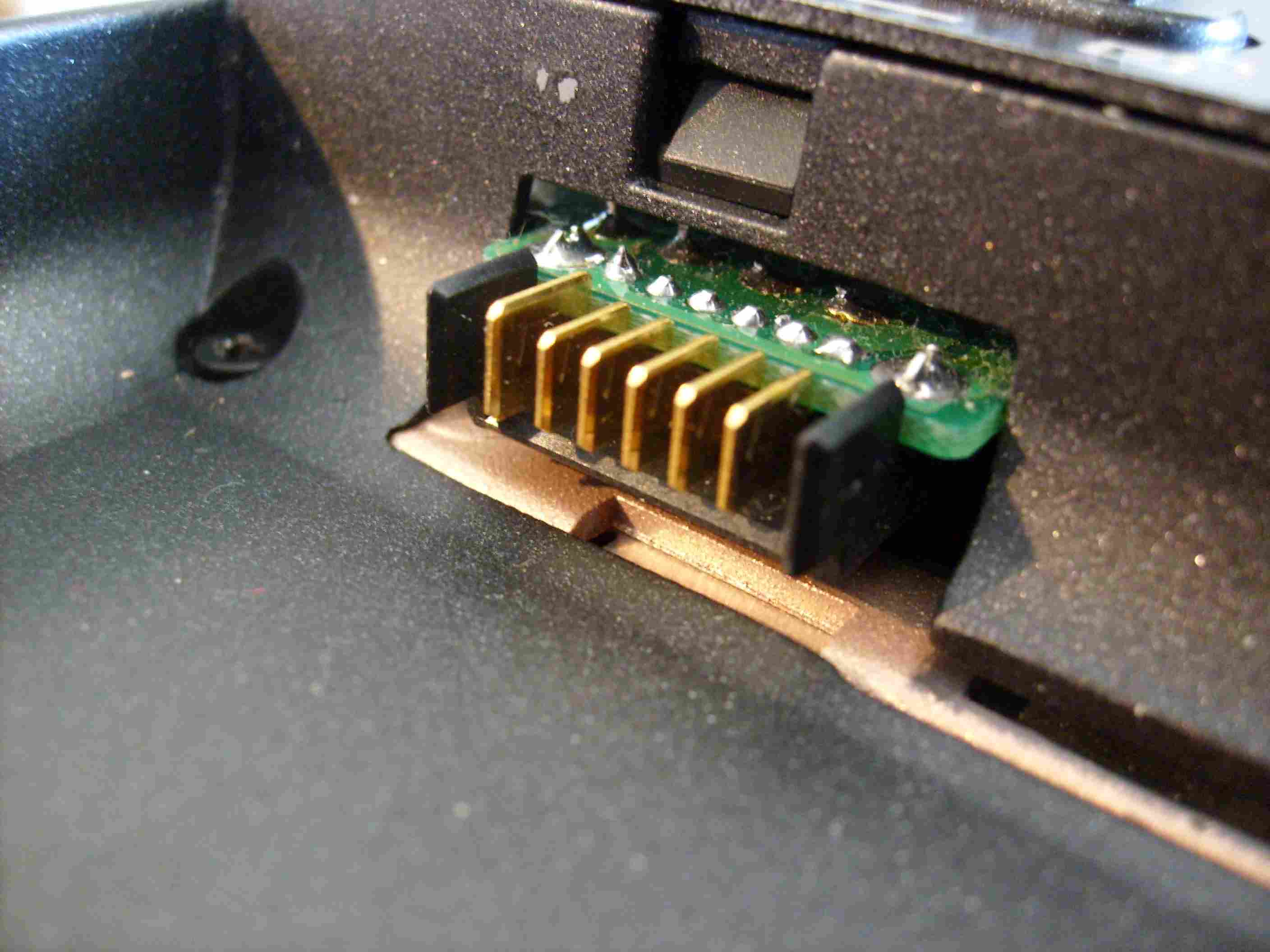

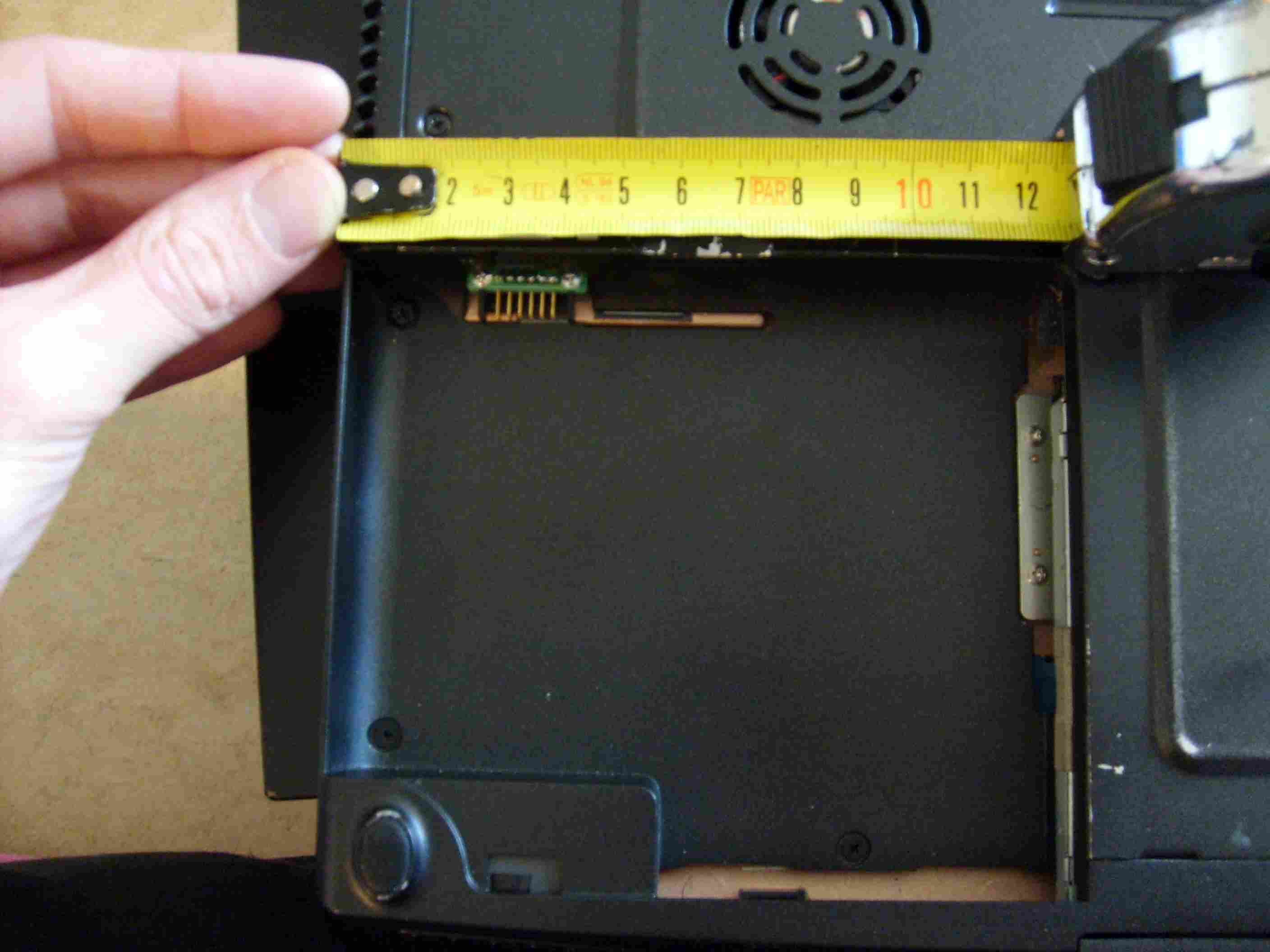

so i got some pitctures of battery socket, hope it helps..



look what nice things someone found for me, no batteries tho.

http://www.ipc-computer.eu/index.php?cPath=8258_22174
