Mororola ML 850

Anybody here has a motorola computer? I wonder why theres no review on this unit or brand.

I've got motorola ML 850 unit and I need some info. on it. anybody?




ohlip



I guess nobody has an idea what kind of notebook it is.



Ohlip



Hi Ohlip,
I have several Motorola ML-850's. Unfortunately, I have the same problem.

I can find absolutely no technical information or parts specs. ...well, I did find a $195 power supply, but no info about hard drives/caddys or anything else.

If I didn't have several here, I would say they never existed.


Best,
Mark



Hi! finally I've got a mate with this unit.
Well! with regards to power supply, thats is not a big problem we can mod....any compatible adapter that are available as long as with the same output power. All I wanna know if there is available service manual with schematic diag. on the market.

My unit has no harddrive caddy and cable ribbon. We just need a cable ribbon for the harddrive it doesn't matter if there is no caddy maybe a can of sardine will gonna work on it . BTW, I bought a harddrive cable ribbon that came from compaq 1200z and its on its way. I will post back if it is compatible.


Do you have any idea where to find a battery for the unit either dead or used? Also we can rebuilt the dead one, you know.



I guess nobody are interested on this unit. Anyway to those with ML 850. First, I modded the dc jack connector by replacing it with the one used by sony and panasonic. Second I used the compaq AC adaptor with almost the same voltage and current output then by changing its plug that correspond to the dc jack and it works perfectly. By now, my unit is working and I can access to the bios. By using the external cdrom I can play with UBUNTU OS. Now, is to hunt down the harrdrive connector.

BTW, this unit is some kind of distress its like been from a war zone but still working hard.


Ohlip



Update, the harddrive cable ribbon is not a match. Do anybody here have an spare hdd cable ribbon even if it is for ML 800 series? Thanks



ohlip



Hello ohlip,
I have an ML850 that I need to put a new wireless mini-PCI card in, how do disassemble it to access the mini-PCI slot?

I've never opened ruggedized notebooks before.

Thanks!



Ok! here how this animal to disassemble: At the buttom, release the lock of a battery compartment by sliding the release nob backward then take out the cover and the battery. Under the battery there are two screws unscrew it all the way. Then unscrew all the srews that you have seen at the buttom. total of ten including the 2 at the battery compartment. Afterthat release all the rubber port at all side coz that rubber cover is part of the buttom cover. Then slowly fry it up the buttom cover, start at front side cover and you set to go. Slowy open it coz the speaker wire is connected to that cover. Good luck.

BTW, can you tel me where to get a harddrive cable ribbon for this unit? I don't have a haddrive caddy and connector. Connector for the harddrive is good enough for me. I am still hunting.


ohlip



The Getac W130 is the same as motorola ML850. anybody can share where to get a harddrive cable ribbon for those unit. Anybody! oh! Come on guys.



ohlip



Only Three guys own a motorola unit on this whole world? I can't beleived it.

Come on down.

ohlip



hello, I've managed to buy myself a 160gb only to realize I've never been able to remove the hard drive~~~ if anyone could help it would be nice (and no your not the only 3 people in the world -not yet- 2 ml850's)



ive managed to buy a 160gb and then to realize that i have barely any idea how to remove the old one from the mind game of a caddy. (2 ml850's)



Purchased 1 of the Getac W130 of ebay and also in need of parts ,
battery, hdd connector, battery cover .Awsome laptop runs ubuntu
great also need some advise on power connector mod I messed around
and broke the plastic from the middle of the connector the outside dia
of the connector is 5.5mm and the inner is NOT 2.5mm and the plastic
inside the power plug must have been brittle so now i have a short
can someone help in determining the polarity on the power so i can maybe
solder on a pigtail or replace my connector on mb and if anyone has found
a ide for the mb ,also would hooking a 8 16 or 32 usb stick internally
be an option last time i tried the usb route i never could load a bootable
xp pro and get it to work any other ideas welcome for future mods



Ok! 5 person now who own the ML850 and W130.

BookMo...You may use the dc jack that is use for panasonic toughbook or sony notebook . It has the same leg or pin for the Mbo. I already modded mine coz the existing one has small jack and you can find that easy. I also have the same unit and i can't find any hdd cable ribbon so far but if somebody can provide us an schematic of the IDE pinout on Mbo. it is more lot easy.


ohlip



Yay lol i removed the HD!!! so happy... powerjack broke for me aswell, and (for reasons unknown) whenever my new hd is in, my speaker stops working. But when i place my old 60gb (came stock) it starts to work??? But if you need any Ml850 drivers ask me! espicially the modem drivers. The new drivers released by M$ don't work worth a SH*T



Replacing the DC jack is not as hard if you have a bet of skill on electornics soldering. I have done that to my unit as I mentioned from my previous post coz the original one is a bet smaller and I am having dificulty on finding the right adaptor and plug fo it. I replaced the dc jack the uses by panasonic tougbook with the same leg and pin for as much as 5buck. I am now using the adaptor from compaq a compatible one and I replaced also its plug that correspond to the panasonic dc jack.

BTW, can post the pin detail of the mbo. IDE or even the photo of the harddrive connector. Thanks


ohlip



hello, been a while, just like to say if you need drivers for the ML850 ask me, If I remember correctly the Ml850's modem WILL NOT work with default windows drivers. I have ALL drivers(touchscreen as well!). Plus i should have a info guide on this too.



I actually do need the video sound and touchscreen drivers for the ml850.



Still hunting the harddrive cable ribbon for ML850. I don't care about the caddy, anybody.....


ohlip



Yay is back and is haphap~ to jcall you probably know i need someway to give it to you. but these are the types

Touch is "PenMount DMC9000 & DMC9100"

Audio is standard AC'97 (by realtek)

video is Intel 82852/82855 GM/GME
( http://www.intel.com/support/chipsets/sb/CS-009239.htm#b)



How about the Getac W130 harddrive cable ribbon, anyone of you has an available for sale or can point me where to get it? Let me know.


Update: I know now that motorola and Getac are horrible on customer support.


ohlip



Finally one item show up on ebay and I grabed it right away. let see if can reproduce this cable ribbon as an alternative for those who need.



ohlip



Woot..woot I've got the caddy and connector. Now here is what I found out. The motorola ML850, Getac W130 and Mitac W130 are the same. the only difference is the LID logo. Now I need an schematic to install a gps module into this rig internally. Does anyone of you hiding this document? Let me know. The only alternative that I am thinking is to use one USB port at the back of the unit and it will not be usable externally but if i can get the shematic. It is more easy without sacrificing the USB port. Anybody!


ohlip



unfortunately, no, i dont have any exploded charts on any of those, but i do have these (Unfortunatlely the .pdf is too big(so was the .txt as well)) http://forum.notebookreview.com/images/smilies/frown.gif:(

You could always call uup Motorola and get them to send you guys parts, I know I can send back my other ML850 to motorola and they'll refurbish for a somewhat decent price... (I'm swapping all the parts around, long story)

Okay, email me for the ML850's user manual @ [email protected]



freedom....Thanks for the offer. I already have the user manual and incomplete service manual. The only missing is the schematic. I just want the pin out of the two expansion slot connector inside to verify If I can install or embed bluetooth or gps as to what I've done to panasonic cf-29 and cf-18 toughbook.


ohlip


PS. Thanks also for drivers list, its a great start to run this machine.

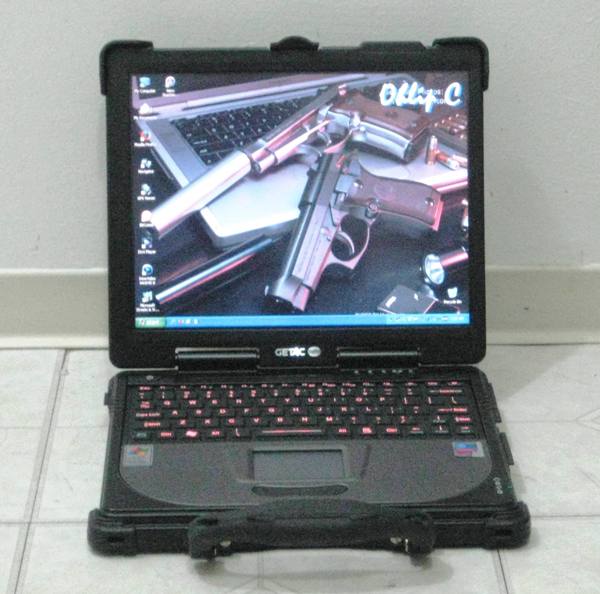

Update: My Getac w130 is now on service and running perfectly and also my motorola ML850 by just swapping the harddrive. its a perfect match. The only difference is its name. Now! I am looking up to install an internal gps and its on progress. here is the photo:

ohlip



ohlip any new info on how to make a few of the hdd connectors or locate any ?



If you could find a wrapping tool, the one that the tech use on tel. termination(old style termination), You can use the harddrive connector from panasonic Cf-48 by terminating the other end of it to the MBO. terminal. I just used that temporarily during the time I am hunting the oem hdd caddy for this rig and it works but its a pain in the as...on terminating the cable individually.


ohlip



Ohlip, i see that you have a backlit version aswell, well, as unfortunate as it is I'm selling my ML850 up on E-bay, also I'm selling my vehicle mount, then later a 850 for parts and repair (its REALLY F*****d up) and finally my car adapter for it sometime. Also, I need to know if a W130 will work in a motorola mount, i dont know if you could test this, but i need an answer. Also, I didnt see anything about gps in that pic you uploaded..

http://cgi.ebay.com/Motorola-toughb...ptop?hash=item4399656fbf&_trksid=p3286.c0.m14

Cheers! Email me if you need drivers!



freed....29. Yup! the W130 has no difference with ML850. Exactly the same board, case except for the lid logo. FYI.


ohlip



Hi all - and thanks in advance for your assistance.

I know this has been covered before but can't find the resolution.

I recently acquired a working ML900 sans HD and HD caddy. Of course every parts unit on Ebay and elsewhere is also missing the same parts, as most of these were LE or municipally owned and to trade they pulled the HDD WITH the caddy and threw them all in the dumpster.

Any help on locating a caddy or a flex cable/connector would be greatly appreciated.

Thanks!

Ron in Michigan



Hi
All .... I just got a ML 850 from Ebay and I'm looking to upgrade the HD and RAM. Can anyone share the manua and drivers?
Thanks
Martin



Specs can be found here:
http://www.motorola.com/staticfiles...ments/staticFiles/ML850_specs.pdf?localeId=33

You won't need drivers for replacing the ram and hard drive.

Although it doesn't mention what type of hard drive it uses, I would assume the ML850 uses the older 2.5" IDE interface hard drives.



Guys,

I can help with the HDD cable, I've got 4 of these machines, they are pretty good, but my problem is the BATTERIES, USD140 for one!

Do you know where I can get some for a reasonable price?

Nick



Kawasaki KLR?

$140 sounds reasonable, I recently bought 10 for $195 each, but at least they were fresh 7800mAh from Motorola. Consoling myself.

On a side note, I also had success putting 1GB SO-DIMMs in them, Patriot PSD1G33316S to be exact, PC 2700, 2.5v.



I know it has been a while since you posted but I'm in need of the ML850 drivers, I'm having touchscreen issues that I can't resolve on my own.

Thanks.



Hi! Its been a while since I've visited this section. may I know if you are still have the HDD cable ribbon for ML850/Getac W130? Let em know. Thanks


ohlip
