SN10E2 10.1" Netbook Thread

SN10E22BU3221

• Models / UPC Codes Pearl Black (SN10E22BU3221) / 842651005382
• Pearl Red (SN10E228U3221) / 842651005375
• Processor / Cache / FSB Intel Atom N450 (1.66GHz) / 512K L2 Cache / 667MHz FSB
• Operating System Windows 7 Starter
• Resolution 1024 (H) × 600 (V) LED-LCD
• Display Size 10.1" LED-LCD Widescreen (16:9 Diagonal) Color Active Matrix TFT (Anti-Glare)
• Chipset Tiger Point (NM10)
• Graphics & Video Module Intel GMA3150
• System Memory 1GB DDRII 667MHz
• Hard Disk Drive 250GB (SATA)
• Battery 6 cell battery (5200mAh) > 8 hours (Win XP @ idle mode); > 6.8 hours (Win 7 @ idle mode)
• Audio 2 Speakers, 1W × 2 (SRS Premium Sound)

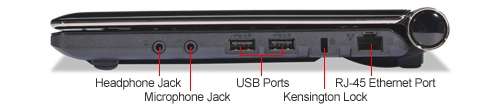

• I/O Terminal 3 × USB 2.0 Ports, VGA Port (Output resolution up to 1400 × 1050 @ 60Hz) , RJ-45, Headphone-Out, Mic-In
• Card Reader 3-in-1 Card Reader: SD / MMC / MS

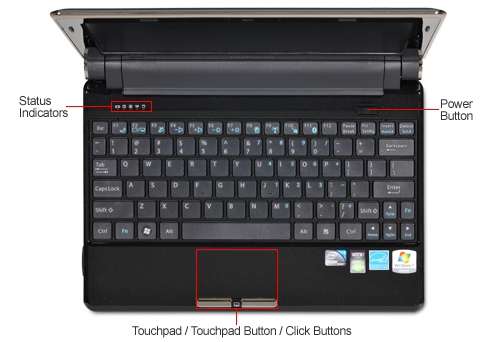

• Touch Pad Multi-Touch Function
• Webcam 1.3MP
• Networking 10/100/1000 LAN, 802.11b/g/draft n
• AC Adapter Input: 100-240V (1.2A) 50~60Hz
• Output: 19V/2.1A
• Kensington Slot Yes
• Net Dimensions (W*H*D) 10.4" × 8" × 1.25" with Battery
• Gross Dimensions (W*H*D) 12.2" × 11.3" × 3.6"
• Net Weight 2.9 lbs.
• Gross Weight 5.1 lbs.
• Weight w/o Battery 2.1 lbs.
• Certifications FCC Class B Certified, UL, CSA (CUL), RF Module Certificate, RoHS, Windows 7, Windows XP, Linux FoxMC
• Package Contents HANNSbook, Power Cable (1.8m), AC Adapter, Warranty Card, Quick Guide, Protective Jacket, Cleaning Cloth, Driver DVD (Manual + Win XP + Win 7 Drivers + APs (SRS Premium Sound, Adobe Reader, WinRAR and Symantec NIS)
• Warranty 1-Year Limited (1-Year Parts/Labor, 1-Year LCD/Backlight) / 6-Month Limited Battery & Power Supply

SN10E2BBU3221

• Models / UPC Codes Pearl Black (SN10E2BBU3221)/ 842651005924
• Pearl Red (SN10E2B8U3221) / 842651005917
• Processor / Cache / FSB Intel Atom N470 (1.83GHz) / 512K L2 Cache / 667MHz FSB
• Operating System Windows 7 Starter
• Resolution 1024 (H) × 600 (V) White LED
• Display Size 10.1" LED-LCD Widescreen (16:9 Diagonal) Color Active Matrix TFT (Anti-Glare)
• Chipset Tiger Point (NM10)
• Graphics & Video Module Intel GMA3150
• System Memory 1GB DDRII 667MHz
• Hard Disk Drive 250GB (SATA)
• Battery 6 cell battery (5200mAh) > 8 hours (Win XP @ idle mode); > 6.8 hours (Win 7 @ idle mode)
• Audio 2 Speakers, 1W × 2 (SRS Premium Sound)
• I/O Terminal 3 × USB 2.0 Ports, VGA Port (Output resolution up to 1400 × 1050 @ 60Hz) , RJ-45, Headphone-Out, Mic-In
• Card Reader 3-in-1 Card Reader: SD / MMC / MS
• Touch Pad Multi-Touch Function
• Webcam 1.3MP
• Networking 10/100/1000 LAN, 802.11b/g/draft n
• AC Adapter Input: 100-240V (1.2A) 50~60Hz
• Output: 19V/2.1A
• Kensington Slot Yes
• Net Dimensions (W*H*D) 10.4" × 8" × 1.25" with Battery
• Gross Dimensions (W*H*D) 12.2" × 11.3" × 3.6"
• Net Weight 2.9 lbs.
• Gross Weight 5.1 lbs.
• Weight w/o Battery 2.1 lbs.
• Certifications FCC Class B Certified, UL, CSA (CUL), RF Module Certificate, RoHS, Windows 7, Windows XP, Linux FoxMC
• Package Contents HANNSbook, Power Cable (1.8m), AC Adapter, Warranty Card, Quick Guide, Protective Jacket, Cleaning Cloth, Driver DVD (Manual + Win XP + Win 7 Drivers + APs (SRS Premium Sound, Adobe Reader, WinRAR and Symantec NIS)
• Warranty 1-Year Limited (1-Year Parts/Labor, 1-Year LCD/Backlight) / 6-Month Limited Battery & Power Supply

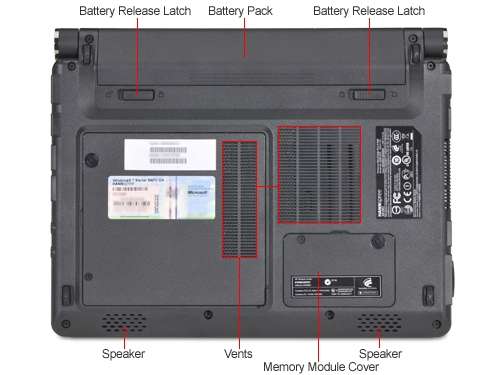

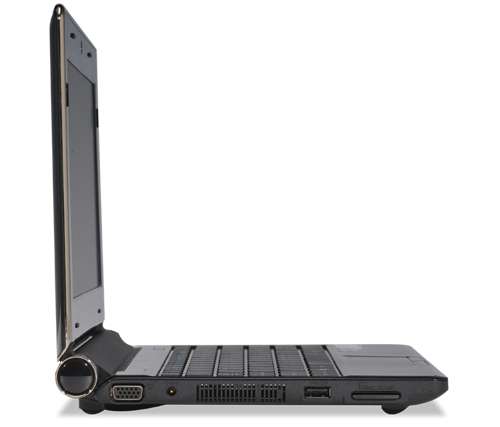

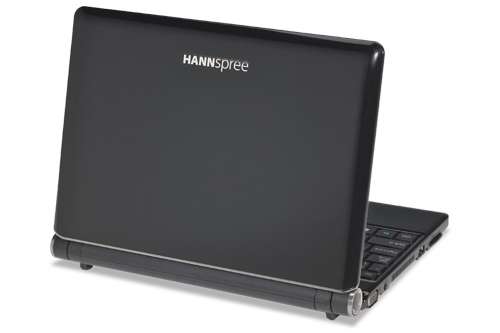

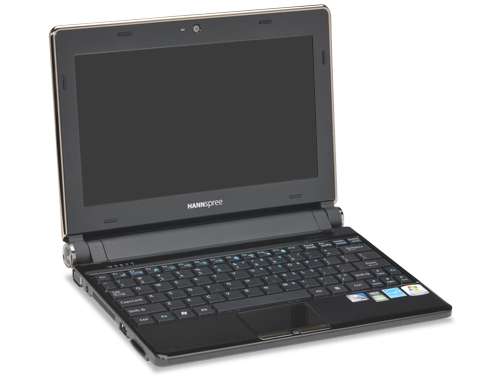

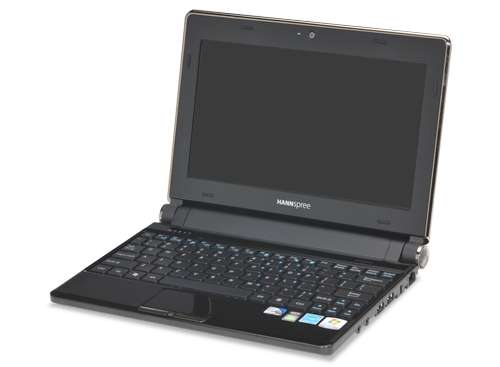

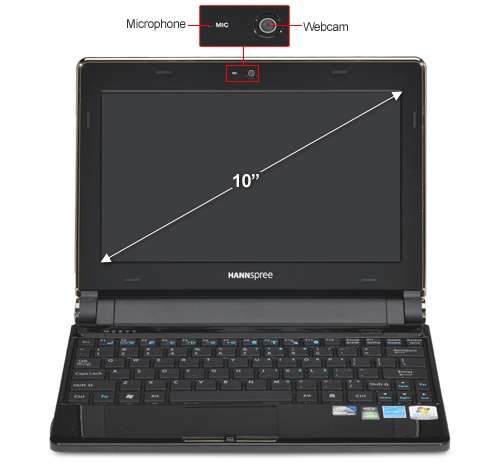

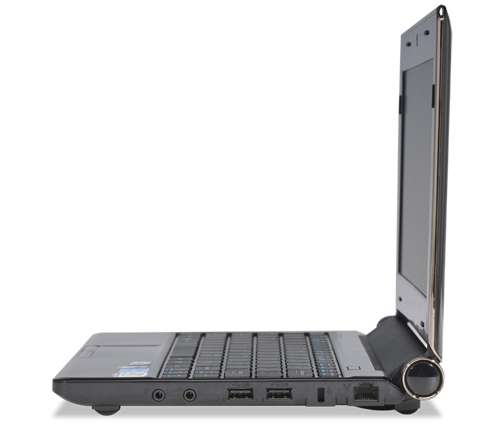

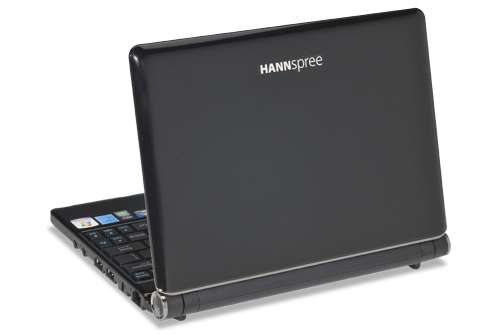

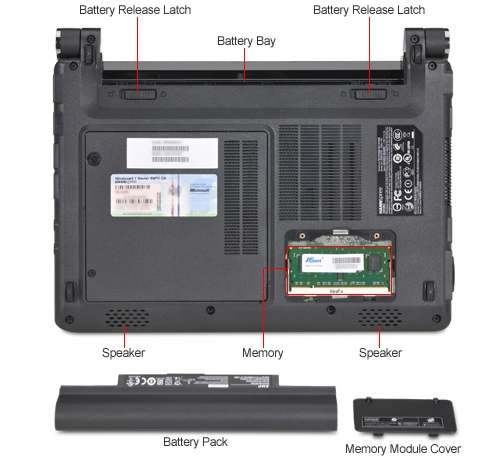

Photos

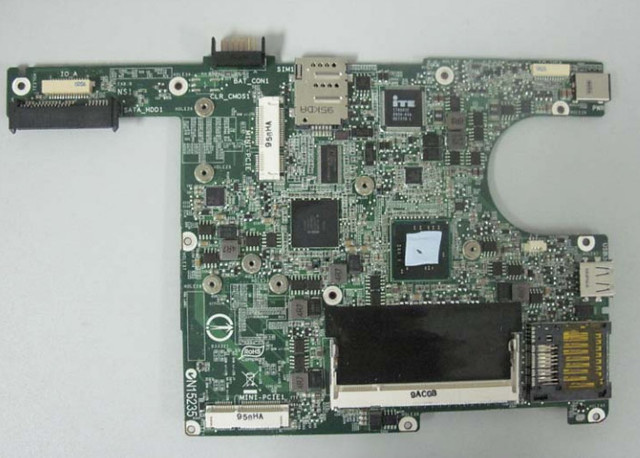

Hardware

Intel GMA3150 - Poor Shader Model support
Foxconn NS20 (Unconfirmed) with Tiger Point (NM10) (Confirmed)

Foxconn wifi module



Placeholder - Links



FAQ

Q: Bluetooth or 3G support?
A: Disabled / Not Installed
