TONGFANG GK5CN5Z / GK5CN6Z / GK5CQ7Z / GK5CP0Z

Have you this version for RTX ?



This is what I'm talking about.



Don't know what causes it, but the laptop won't charge until I unplug the power cable and plug it back in, 180w brick and the latest bios / ec / power fix for the 8750h + 1060 15' model.



Apparently there is something wrong with the daugtherboard that works together with the actual mainboard. All components will be replaced.



Hope it will be fixed for u. I still have no information about the repair.


Verzonden vanaf mijn iPhone met Tapatalk



Strange, it doesn't take that long to diagnose a laptop. For how long are you currently waiting?



Pff, i have this problem around half a year. Send it back 2 times with replaced motherboard and this one still have the same issue.. thinking about getting a refund..


Verzonden vanaf mijn iPhone met Tapatalk



Talking about bad luck. I have a few friends with the exact model and those laptops do not exhibit strange temperature spikes like mine. Out of cheer curiosity, where did you order yours?



Always got an error stating (the integrated );throttlestop failed to start. As if he could not find it. Has someone else got and solve that issue ?

Sent from my GM1917 using Tapatalk



How am I supposed to know what PSU my laptop is supposed to have? Laptop is in signature. Is there a way to find out?

Also, the laptop should NOT just *shut off* completely, it should just throttle back if it can't supply enough power. My machine came with a 180w brick, and I know for a fact that the laptop doesn't draw 180w with just an 8750h and a 1060. There's no way.



I bought it through a dutch dealer and they buy it from PC Specialist. (Recoil II)


Verzonden vanaf mijn iPhone met Tapatalk



I had a problem where it would cut off completely while on battery power randomly. It turned out I had used someone else throttlestop settings and it was causing the laptop to pull more power than the battery could supply. I went back to the post #2627 settings and it has been working fine ever since.



Hi,
You might want to try swapping the port that the SSD is plugged into, I had the same problem using the wrong port on the motherboard.



I also got mine from a dutch reseller. Will be getting my laptop back somewhere next week. I'm crossing my fingers, lol.



Question: I applied this power adapter fix
"OEMsev : "A tool to flash your system when changing adapter and other components."
Found on this forum by @steberg LINK TO FILE(for GK5CN5Z and GK5CN6Z"

And immediately my boot times increased from like 20 secs to more than a 60.
It doesn't make sense why, any ideas?

Overpowered 15+.



For an OP 15 I would think if you have a 180W brick you are fine. I should note, that my laptop (OP 17+) worked ok doing normal stuff. It was just when I went to play a game (even a simple game like CS:GO) that it would try to draw more power to the GPU and would shut down / immediately power off. It did not throttle back like it was supposed to.



anyone here can help me with updating my overpowred 17+ bios? currently im at bios 1.04
i tried going to overpowered support page and downloading the bios from there, inside of it i found those files https://i.imgur.com/vhDWt3N.png
i tried following what OWNorDisown did in his video at 6:50 ( ), but when i do that the window gives me a warning about rom layout being changed https://imgur.com/dVswHrH

i've never updated a bios before, so i don't know if that's normal or not, can anyone help with this?



Hey guys,
when i purchased my OP-LP 15+ (GK5CN6Z) the battery upgrade always seemed tempting but i never had the money to do it. Now that i have the money i cant find the battery anymore (part number: GK5CN-00-13-4S1P-0). Any1, by any chance, has any idea where to still get one? Someone who wants to sell his maybe?
Thank you & good day.



i9 models now exist: https://www.cyberpowerpc.com/category/gaming-laptops/



The i7 is running hot already.



Hey Guys,

Trying to optimize TS settings and needed to confirm if im understanding how things work. Using the general settings found in here that ive tried experimenting off of.

First off, cant seem to get passed 3893mhz except for spikes-- does that still count as "3.9mhz"?

When running a CB15 test all cores fluctuate between 3888-3893mhz pl 68-70w the entire test, scores from 1220-1293. Then when doing TS bench on 1024m it will fluctuate between 3880-3893mhz and pl 68-72w until around 70% completion when it drops to 3380-3410mhz pl 50-55.

That would be unstable correct? If so, I would want to lower values till it holds firm?



No, that's the turbo boost running out essentially. Those are on a timer, usually about 56 seconds as default, and after that they drop power draw to 55w as you saw. So no, it's not unstable.



Hello,
Anyone have bios for GK5CN5. Now i have 1.04 bios and looking for newest one? i7 and 1050ti version.



My laptop doesnt seem to work with my Nvidia card but instead wiht my INTEL integrated card.
I have already changed settings in nvidia program to set it to NVIDIA card in globa settings, but still games are laggy.
As u can see it obviously didnt test my NVIDIA card but instead the integrated card which is way worse:
https://imgur.com/Rg8RYzR
https://imgur.com/Q5jNyCA

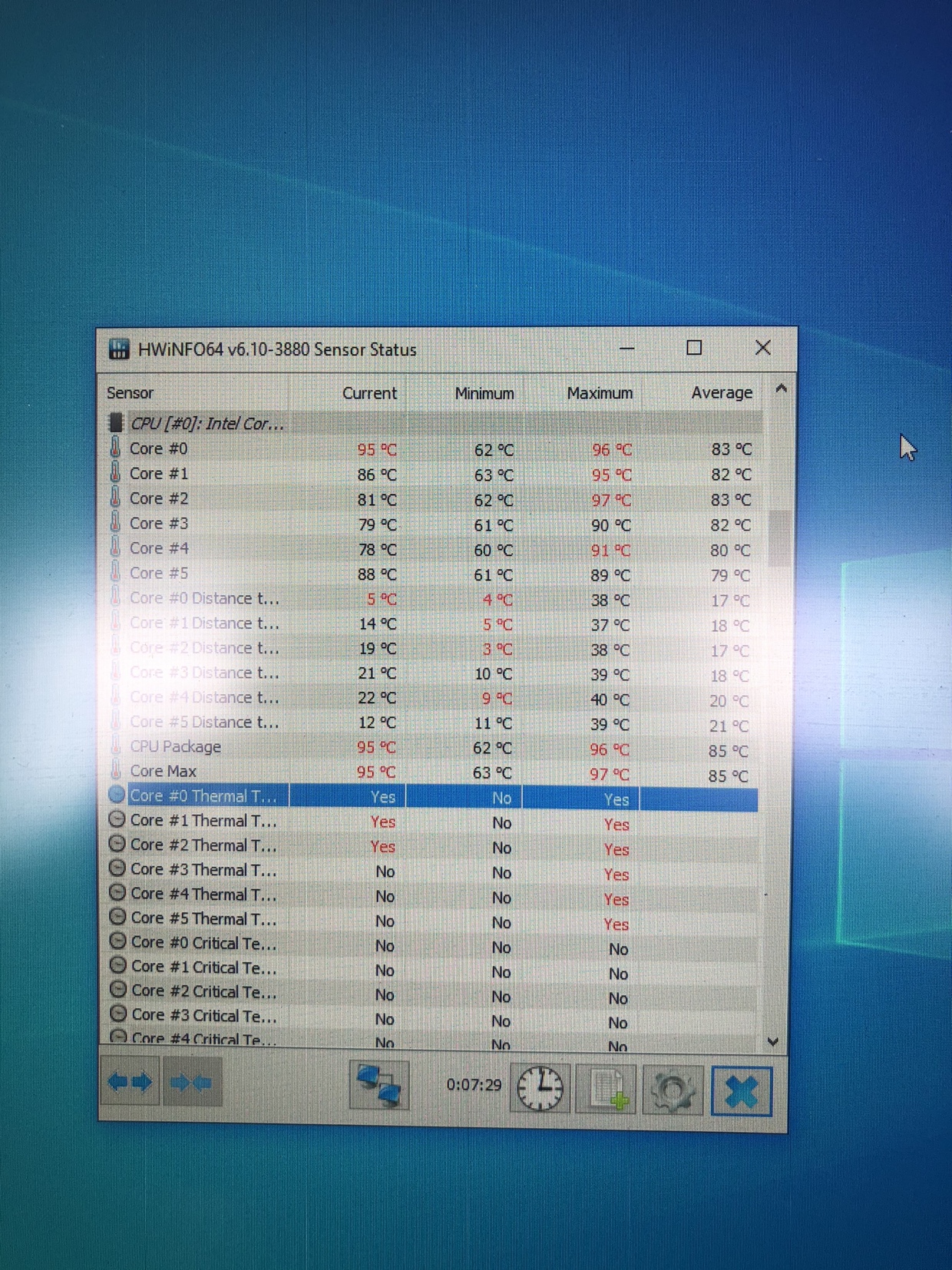

I can’t get these temps under control. Any ideas?

Undervolt applied and using Kryonaut.




Verzonden vanaf mijn iPhone met Tapatalk



I had good luck with IC Diamond.

Never see peaks higher than 85c in long sessions of mordhau 64 player frontline- runs around 70c +/-5c on high settings solid 80fps.



Ever tried DOOM or FarCry 5? If so, what are your tempratures in those games. Mine reach 90c after a while and I applied a modest amount of liquid metal on my CPU and GPU.



Can anyone please repost the OP-LP2 bios and EC i want to downgrade my EC but the link is broken: BIOS 1.05 - EC 1.35.09 - OverPowered - GK5CN6Z / OP-LP2 ( Auto batch)

Thanks

EDIT: nevermind, got it figured out.



What about me????

my laptpo ruyns game. Even tho I have a gtx 1060 in it. I believe its running on integrated card instead of nvidia

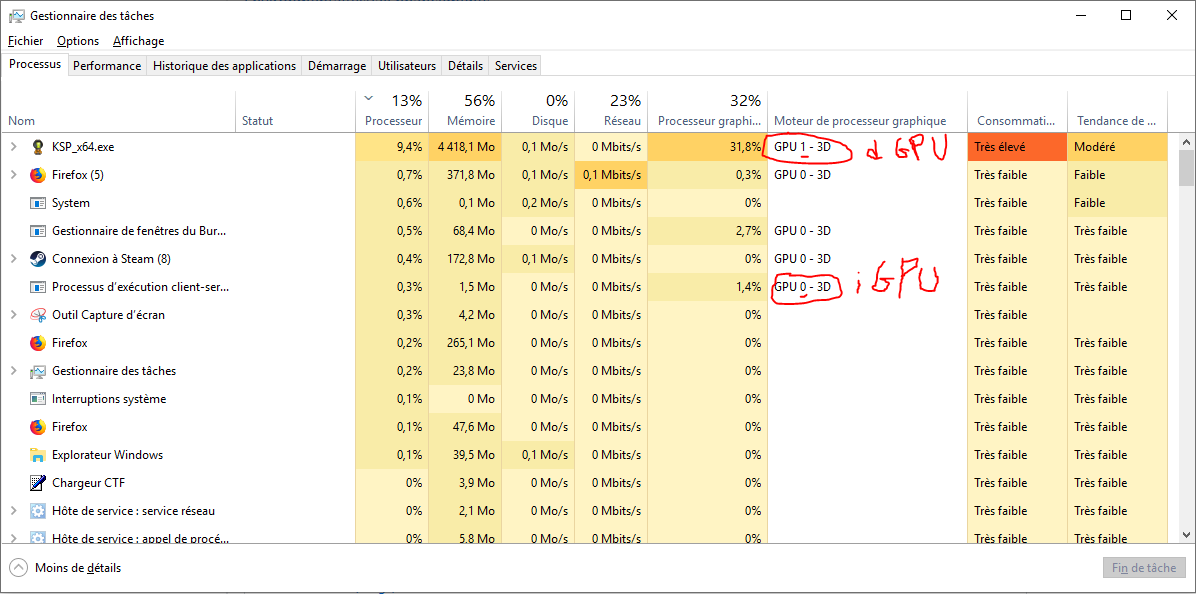

Check the task manager when your game is running. Press CTRL+SHIFT+ESC to open it

GPU 0 means integrated graphics (Intel GPU). GPU 1 mean dedicated graphics (NVidia GPU).



I seem to have a minor issue with annoys me. My Skikk 15GK7Z does not wake-up from standby. Anybody here has experience with this and perhaps found a solution?

Ever found a working solution?



try closing your web browsers, chrome is eating your memory and firefox is up there as well...



Where can i buy 4 cell GETAC GK5CN-00-13-4S1P-0 15.2V 62.32Wh power akku ?



well your wallet may hate me but your laptop won't
these two sites currently have them in stock
or at least SAY they do.... and cheaper than 7 months ago
only $72.35 with free shipping

https://www.replacement-laptop-battery.com/batteries-tongfang-3687.html

https://www.b2c-laptop-batteries.com/getac-gk5cn-00-13-4s1p-0-laptop-battery-135657-3687.html

at any rate and for its worth I just ordered the battery from the first link in previous post
and the order went through... now the waiting game.



Any word on Gen 10 CPU and possibly PD charging support?



price went up to 213€ lol rip



Have you already received the package? Or did you get a shipping id?



guys I bought a VRheadset (rift S)
and my Machineke F11 FP wont recognize the displayport. I connect my headset via displayport to type C adapter.



I dont think any of the type C ports support DP



tldr: they don't actually have it in stock. tried to Hokey Poke me into the 3 cell./.

order processed, used paypal. 2 days later received this in email
"Hi
Sorry , just confirm with the supplier and told this 4 cells &15.2V need to wait more than 3 weeks .
And if your original one is 3 cells &11.4v , you need to take down your hard disk because this battery is much longer than yours .
We have this 3 cells &11.4v available now , cheaper than the one you ordered ,sale $65.83.
If you accept this original 3 cells &11.4v battery , we will refund you the balance and send out for you immediately.
Sincerely Yours
Customer service dept.
Tincy"

big frowning face emoji

then I tore my bicep muscle and am just now putting on my 'adult' hat and venturing into the world



What is the best thermal paste that can be put? (that is in amazon).



IC diamond 7. It's the only paste that doesn't pump out over time.



Thanks for sharing this info here as well.

Have you (or anyone else with the unlocked BIOS) tried tweaking the RAM to run it at 3000? Does the unlocked BIOS have full access to memory clock ratios, timings, voltage and XMP?



Hey Guys,

Hoping for a little bit of help. I have the Medion X6807 which I believe to be a gk5cn6z (shop link: https://www.box.co.uk/30026173-Medion-Erazer-X6807_2644700.html)

It's an i5 8300H 1060 variant.

I am trying to find a suitable battery for the laptop hoping to upgrade to a 4-cell 62wh version.

However on inspection, the current battery is rated to 11.4v - where all others seem to be 15.2v?

Any ideas?



The 4 cell 62WHr version is a 15.2v battery while the normal 3 cell version is a 11.4v. It's meant to be like this.
https://www.laptop-battery.org.uk/laptopbattery/1005072.htm



I assume it'll go bang it I put the 15.2v in?



Nope u gotta increase the voltage to increase the WHrs



Really? That doesn't sit right?



Well thats how it is. The bigger battery has more voltage and it'll still work fine with the laptop.
