TONGFANG GK7CN6S / GK7CP0S / GK7CP7S

Not positive how eluktronics applies their liquid metal but I wouldn't be worried about it leaking. They don't seem load it on to the point where it will ever leak out under normal conditions. But I'm sure if you dropped the computer enough times with a decent amount of force it could possibly happen. Mine actually had to get redone by them because it was a little thin on part of the die and one of the cores. I'd assume they use a brush, but I could be wrong. I'm sure sure if you called them they would be able to give you an exact answer though.

And the keyboard on the 17 is totally usable. It's not the best keyboard I've ever used, but I don't have any major complaints with it. The spacing is a little bit tight on the number pad, but it's not a deal breaker. And the lighting on the keyboard is adequate. Not terribly bright but I haven't noticed it being washed out in direct light.



I spoke with a few guys over at eluktronics and hid and I've been told that any damage done or as a result of liquid cooling is fully covered by the warranty. They also use measures to keep it in place, my guess is tape, dams etc). I'm also pretty sure that liquid metal is a significant decrease in temp, and not just 2 degrees.

The only exposure I had with the mech 17 chassis was the OP laptop but I read it's been changed. It's not that the rgb is bad but more not as good as msi. They just don't appear to be as bright and the msi definitely has more intuitive settings and modes. I'm the type to set it to one color and leave it for months so... It's all the same to me but if you're an RGB aficionado, this doesn't appear to be all of that lol.

I can't speak on the mech 15 but basing it on m previous laptop which was a full behemoth and a half, the number pad is pretty cramped and really close to the main keys. I'm still waiting on my unit, which should be shipping anyways day now... I'll keep you posted. Based on own or disown, dave2d and a few others the keyboard is just fine thought. Better tactile feel than the ge75 I'd guess but the msi will have better lighting and rgb software out of the box.



As long as theres a music option for the keyboard RGB, Ill be happy



Applying liquid metal can be tricky and its performance can degrade over time, especially if the heatsinks are uneven and any material pumps out. I had this issue on my OP 15+ with thermal grizzly. Initial temps were great but degraded over time. I did a re-paste with ICQ diamond and have had a much better experience with that. I would definitely pay for the upgrade though as any issues with application would be covered under warranty.



Does anyone know if they will be releasing a Mech-17 G2 like the Mech-15 G2

I only as because the build quality and keyboard look to be nicer on the G2 version of the 15". It looks like there is more metal on the G2 version as well.



Not sure but take it from someone that came from a full metal laptop with impeccable finish and absolutely phenomenal build quality (omen x 17), be careful of what you wish for lol. The arm / palm rest area would dig into my wrist / forearm. I'd have to lay a microfiber towel for prolonged use lol.

This could prove to be problematic as one of the complaints of the G2 was the "unrefined" metal edges. If you tend not to rest your arm on the deck then it's a non-issue.



I did read that about the edges....Thank you for the response.



Does the keyboard have a music option for the lighting like this? :

If so, can someone record it? Preferably with eurobeat for max dorifto



No, mainly cause no one has programmed the keyboard to do that and the Chinese developers have came up with a bad looking music mode. Maybe Rev_Center might be able to do it some day.



So anyone know when Elucktronics will stop offers of the 144hz panel as standard option? Guess its a Tongfang sourcing issue .



Where did you hear they were stopping them?

Sent from my SM-G965U using Tapatalk



Not stopping entirely just now making it a purchase option instead of standard.

Such as which card is better suited for a 1080p panel the 2060 or 2070?



Has anyone found a sleeve for this chassis? It's closer to 15.6" laptop dimensions but slightly over, so it doesn't fit 15.6" sleeves but 17.3" sleeves are too big



Maybe I should place my order soon on Amazon so I don't have to pay extra for it.

Sent from my SM-G965U using Tapatalk



I think making your own sleeve is the better option, most sleeves were designed for laptops like macbook pros and xps 15 which isn't anywhere near the thickness of the TF 17.



Just got a heads up that eluktronics received a shipment of new units yesterday. Originally placed my order on the 2nd but due to backorder on the same exact day, just my luck lol, it might be leaving today or Monday at the latest.

Also when you break it down, ordering from the site comes out to be $50 cheaper factoring specs. I was going to go with amazon since I'm a prime member but they're not shipping those same day anyways so I just placed it in the site. The only upside on amazon is guaranteed painless returns, although eluktronics did confirm they'd match amazon, but you never know lol.



Only reason I'm ordering it through Amazon is because I've had $800 in gift cards sitting in my account for years.

Sent from my SM-G965U using Tapatalk



They accept amazon pay as well. It's also literally the biggest reason I went through their site haha. I had 600 sitting in paypal, I just ended up using it and splitting the difference that way lol.

Also, just got a call as they were building it, went over the unit as they were working on it. Changed status to shipped, so far so good.



Hm the Mech 17 is unavailable on Amazon



Just ordered it through Amazon. I wonder if I call them tomorrow, if they they will offer me the promotions that they offer if you built the laptop on their website.

Either way, I ordered :

Mech-17 with 2070, 16gb Dual Channel, 1TB Electronics SSD and the thermal paste upgrade.

It's saying it will be here Tuesday but I may just call them tomorrow and ask if I can pick it up from their facility on Monday considering I only live 45 minutes away.

Sent from my SM-G965U using Tapatalk



Uh? I just placed my order for it 30 minutes ago.

Sent from my SM-G965U using Tapatalk



Alright it's back now, worried for a moment



I bought the Eluktronics Mech-17 G1R with an i7-8750h and an RTX 2060. My question is, will this 16gb (8x2) RAM fit in my laptop? It is the CORSAIR VENGEANCE SODIMM 16GB (2x8GB) DDR4 2666 C18 Laptop Memory Kit from Amazon.

https://www.amazon.com/gp/product/B01BMMVNL4/ref=ox_sc_act_title_4?smid=ATVPDKIKX0DER&psc=1



Congrats on your purchase! I do not have experience with the Corsair RAM, though it will most likely work. The best RAM I know of for this laptop is Hyperx CL15. https://www.amazon.com/Kingston-Technology-HyperX-HX426S15IB2-16/dp/B01N2VUOBJ?th=1



Thank you for the suggestion! It also happens to be a dollar cheaper lol. May I ask why it’s the best for the Mech-17?



Lower timings my good sir



Need help with a keyboard question:

Im in the UK and have two resellers in mind: CyberPower and PC Specialists. CyberPower can actually get the same specs AND a free controller for less than PC Specialists but they only have a US keyboard.

My question is that can I replace the different key caps with the UK ones? For this to work, the left shift and enter key would have to have a 2nd button below it. Could someone check that it does? Everything else should be the same.



Here's the left shift portion of the keyboard on the US version of the mech-17.



Right, can you take off the keycap and picture whats underneath?



Sure. I'll do that this evening.

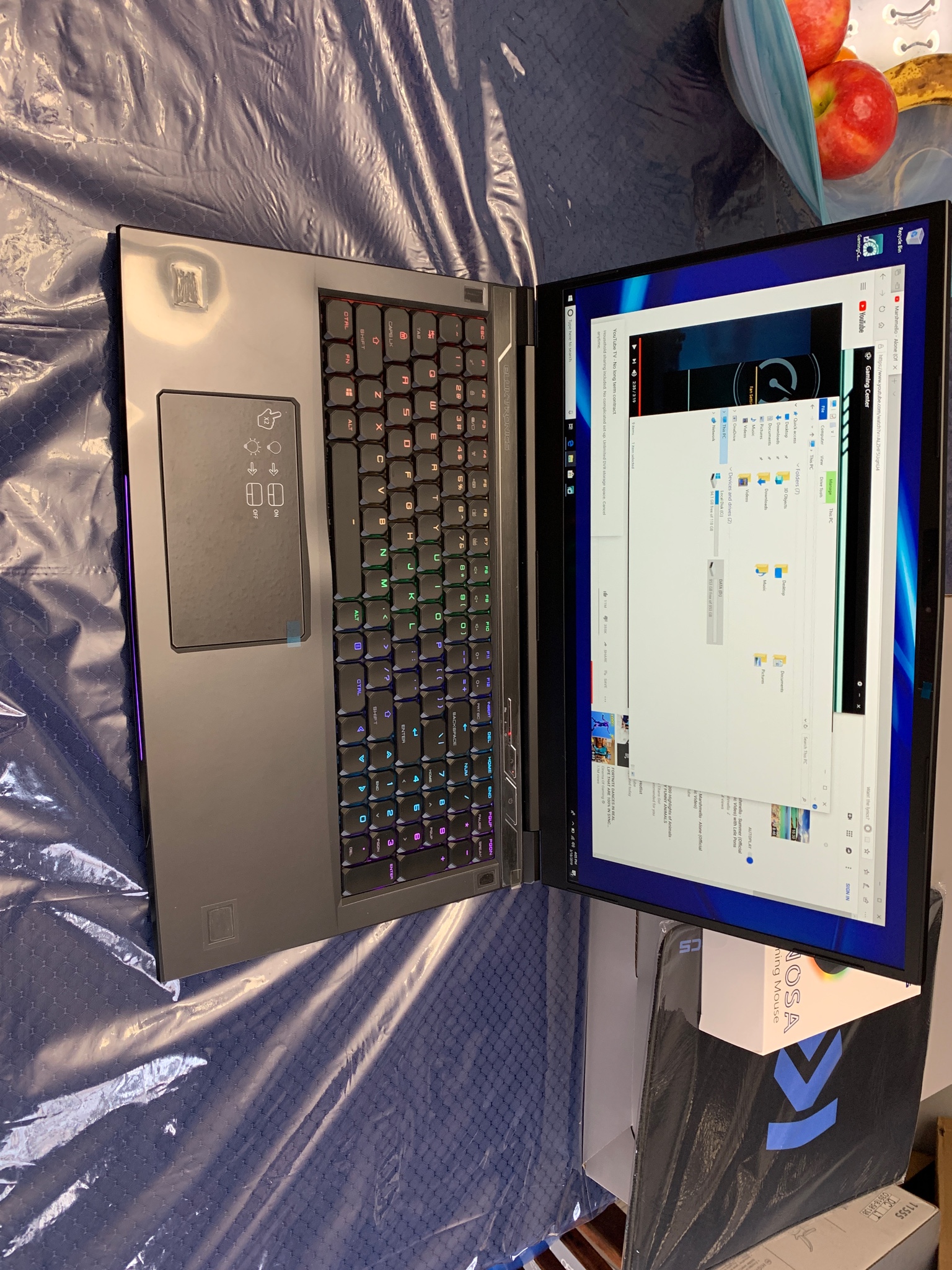

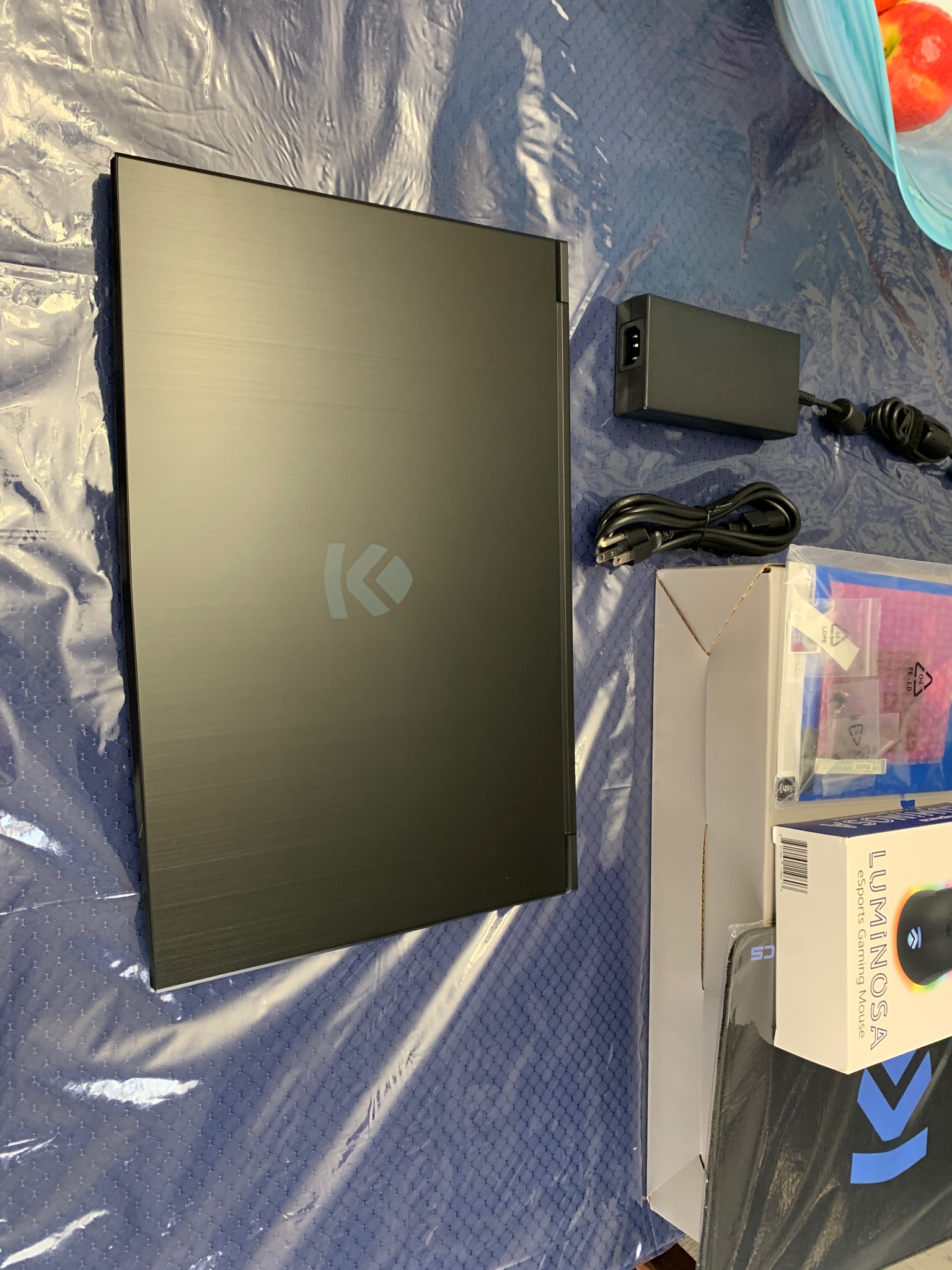

It just came! Initial impressions are much better than I expected. Did a once over to inspect it and go over initial setup going to run through benchmarks and stress testing, if all checks out I'll go ahead and swap out the drives and install a clean windows pro.



I can confirm it has a music preset and I tried it off the cuff, it's there and it interacts with the audio, but Its not too snappy.



Can you post a video on it please? Preferably with eurobeat xD

Also, I wonder why TongFang didn't try to put an RTX 2080 or even the MaxQ in this chassis. Looking at other peoples reviews, it seems like it would be capable of handling it.



Mine will be here tomorrow. What thermal paste did you go with?

Sent from my SM-G965U using Tapatalk



Im in the process of reinstalling once I get it up and running I'll grab a video. Also regarding the 2080maxq, it looks like the 2070 is right on par with it based on the reviews I've seen. Same with the 2060 vs 2070 max q. Whether or not the chassis can handle the 2080, Idk. One thing I have to say, it's surprisingly thin, granted I'm coming from a behemoth so maybe it's just me. Despite the size, this unit seems to have a solid cooling system.

I went with the liquid metal option. I ran aida64 stress test and under 100 load with turbo fan on It settled in at 69-71 with an initial spike and max of 81. I swapped the stock 128gb nvme with a 512 nvme so once I'm back up and running I'll run the full barrage of tests for a better idea.



Very nice. I did a ton of research for my purchase and I personally don't think you can find thermals this good in a laptop this size. The MSI GE75 doesn't have as good of thermals and MSI is known for their cooling. Asus doesn't even come close and don't even get me started on Alienware. The only one that has as good cooling is the Lenovo Y740 and that's only because they decrease voltage. Benchmarks are noticeably better on the Mech 17.

I ended up going with the Eluktronics 500gb SSD and plan on purchasing a Samsung Evo 1TB down the road.

By the way, have you out a undervolt on the CPU?

Sent from my SM-G965U using Tapatalk



Wow! Just received mine today(got lucky on last week's restock). I downloaded the 10gb driver package off their support page but it looks like it's already got the latest audio, CPU and Mobo drivers preinstalled. I also didn't notice any bloatware, is there really a reason for me to do a fresh format?
Also the BIOS looks new, is there a newer version? I'm running BIOS 1.08 and EC 1.08.09.
Let me know! Thanks!! Will start stress testing tomorrow.



When you hit the turbo button does it alternate between office and gaming mode or does it just kick the fans into overdrive?

As far as bloat I just reinstalled windows 10 pro from scratch just to make sure.



There's no need to do a clean install. The windows image that they install truly is bloat free. Enjoy!! What configuration did you go with?



Okay cool, any idea on if that BIOS + EC is up to date? No customization as got the Overpowered 17+ (1060GTX) from Walmart



Not sure in regards to the bios. But from what I've gathered they are interchangeable between vendors if you choose a comparable configuration (ie. The same gpu/cpu options). I know companies like eluktronics keep their support pages up to date with the most recent bios versions. You could always cross reference with the version available on their website.



I currently have the latest BIOS according to Elulktronics (v 1.02), as @LamsonMusic mentioned, the BIOS varies between 1060/2060/2070 units and some are american megatrends and others vendor branded.

Apparently the new Eluktronics Bios has removed the ability to hit the turbo fan but instead swaps between gaming and office mode... which is kind of lame lol



Good point. I didn't even think of the change to the turbo button with the new bios. Then again I switched my fan profile to the user created fan manager found a few pages back in this thread. I have it set to run the fans at turbo speed whenever Temps excede 65 degrees. So much easier than having to toggle the turbo fans through the gaming center every time I want to sit down and play.



Oh, really? Would you happen to have the link readily available, might give that a go, I'd much rather have it automated too.



Link should be at the top of page 54 http://forum.notebookreview.com/threads/tongfang-gk7cn6s-gk7cp0s-gk7cp7s.825461/page-54



Dunno Eluktronics says they do a clean install



thanks! can't wait to set it up and tinker with it.

So far, i gotta say i'm really impressed with this unit. For $1800, it's a hell of a package :i7, rtx2070, 144hz Screen, 16gb 2666mhz ram, 1TB NVME SSD + 128gb , Liquid Metal, Dead pixel warranty.

Pros:

• The build quality is pretty robust. the top lid feel solid, it's relatively thin aluminum so it's not Omen X build or AW magnesium but it's right up there with the Asus and MSI metals.
• Performance is ridiculous. I ran some basic stability benchmarks and ran Apex for 2+ hours and the highest recorded temp was 81 on synthetics (occt and aida 64) and hovers at 71-74 while gaming.
• The screen is snappy and bright!! I'm coming from a 120hz (and 144hz which was plagued with screen bleed) and this is a nice surprise. Very minimal screen bleed and 144hz, with a relatively low response time. (9ms based on Eluktronics specs)
• My previous Omen X 17 has a phenomenal mechanical keyboard and this one, is right up there with it. I was worried about the camped layout but I haven't had an issue yet. It stays cool under load and +1 on adding backlight on the FN. It isn't as tactile and clicky as the omen X but i chose the brown switches on purpose. My wife was not a happy camper with me clickity-clackin' in bed at night lol.
• The chassis has little to no flex around the keyboard and solid around the palm rest area.
• I absolutely love the thin bezels and the form factor as whole. Being this compact i'm now able to fit this laptop in my Northface Router backpack, in the actually built in sleeve. It's super and snug and doesn't scrape on the zipper.

Cons:

• Top lid "bobbles" a bit more than i'd like it to. It's operating as it should, it's smooth as butter and stays put at all angles but if i move the laptop it just bobbles back and forth for a second. Not sure if it's because of the weight on the hinge or i'm just nitpicking.
• Bottom panel plastic is very soft and has more give than i'd like. i'm worried about long term effects especially with heat cycles and plastic drying out (common problem on both of my Sagers)

Meh

• RGB is not really a Con or a Pro but more of a Meh Imo. I'm glad it a per-key RGB but it's also not too hot. It's nice to have options but the animations and options are choppy/clunky. It's also not that bright, if you're coming for regular backlighting, it's more than adequate, but if you've been exposed to good RGB, it leaves more to be desired.
• Sound is meh. It's a non-issue for me as I use headsets when gaming or browsing
• Gaming Center software - It's good that it comes with one, and while it's not as intuitive as the mainstream brand ones (Omen, AW, ROG, MSI) it's still MUCH better than the ones i had on my Sagers but it does look dated, un-intuitive, and just lackluster.



Okay, so just ran into my first issue - anyone experiencing issues with GeForce experience? I'm able to run games and do pretty much everything on and off battery but as soon as I open GeForce experience and start pressing buttons (scanning for games or any tab) I get a BSOD with error listed as "VIDEO_MEMORY_MANAGEMENT".

It was all working fine yesterday but I upgraded to the latest driver from Nvidia and latest GeForce experience version. Is everyone upgrading drivers or sticking with the vendor ones?



This is good to know. I've updated my drivers through GeForce without issue. But i think my last update was a few weeks ago (around the time of the anthem game ready driver update). I'm hoping this isn't a widespread issue. Have you tried doing a reinstall of GeForce experience?



What are the benefits of GeForce? I always just manually download my drivers.
