    Vertical blue line in ilf90

    Discussion in 'Other Manufacturers' started by Ayle, Jul 16, 2008.

  1. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    Hi all, as said I've got a blue line running across my display. It's not gpu related a twisting the lcd then releasing the pressure would usually go away. But now the line actually only goes away when the screen is bent... :( I disassembled the screen and reseated everything but nope it is still there. Twisting the actual panel don't seem to do anything, twisting the panel when it is screwed show results but I still don't know the exact cause of the problem... Any ideas?
    Twisting the screen one way make the line disappear while doing it the other way makes more line of different colors appear. :confused:

    I think I must have voided my warranty somewhere along the way too..

  2. RePaRaQu

    RePaRaQu One name. One legend.

    Reputations:
    214
    Messages:
    1,047
    Likes Received:
    6
    Trophy Points:
    56
    It's broken, is the line near the mid or close.

  3. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106

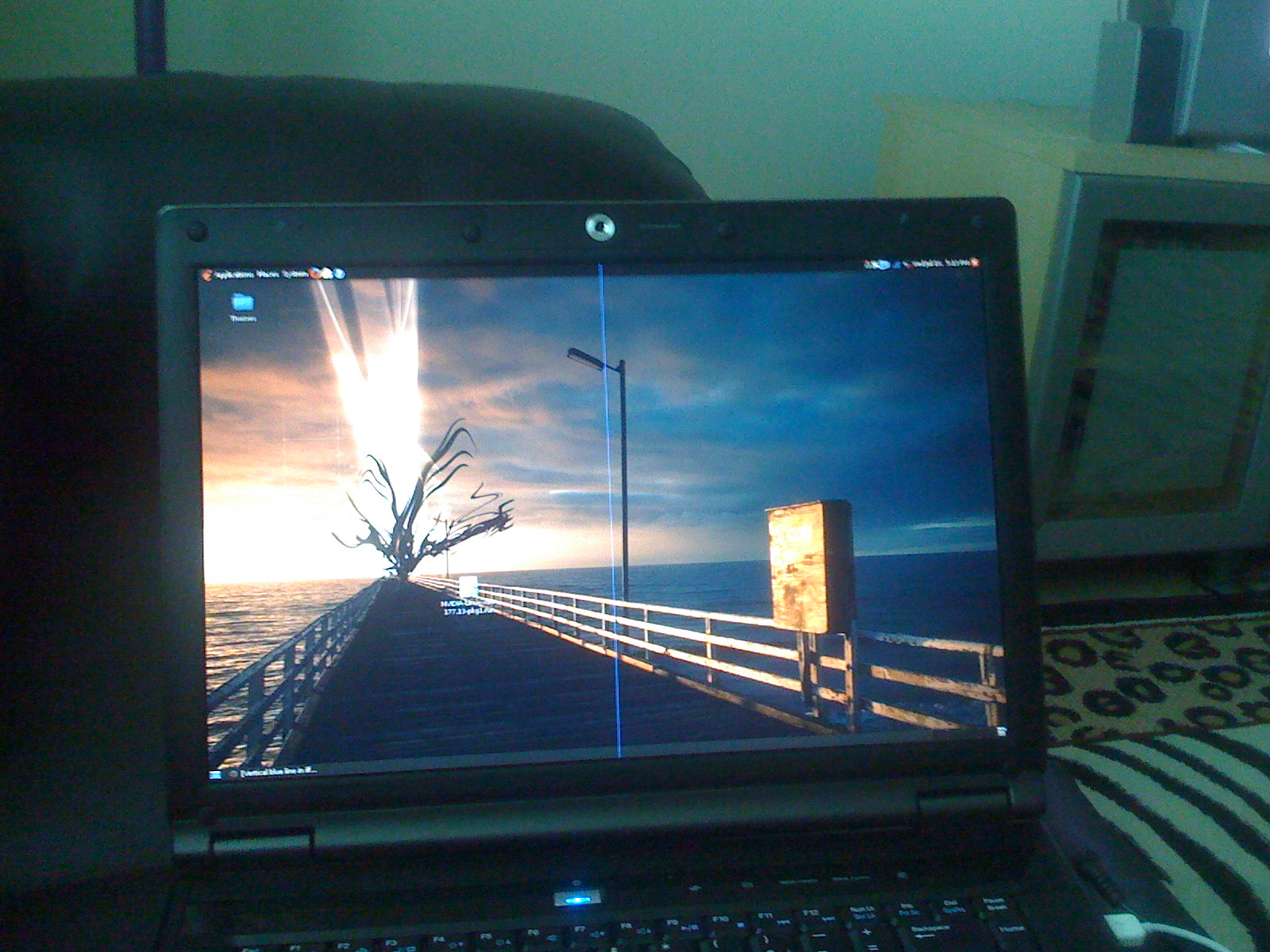

    Right in the middle the display, 1 pixel wide and blue. Are you sure it's dead?


    Attached Files:

  4. Althernai

    Althernai Notebook Virtuoso

    Reputations:
    919
    Messages:
    2,233
    Likes Received:
    98
    Trophy Points:
    66
    Does the line show up even when you're in BIOS?

  5. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    Yup,there is a faulty connection somewhere.


    EDIT: I did some research and apparently my lcd is bad and it's not something I can fix by myself... It doesn't bother me that much but I might have to change my panel somewhere down the road. Do you think a xps 15.4" wuxga panel would fit?

  6. Wirelessman

    Wirelessman Monkeymod

    Reputations:
    4,429
    Messages:
    4,401
    Likes Received:
    0
    Trophy Points:
    105
    Man, that sucks. Are you in the US? Donald from powernotebooks.com can help you with screen parts.

  7. zfactor

    zfactor Mastershake

    Reputations:
    2,894
    Messages:
    11,134
    Likes Received:
    3
    Trophy Points:
    455
    check with smartmicro for lcd panels they are pretty reasonable and can cross ref the model for you to a wuxga if you want.. or lmk i can cross it also if there is one available

  8. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    That would be great. I hope it won't cost me more than getting a new barebone since I've seen the prices of Dell panels and they are between $300-$500... :eek: Anyway I think I'll just wait for it to die completely as I can just ignore the line for now... I think.

  9. Wirelessman

    Wirelessman Monkeymod

    Reputations:
    4,429
    Messages:
    4,401
    Likes Received:
    0
    Trophy Points:
    105
    Lol, you are so funny. I wouldn't personally not be able to live with it.

    Perhaps you can get a desktop background that mask the blue line a little :D

  10. Dirt

    Dirt Notebook Evangelist

    Reputations:
    42
    Messages:
    310
    Likes Received:
    0
    Trophy Points:
    30
    You may check connections indeed, maybe it's just some plug isn't plugged in deep enough or some of it cables cut. All two LCD connectors are located right under touch sanative panels left side.

  11. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    Checked them and they are fine.

  12. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    I don't know where to look... Here is the Everest report about my panel:


  13. RePaRaQu

    RePaRaQu One name. One legend.

    Reputations:
    214
    Messages:
    1,047
    Likes Received:
    6
    Trophy Points:
    56
    Chi Mei is correct, contact powernotebooks for a price indication and on how to install the LCD panel.

  14. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    I already know how to do it ^^ It's fairly straight forward. Interestingly enough the screen on the ifl90 is easier to remove than on my previous POS Acer. I finally found the chi mei panel on the website zfactor wrote. But I also found a wuxga lg panel for the same price on ebay... Since everything is standardized all 15.4" lcd panel should have the same size. I think I'll get that lg panel and report here if it works...

  15. Dirt

    Dirt Notebook Evangelist

    Reputations:
    42
    Messages:
    310
    Likes Received:
    0
    Trophy Points:
    30
    LG one is a bit worser as I can remeber.

  16. zfactor

    zfactor Mastershake

    Reputations:
    2,894
    Messages:
    11,134
    Likes Received:
    3
    Trophy Points:
    455
    lg should be better imo

  17. Dirt

    Dirt Notebook Evangelist

    Reputations:
    42
    Messages:
    310
    Likes Received:
    0
    Trophy Points:
    30
    Someone compared them in September, I think, and told Chi Mei was more colorful or something.

  18. joon82

    joon82 Notebook Consultant

    Reputations:
    20
    Messages:
    194
    Likes Received:
    0
    Trophy Points:
    30
    you are going to get more and more and more lines. Just make sure you leave the lcd alone. Do not close and open your lcd. My toshiba has about 50 lines going through. Started with 1 line then another and another.
    It was almost cheaper to buy new lappy than toshiba's lcd. so got my self new lappy

  19. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    As predicted by joon8 a new teal line has appeared.

  20. JoeNewberry

    JoeNewberry Notebook Evangelist

    Reputations:
    546
    Messages:
    329
    Likes Received:
    0
    Trophy Points:
    30
    Are you completely certain that you've voided your warranty? Perhaps you should contact your reseller to be sure. Having the factory replace the LCD for you under warranty would seem preferable to buying one off eBay and installing it yourself.

  21. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    While that would be preferable I want to try to put a wuxga panel in there, which is not possible if I sent it back. :D And anyway it has received some physical damage so I'm pretty confident my warranty is gone...

  22. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    My wuxga panel will arrive on monday. I'll report here if the swap worked :D
