    Wlan card

    Discussion in 'Other Manufacturers' started by ichbineinberliner, Aug 17, 2007.

  1. ichbineinberliner

    ichbineinberliner Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    Could anyone help me with my wlan card?

    There was a screw up when ordering my 6625wd and the wlan card wasn't fitted at order so now I got it seperatly and I'm going to put it in myself but I'm not sure where to fit the cables.

    On the wlan card there are three "pins" numbered; one, two and three. The cables are coloured white, gray and black. So here's the million dollar question: what goes where?

    Maybe someone can take that one screw loose and take a peak to let me know, that would be awesome :D

    Thanks
    Adam

    ichbineinberliner, Aug 17, 2007
    #1
  2. INCSlayer

    INCSlayer Notebook Consultant

    Reputations:
    14
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    is that the intel 4965 or zeptos own wifi card?

    INCSlayer, Aug 17, 2007
    #2
  3. ichbineinberliner

    ichbineinberliner Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    crazy me forgot that little detail.... :D

    It is Intels wlan card: 4965agn

    ichbineinberliner, Aug 17, 2007
    #3
  4. Megatron

    Megatron Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    i say call the support and ask them to guide you through it

    Megatron, Aug 17, 2007
    #4
  5. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,166
    Trophy Points:
    581

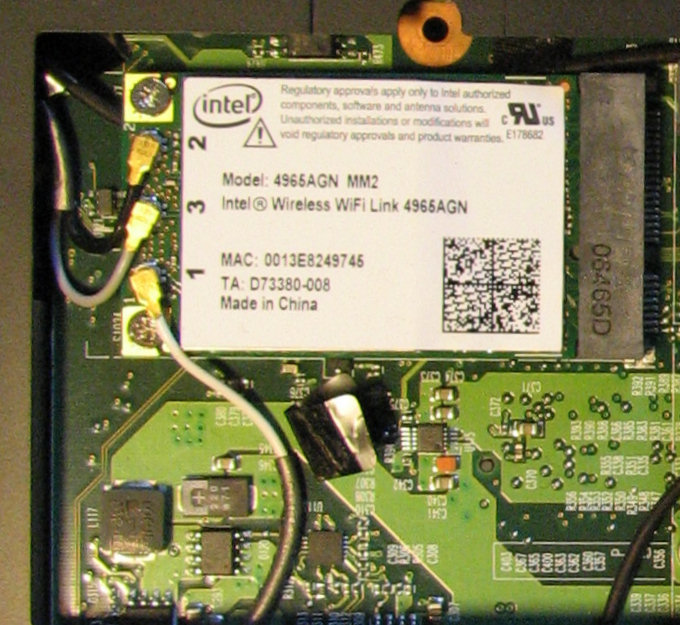

    I attach a photo of the wireless card in my 6024W. It's also got black, grey and white wires.

    1 = white
    2 = black
    and between black and white goes grey as number 3.

    The placement of the wires should line up like that although I wouldn't be surprised if black and white are inter-changeable provided 3 = grey.

    Give it a try.

    John


    Attached Files:

    John Ratsey, Aug 17, 2007
    #5
  6. ichbineinberliner

    ichbineinberliner Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    Thank you so much for your help John! Great help with the picture :D

    Now I only have 2 more griefs with my new wonderful 6625wd and then it's perfect. But first i'm gonna search the forum and then post a new thread if I can't find my answers.

    Untill next time ;)
    Adam

    ichbineinberliner, Aug 17, 2007
    #6
  7. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,166
    Trophy Points:
    581
    Does that mean that your wireless card is now connected and working?

    John

    John Ratsey, Aug 17, 2007
    #7
  8. ichbineinberliner

    ichbineinberliner Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    japp, works great, gonna test what speed i can get using d-link 635 with N standard :p

    I have fiber 100mbt/10mbit so this will be intressting :p

    ichbineinberliner, Aug 17, 2007
    #8
  9. ichbineinberliner

    ichbineinberliner Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    If you're interested I am between 3.5-4.1mib/sec wireless, downloading a hddvd which i offcourse already own. ;)

    fast as hell, with cable i get about 5-5.5mib/sec so it's not to shabby this draft N standard :p

    Thanks again
    Adam

    ichbineinberliner, Aug 17, 2007
    #9
