    fl90 disassambly problem

    Discussion in 'Other Manufacturers' started by schlumpfschlaubi, Jul 1, 2010.

  1. schlumpfschlaubi

    schlumpfschlaubi Notebook Enthusiast

    Reputations:
    1
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    hello,

    yesterday the 8600gt in my fl90 had gave up their life.

    now i try to remove the broken nvidia card with the help of this guide http://ftp.compal.com/Download/NB/JFL92_JFT02/Service Manual/JFL92/030/JFL92_CH5_SM_030.pdf because the referenced guide at asimobile.com is down.

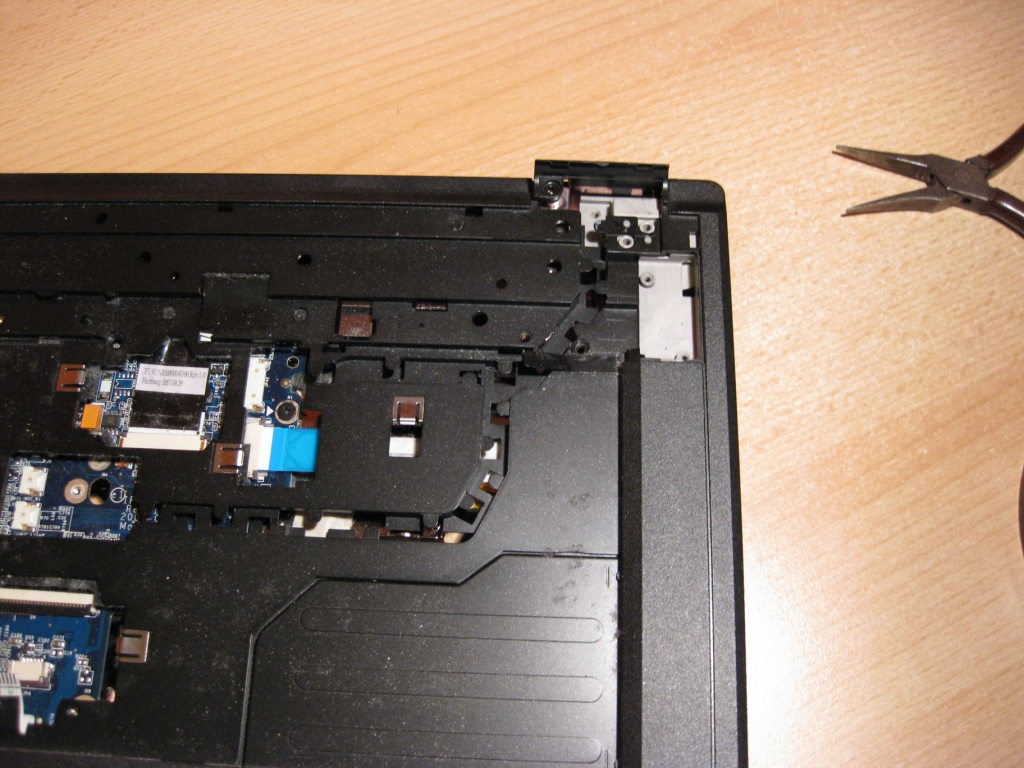

    but i cannot remove the logic upper. all screws are removed and the whole piece i have lifft off except one little area! :-(

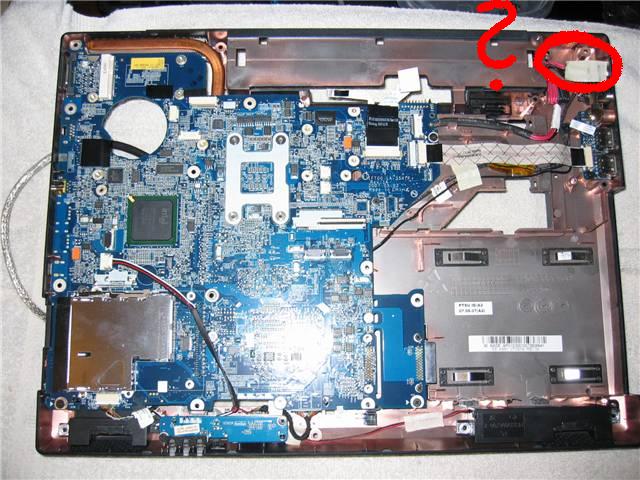

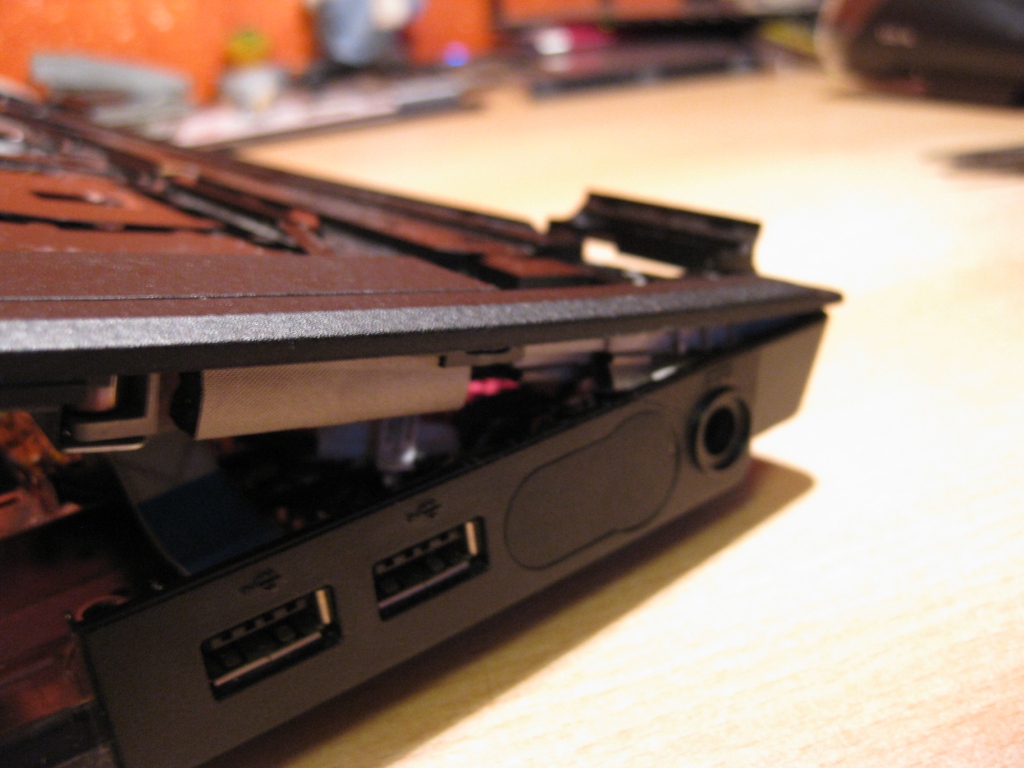

    the area is the upper right at the kensington lock. it seems there is one screw or something else left but there is nothing to remove!?

    thx for help!!

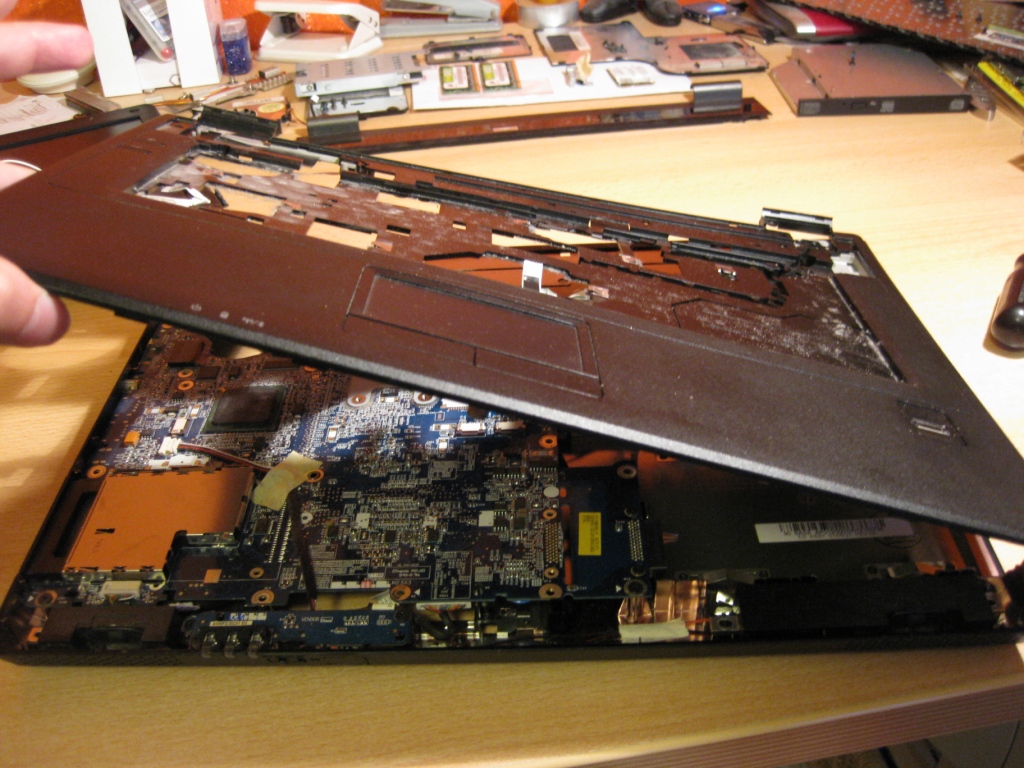

    ps: the pic with liffted logic upper is from another user. it only shall help to describe my problem-


    Attached Files:

    schlumpfschlaubi, Jul 1, 2010
    #1
  2. schlumpfschlaubi

    schlumpfschlaubi Notebook Enthusiast

    Reputations:
    1
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    ok, problem solved.

    it was a broken srew thread. seems to be a little present from my notebook dealer during last maintenance! :-(

    schlumpfschlaubi, Jul 1, 2010
    #2
