    t-out / s-video out how do I get it to work?

    Discussion in 'Other Manufacturers' started by ooxo, Aug 10, 2006.

  1. ooxo

    ooxo Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hi all,

    I have a Zepto 6214w and it is a nice machine.
    Fast and stable.

    Only thing I am having trouble with is the s-video out.
    I can not get it to work.

    First of all I noticed it is not a standard s-video out as far as I know. But I found a converter to tullip that fits from my old Laptop.
    Actually I find it a bit of a pitty that Zepto does not supply a converter.
    Most Notebook manufacterers do I think.

    Is there anybody who knows how to solve this one?
    Or is there anybody else having this problem?
    Maybe advice where to buy a converter?
    Cheers and thanks.

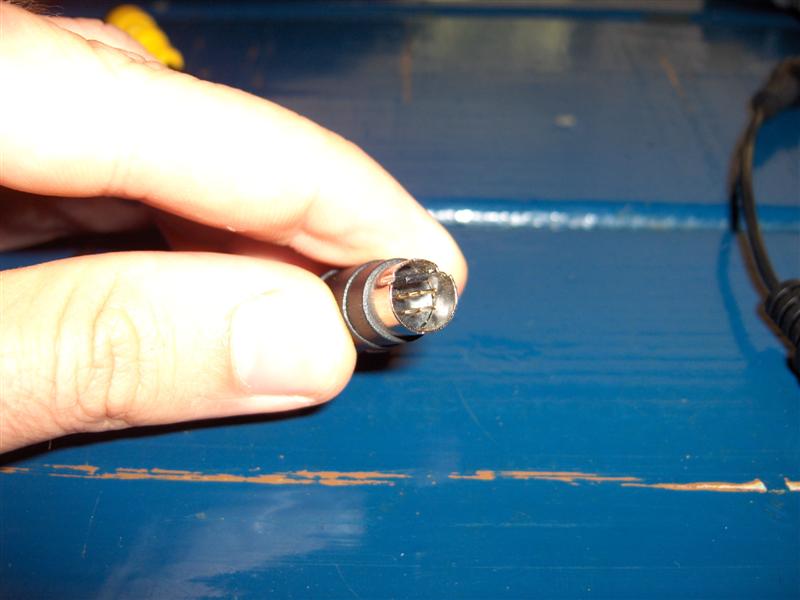

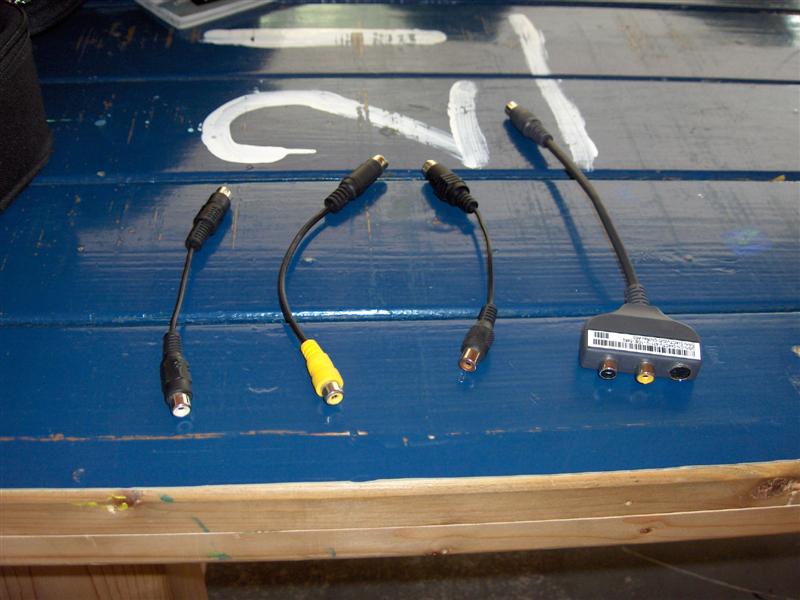

    here are pics of the converters I tried:


    Attached Files:

  2. MKJ - Zepto

    MKJ - Zepto Company Representative

    Reputations:
    6
    Messages:
    193
    Likes Received:
    0
    Trophy Points:
    30
    Hi there,

    you can use any S-Video cable without a problem

    We have tested several setup and they all work. Disregard that the port has extra pins. Just connect your TV and notebook with a straight S-Video cable, that should the trick for you.

    the go to properties on desktop - settings - enable screen 2 and you are moving.

    Remember to set your TV to SVIDEO in not just video

  3. ooxo

    ooxo Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the reply

    Indeed the s-video does work with a svideo cable.
    A pitty however I found that the output does not support composite.
    At least I can not get it to work.

    I found out that most notebook snowdays do not support that. My old Dell did however with a converter.

    So the problem lies in that the a simple converter to composite will not work any more. I ordered a svideo to SCART plug to solve my problems.

    Cheers and thank
    Mic

  4. sadface

    sadface Notebook Enthusiast

    Reputations:
    0
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    15
    i tried a svideo cable but the display came out black and white on my tv screen ??????


    any ideas why

  5. Philip_0729

    Philip_0729 Notebook Guru

    Reputations:
    0
    Messages:
    64
    Likes Received:
    0
    Trophy Points:
    15
    may be incorrect AV-setting on your tv... both mine have a number AV "channels" some are black and white versions of other coloured channels

  6. sadface

    sadface Notebook Enthusiast

    Reputations:
    0
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    15
    i got it working from black and white to colour, i just changed the tv out format to PAL because i have a PAL tv set, its easy to do you can either do it in the built in nvidia nview tv tuner tool or download a nvidia bios tool and change it in there. worked fine for me

  7. LABSmith13

    LABSmith13 Notebook Guru

    Reputations:
    0
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Just to piggy-back on this post. I haev a zepto with a 7600 card and have successfully connected it to my tv using a s-video lead and selecting the cloning thing in the advance graphics properties. The thing that i want to know is that when i selct teh duel monitor option a signal comes out from the s-video and into the tv but it's just the zepto logo and i dont seem to be able to do anything with it. Am i doing something wrong or do i require a specific program to get it working too. The only reason i ask is because the resolution is much better on this and the picture fits perfectly on the screen (even after all teh adjustments on the cloning option.)

    thanks
