    At last: Found a 1GB CF-28

    Discussion in 'Panasonic' started by Springfield, Sep 20, 2011.

  1. Springfield

    Springfield Notebook Deity

    Reputations:
    507
    Messages:
    942
    Likes Received:
    127
    Trophy Points:
    56
    After keeping a sharp eye on the Flea for several years, I finally landed a "rare" CF-28 with 512 in the mobo and 512 Buffalo in the slot, for a grand total of 1024 MB ram! HooRay!! Now I just need to add OEM wifi (Cisco), OEM GPS, and the green emissive keyboard to create the Ultimate (© member Toughbook) antique CF-28 ToughBook!

    I'm stoked! Have all the parts just need to get a weekend without prior commitments or a big Honey-Do list ....

    :D :D :D

    Springfield, Sep 20, 2011
    #1
  2. CF-28 Frankenstein

    CF-28 Frankenstein Notebook Geek

    Reputations:
    3
    Messages:
    87
    Likes Received:
    7
    Trophy Points:
    16
    Try a Ubiquiti SRC WIFI card (802.11a/b/g); gets a great signal (its a 300mw card) and slips right in place of the Cisco card, you just have to plug the factory antenna in on the left hand side of the card, not the right like my Cisco card was hooked up. The guy I bought mine from on EBAY had a few more listed for $27.00 last time I looked.

    Tell me: If you use the factory antenna for the WIFI, what are you going to use for the antenna for the GPS? My understanding is if you tune the antenna for one, it won't work well for the other (I may be wrong, won't be the first time).

    CF-28 Frankenstein, Sep 21, 2011
    #2
  3. Springfield

    Springfield Notebook Deity

    Reputations:
    507
    Messages:
    942
    Likes Received:
    127
    Trophy Points:
    56
    Thanks, sounds like a great idea.

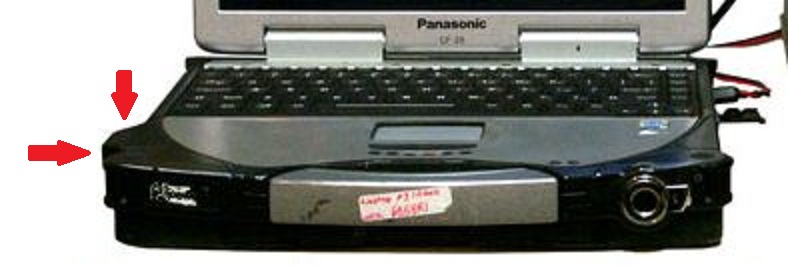

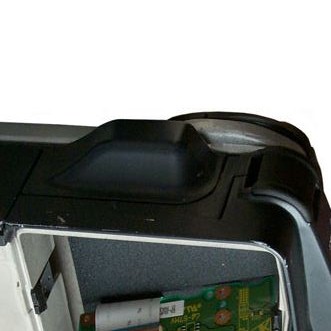

    The factory GPS for CF-28 is mounted under the battery and has a bump-out in the plastic side cover for the antenna. It does not use the antenna on the lid.

    Springfield, Sep 21, 2011
    #3
  4. gristle

    gristle Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Good find! Jealous!

    gristle, Sep 22, 2011
    #4
  5. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    And it looks like this

    http://www.prc68.com/I/CF28Toughbook.shtml#GPS


    Attached Files:

    toughasnails, Sep 22, 2011
    #5
  6. TheSpiritOfRadio

    TheSpiritOfRadio Notebook Consultant

    Reputations:
    36
    Messages:
    205
    Likes Received:
    8
    Trophy Points:
    31
    found one thanks

    TheSpiritOfRadio, Aug 15, 2012
    #6
  7. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    toughasnails, Aug 16, 2012
    #7
  8. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    Don't forget to post on toughbooktalk.com too!

    Thanks!

    Rob, Aug 16, 2012
    #8
  9. TheSpiritOfRadio

    TheSpiritOfRadio Notebook Consultant

    Reputations:
    36
    Messages:
    205
    Likes Received:
    8
    Trophy Points:
    31
    ok thanks you guys

    TheSpiritOfRadio, Aug 17, 2012
    #9
  10. CF-28 Frankenstein

    CF-28 Frankenstein Notebook Geek

    Reputations:
    3
    Messages:
    87
    Likes Received:
    7
    Trophy Points:
    16
    Same guy is selling a couple CF-28 1Ghz / 1MB on Ebay right now.... minus a few parts of course.

    CF-28 Frankenstein, Aug 18, 2012
    #10
  11. circos

    circos Notebook Enthusiast

    Reputations:
    0
    Messages:
    48
    Likes Received:
    0
    Trophy Points:
    15
    For how much? So this left-side plastic is for GPS and left-side on screen-edge is for SIM?

    circos, Aug 19, 2012
    #11
  12. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    No, the 28s never came with any form of digital MODEM; they were strictly analog CDPD. Of course you could plug anything into the PCMCIA slots, but that wasn't built-in and I think they stopped at EDGE on PCMCIA cards. The single USB slot is only Rev 1.0 compliant, and many popular USB MODEMs would just trip the internal current limiting circuit and never boot up. This was why we saw 28s being dumped on the market literally by the boatload circa Feb 2009; that was when the cellular carriers turned off the last of the analog network and you couldn't get service at any price.

    We often made use of it as a WiFi antenna by performing the hack outlined in the CF-28 FAQ; it works well on all but the highest powered (600mw & up) Wireless G cards.

    mnem
    *Still kickin'*

    mnementh, Aug 20, 2012
    #12
