    CF 18 Cursor/GPS problem.

    Discussion in 'Panasonic' started by Lancearmstrong, Feb 28, 2014.

  1. Lancearmstrong

    Lancearmstrong Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Hi guy's.

    I have a problem with my CF 18. When I boot it up and it reaches the homepage the cursor keeps jumping around and random boxes open on their own. I can not take charge of the cursor when this happens in order to use the laptop.

    I did some digging on google and it seems the fault is to do with the GPS and if I disable the GPS my problem will be cured. Trouble is I cant get into the bios to alter GPS settings as I don't have the password. I have stripped it down and disconnected cmos battery for 20 mins hoping to clear bios password but its still present! What would happen if I just unscrew the GPS antenna to the right of the screen? Is there a factory bios password?

    Many Thanks,

    Lance.

    Lancearmstrong, Feb 28, 2014
    #1
  2. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,114
    Messages:
    6,194
    Likes Received:
    2,255
    Trophy Points:
    331
    toughasnails, Feb 28, 2014
    #2
  3. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,963
    Likes Received:
    213
    Trophy Points:
    81
    Sorry we can't talk about the bios password, BUT you can unhook the gps connector from the board.

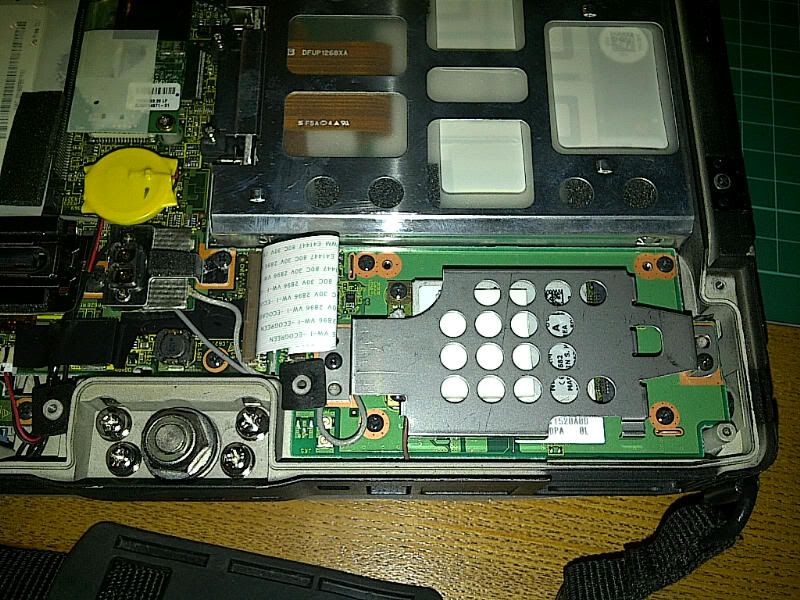

    This is what you are looking for. No need to unscrew it, just disconnect the white flat cable.

    [​IMG]

    [​IMG]

    [​IMG]

    In the lower right corner of that last picture is the daughterboard that contains the GPS. The card on top is WWAN, the bluetooth and GPS is on the bottom of that card so you have to unscrew that daughter card to get to it.

    ADOR, Mar 1, 2014
    #3
  4. Lancearmstrong

    Lancearmstrong Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Cheers guys,

    I've had it apart once already to disconnect the cmos battery. I dont want to take it apart again really. Will unscrewing the anntena do the trick?

    Thanks again.

    Lancearmstrong, Mar 1, 2014
    #4
  5. Lancearmstrong

    Lancearmstrong Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Im thinking unscrew antena and cut the cable then tape it up?

    Lancearmstrong, Mar 1, 2014
    #5
  6. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Why not install the registry patch for the gps and leave it installed?
    No, cutting the antenna cable will not work.

    Shawn, Mar 1, 2014
    #6
  7. Lancearmstrong

    Lancearmstrong Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    I dont need the GPS function and will never use it. Its purley used for auto diagnostics.

    Lancearmstrong, Mar 1, 2014
    #7
  8. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Shawn, Mar 1, 2014
    #8
  9. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,114
    Messages:
    6,194
    Likes Received:
    2,255
    Trophy Points:
    331
    Cutting the antenna will not disable the GPS because the GPS is still installed in the 19

    toughasnails, Mar 1, 2014
    #9
  10. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,963
    Likes Received:
    213
    Trophy Points:
    81
    Yep, you are going to have to open it back up. And if you take the antenna out you will have to get the right sticker to cover the hole up.

    ADOR, Mar 1, 2014
    #10
  11. Lancearmstrong

    Lancearmstrong Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Got the bois password and disabled gps. Its for my use Im a mechanic not to sell on ebay.

    Thanks.

    Lancearmstrong, Mar 1, 2014
