    CF-18 rapidly changing battery numbers

    Discussion in 'Panasonic' started by Kardan, Dec 10, 2010.

  1. Kardan

    Kardan Notebook Evangelist

    Reputations:
    140
    Messages:
    304
    Likes Received:
    14
    Trophy Points:
    31
    I recently accquired a couple of CF-18's: N model, low hours, in beautiful condition, with apparantly new software restorations. Last night I put two of them through a battery recalibration per the Reference Manual. This morning, when I turned the first one on and checked the expected battery life, I was told 6:13. A few seconds later I clicked the battery icon again and this time was told 4:17. I then clicked the icon about every 5 seconds and got the following series of battery life predictions; 4:46, 5:55, 4:41, 4:25, 6:05, 4:16 -- these all in less than one minute. I then tried the othr CF-18; 5:44, 6:02, 5:09, 5:40, 6:24, 5:58, 6:29 -- again, all in less than a minute. No programs running on either, no indications of hard drive activity, neither hooked up to the AC adapter. I continued to use one of the units throughout the afternoon and the battery is working fine and giving hours of power - but still with the constantly changing battery life predictions. Thoughts?

  2. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    The Windows Battery Monitor is based on several conditions, the Battery Calibration being only one of them. Give them a good couple days to a week's workout each, get a few charge/discharge cycles for it to reference against, and those figures should stabilize into something reasonably accurate.

    Run the laptop from full charge to the point where it shuts down for depleted battery; this is how you'll get the most accurate baseline.

    mnem
    Partially charged.

  3. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    To find real battery capacity I count the time that it runs while discharging the battery under the refresh

    Rapidly changing estimates in windows point to a bad cell

    Keep us up to date on your findings

  4. denrosten

    denrosten Notebook Evangelist

    Reputations:
    149
    Messages:
    477
    Likes Received:
    21
    Trophy Points:
    31
    I think the changing is due to the power management of the Intel CPU
    If you monitor the CPU you will see the speed changing often
    If the speed change, the used battery current change too.

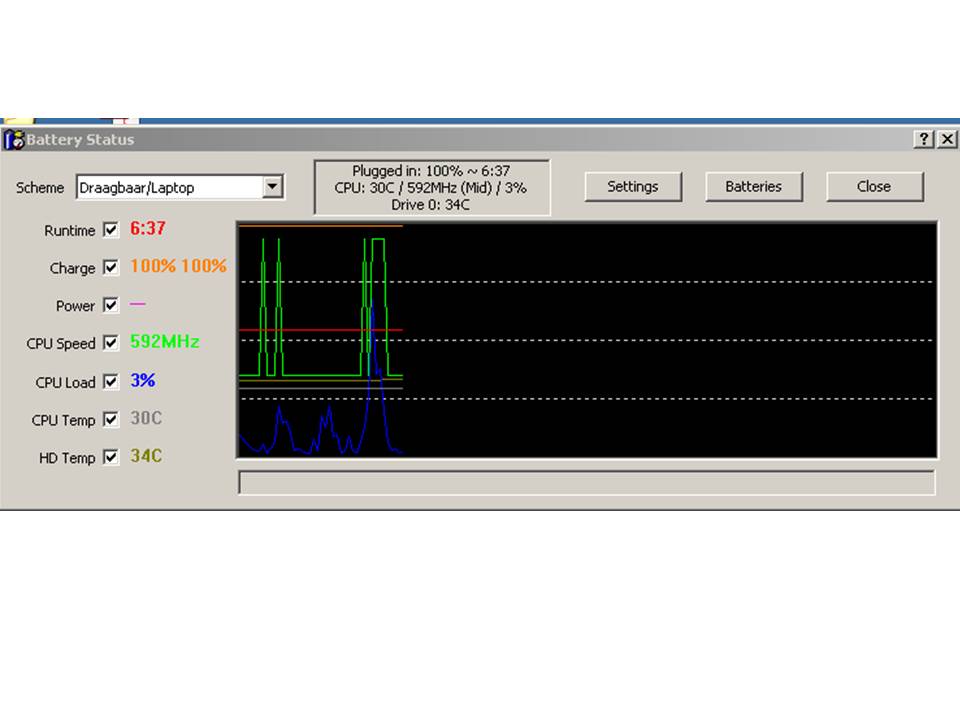

    See picture, green is CPU speed, and Blue is CPU usage.


    Attached Files:

  5. Kardan

    Kardan Notebook Evangelist

    Reputations:
    140
    Messages:
    304
    Likes Received:
    14
    Trophy Points:
    31
    Thanks guys, I'll use it and watch it a bit longer.

  6. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    I have also seen (new to me) batteries do the same thing. I have seen them show 4+ hours... Then be dying on me 30 minutes later. You need to recalibrate them a few times as suggested and then put it through its paces for a few hours to see.

  7. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    The battery indicator calculate depending on your usage thats is why it changing from time to time. In idle it will be stable but when you are working with the machine it will be I say proportional. The heavy you used(multiple tasking) the chances of discharging the battery in less time. Its the way it is. You can not say it exactly how many hours but of course it will be longer on just stay it open or in idle. An excemp..tn if the battery is deffective.


    ohlip

  8. denrosten

    denrosten Notebook Evangelist

    Reputations:
    149
    Messages:
    477
    Likes Received:
    21
    Trophy Points:
    31
    That is what i tried to say in my answer above (I have a little trouble to explain in English :D )

  9. Kardan

    Kardan Notebook Evangelist

    Reputations:
    140
    Messages:
    304
    Likes Received:
    14
    Trophy Points:
    31
    Thanks guys for the thoughts. You may be right as my CF-29 gives the same widely ranging readings. However, I don't think it is a useage issue as you suggest; the readings were taken while the computer was idle (had just been turned on,left standing for a few minutes for any startup processes to be completed and before any programs were started) and all the readings were taken over a period of not longer than 1 minute. I also hope the alternative you suggest of the battery being defective isn't the case since that would mean all three batteries are bad - and the CF-19 was just purhased new from someone here on the forum. I'll keep using them for a while and re-run the experiment and let you know what happens.

  10. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    You will need to let them run on battery and see how long before shutdown
    I have seen cf-18 batterys last 15min,40min,1hr30min,1hr.50min,3hr and more
    It depends on the battery condition
    Batterys if new should last for quite some time
    If sold used....well it's a gamble
