    CF-18B motherboard CN-19 connector?

    Discussion in 'Panasonic' started by cjr, Feb 21, 2011.

  1. cjr

    cjr Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Hello, all.
    I have a frazzled motherboard on my CF-18B. Found another CF-18B motherboard on Ebay, so I got lucky.
    However, when I was getting ready to install the new one, I found that the old, frazzled motherboard has a metal connector at location CN19, while the new one does not.
    I was wondering what this connector does, and if I will let the smoke out if I do not connect this.
    CN19 is a metal strip connector, located between the video ribbon wire and a larger metal connector at CN18 on the bottom of the board.
    Any ideas?
    Should I take it in somewhere and have them swap out the connectors? No way I can do soldering that fine.
    Thanks

    cjr, Feb 21, 2011
    #1
  2. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Picture please!


    ohlip

    ohlip, Feb 21, 2011
    #2
  3. cjr

    cjr Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5

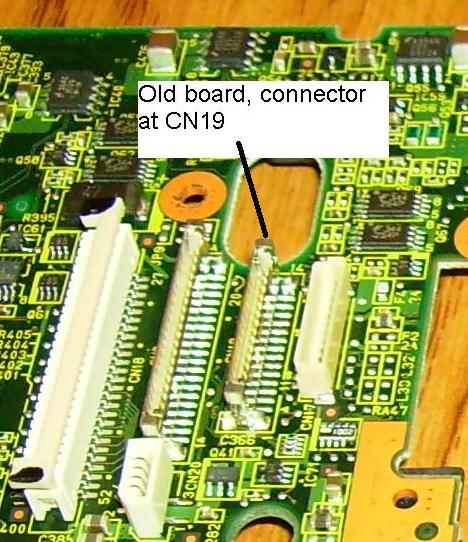

    Pix below. Any questions, please ask


    Attached Files:

    cjr, Feb 26, 2011
    #3
  4. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Absolute wild guess cause I have never owned or touched a cf 18, but it looks like a video connector. Digitizer or touchscreen maybe? 2 different lcd options and each use different connector.

    Shawn, Feb 26, 2011
    #4
  5. tough-2-go

    tough-2-go Notebook Deity

    Reputations:
    493
    Messages:
    759
    Likes Received:
    0
    Trophy Points:
    30
    Was there anything connected there on the original MB? If not then don't worry about.

    tough-2-go, Feb 26, 2011
    #5
  6. rcx

    rcx Notebook Consultant

    Reputations:
    207
    Messages:
    163
    Likes Received:
    3
    Trophy Points:
    31

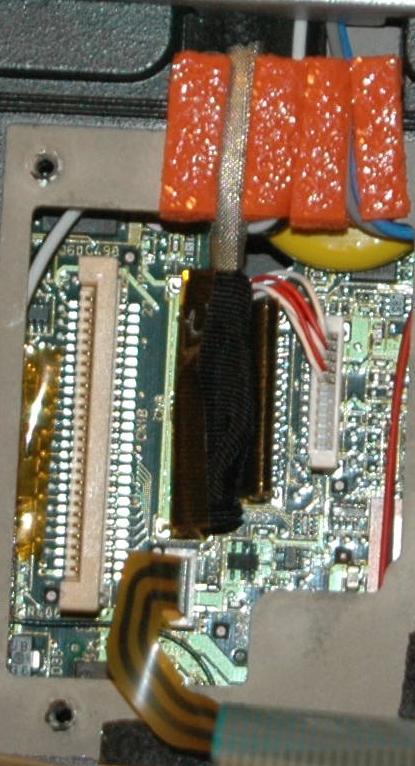

    Here's a view of a CF-18 "early" mk1 digitizer.


    Attached Files:

    rcx, Feb 26, 2011
    #6
  7. cjr

    cjr Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Old board has the connector, plus a cable running to it.
    New board does NOT have the connector.
    Questions are, will I let the smoke out if I do not plug it in, and if it's okay, what functionality will I lose?
    Thank you

    cjr, Feb 26, 2011
    #7
  8. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Where does the connected wire go to?


    Later marks show cn18 as being the keyboard.
    cn8 is the touchscreen / lcd
    cn17 is for the inverter

    What are the part numbers on on the boards?

    Something like DL3UP1277BBA or DL3UP1395AAA or DL3UPB471BAA

    Shawn, Feb 26, 2011
    #8
  9. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Shawn, Feb 26, 2011
