    CF-19 MK4 adding WWLAN

    Discussion in 'Panasonic' started by cheap4tw, Nov 9, 2014.

  1. cheap4tw

    cheap4tw Notebook Geek

    Reputations:
    0
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    Hello,

    I just purchased and installed a Sierra MC7700 WWAN card for my CF-19 MK4. My original MK4 didn't even have the jumper board where you set the WWAN dip switches.

    I swapped in a board from a CF-19 MK2 and set up the MC7700 for HSPDA put everything back together and my CF-19 bios doesn't show a WWAN option.

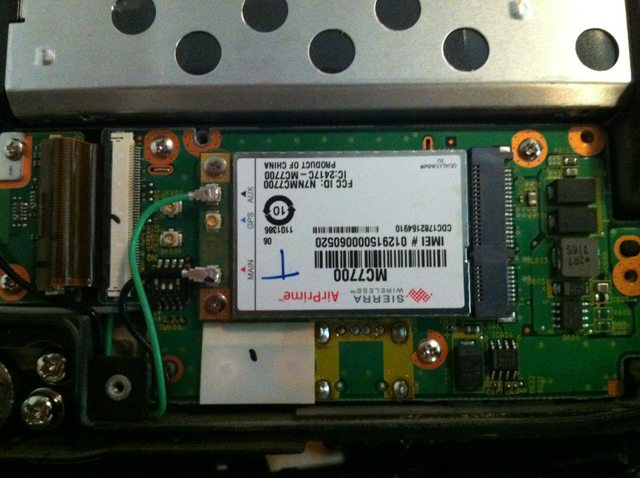

    One thing I noticed is that instead of a brown and black wire to attach to the WWAN card my CF-19 has a black and a green wire? Here is a picture:

    [​IMG]

    Does the green wire signify anything different then the brown other then they changed wire colors?

    cheap4tw, Nov 9, 2014
    #1
  2. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Look in BIOS for optional kit section

    Shawn, Nov 9, 2014
    #2
  3. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    WWWLAN is better :))

    Ok. Install your original WWAN board and use spgobi (search) to enable WWAN switch in your BIOS.
    Black wire is aux usually, another one is main, but I don't know whether it matters.

    BaRRmaley, Nov 9, 2014
    #3
  4. cheap4tw

    cheap4tw Notebook Geek

    Reputations:
    0
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    The original WWAN board doesn't have any jumper settings. Will it still work with WWAN?

    cheap4tw, Nov 9, 2014
    #4
  5. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    Yes, you don't need jumpers.

    BaRRmaley, Nov 9, 2014
    #5
  6. cheap4tw

    cheap4tw Notebook Geek

    Reputations:
    0
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    Ok I swapped old board back, thanks.

    I'm gonna search for SPGobi as soon as I get the bottom cover back on.

    cheap4tw, Nov 9, 2014
    #6
  7. cheap4tw

    cheap4tw Notebook Geek

    Reputations:
    0
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    Ok when I boot using SPGobi2 nothing happens. No bios update is installed.

    It shouldn't matter that I'm running windows 7 64bit right? I get an error if I try to run from within OS but I figured it wouldn't be an issue when it's being booted from.

    cheap4tw, Nov 9, 2014
    #7
  8. cheap4tw

    cheap4tw Notebook Geek

    Reputations:
    0
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    Got it, had to load SPGobi2 onto a usb stick that was bootable to freedos. Then ran the autoexe.bat and it updated my bios.

    WWAN now shows up.

    cheap4tw, Nov 9, 2014
    #8
  9. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    Congratulations :)

    BaRRmaley, Nov 9, 2014
    #9
  10. cheap4tw

    cheap4tw Notebook Geek

    Reputations:
    0
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    Thanks for all the help buddy.

    Also got the Sierra Watcher to work with Rogers and am connecting at 4G speeds.

    cheap4tw, Nov 9, 2014
    #10
  11. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    cheap4tw... Out of curiosity... What does that WWAN cost you per month to use?

    Congrats on getting it working BTW...

    Toughbook, Nov 9, 2014
    #11
  12. cheap4tw

    cheap4tw Notebook Geek

    Reputations:
    0
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    With rogers it is a $10 per month addon to my current cell phones data plan. I have 6gb per month as is right now so now the cell and the cf-19 share it.

    cheap4tw, Nov 9, 2014
    #12
