The Notebook Review forums were hosted by TechTarget, who shut down them down on January 31, 2022. This static read-only archive was pulled by NBR forum users between January 20 and January 31, 2022, in an effort to make sure that the valuable technical information that had been posted on the forums is preserved. For current discussions, many NBR forum users moved over to NotebookTalk.net after the shutdown.
Problems? See this thread at archive.org.

    CF-19 Mk6 BIOS chip location?

    Discussion in 'Panasonic' started by ilikewatch, Feb 14, 2016.

  1. ilikewatch

    ilikewatch Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    Apologies if this has been covered before, I have searched but with no luck.

    Can anyone tell me whether the BIOS in a Mk6 CF-19 is stored in a conventional EEPROM chip, and if so, whereabouts on the system board I would find the chip? Also, if there is such a chip is it located where it would be possible to dump the EEPROM in situ using a test clip, rather than desoldering it?

    ilikewatch, Feb 14, 2016
    #1
  2. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Welcome to the Panasonic Toughbook forum.

    Wish I could help you but I don't have a service manual in front of me. Unless you are setup to do something like this I would send it into Heartland Services to have it done...about $300.00 .

    toughasnails, Feb 14, 2016
    #2
    Dannemand and ilikewatch like this.
  3. ilikewatch

    ilikewatch Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the fast response :) Unfortunately I'm based in the UK (should have said in my original post!), so sending to Heartland Services would be a very expensive option. Would prefer to undertake the BIOS dump myself if possible.

    ilikewatch, Feb 14, 2016
    #3
  4. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81

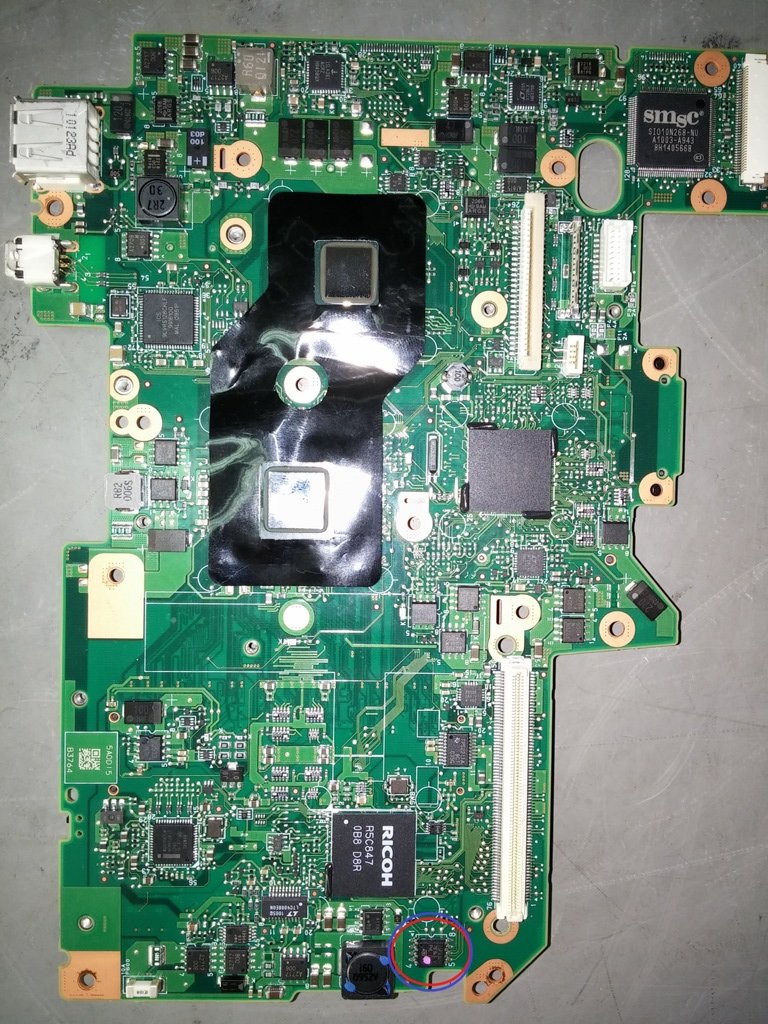

    here you go! In circle on red and blue

    ohlip


    Attached Files:

    ohlip, Feb 14, 2016
    #4
    BaRRmaley, toughasnails and ilikewatch like this.
  5. ilikewatch

    ilikewatch Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks! You're a star! - just to confirm, this is the right location for the Mk6? - filename suggests a Mk3, but I guess it's probably the same for both?

    ilikewatch, Feb 14, 2016
    #5
  6. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Yes! I believed it has the same location. Just remember the eeprom has always a dot mark. Either RED, Blue and etc on top of the chip.

    ohlip

    ohlip, Feb 14, 2016
    #6
    ilikewatch likes this.
  7. ilikewatch

    ilikewatch Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Brilliant - just what I needed, and the photo will be a great help.

    ilikewatch, Feb 14, 2016
    #7
