    CF-19 Smart Card Reader

    Discussion in 'Panasonic' started by Nautilus-19, Aug 16, 2020.

  1. Nautilus-19

    Nautilus-19 Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    2
    Trophy Points:
    6
    Greetings,

    Can anyone point me to a PC card or internal device that would allow use with a smart card or token on the Cf-19 mk5?

    Nautilus-19, Aug 16, 2020
    #1
  2. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41

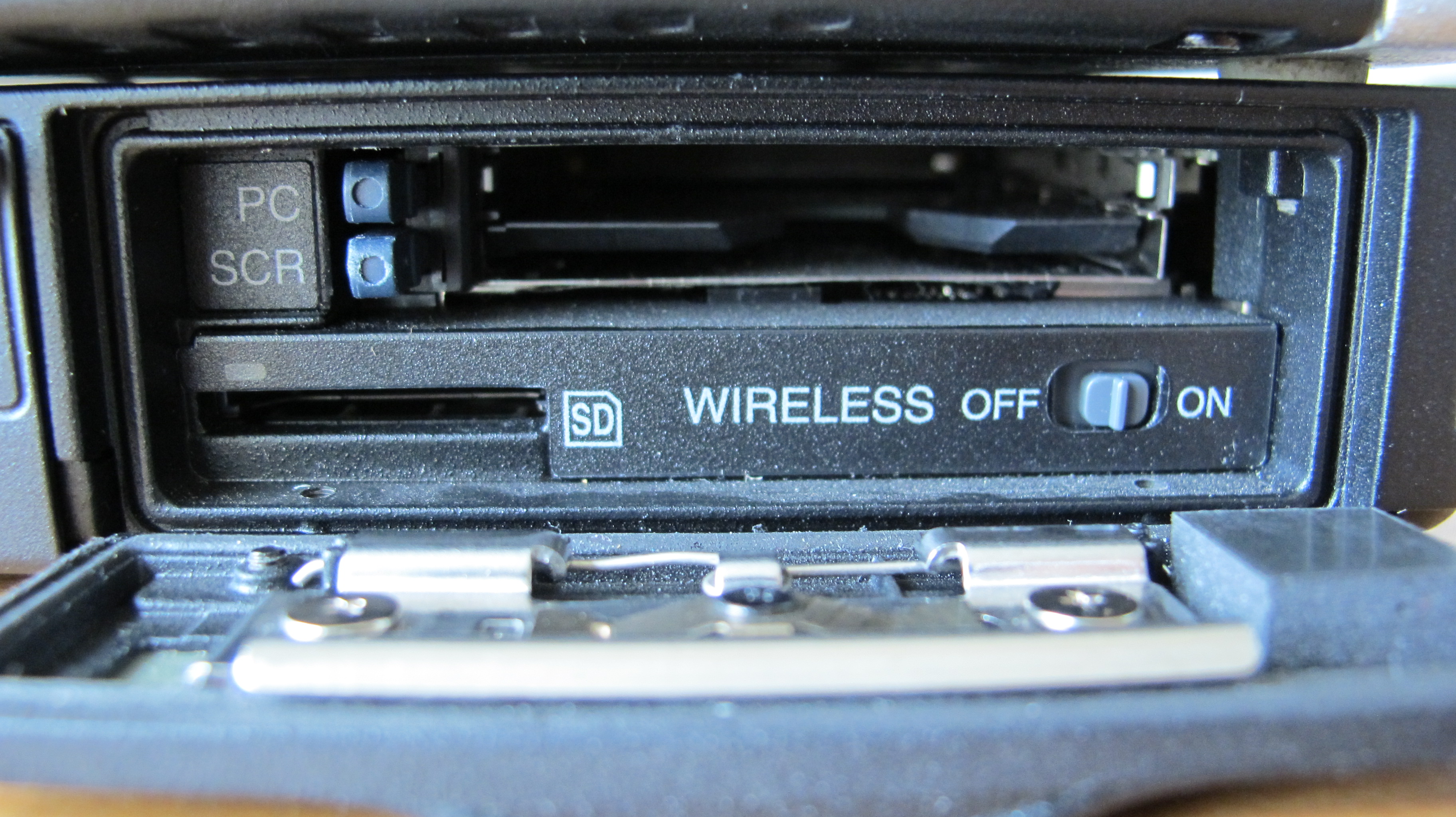

    There is an optional Smart Card Reader available for the CF-19.

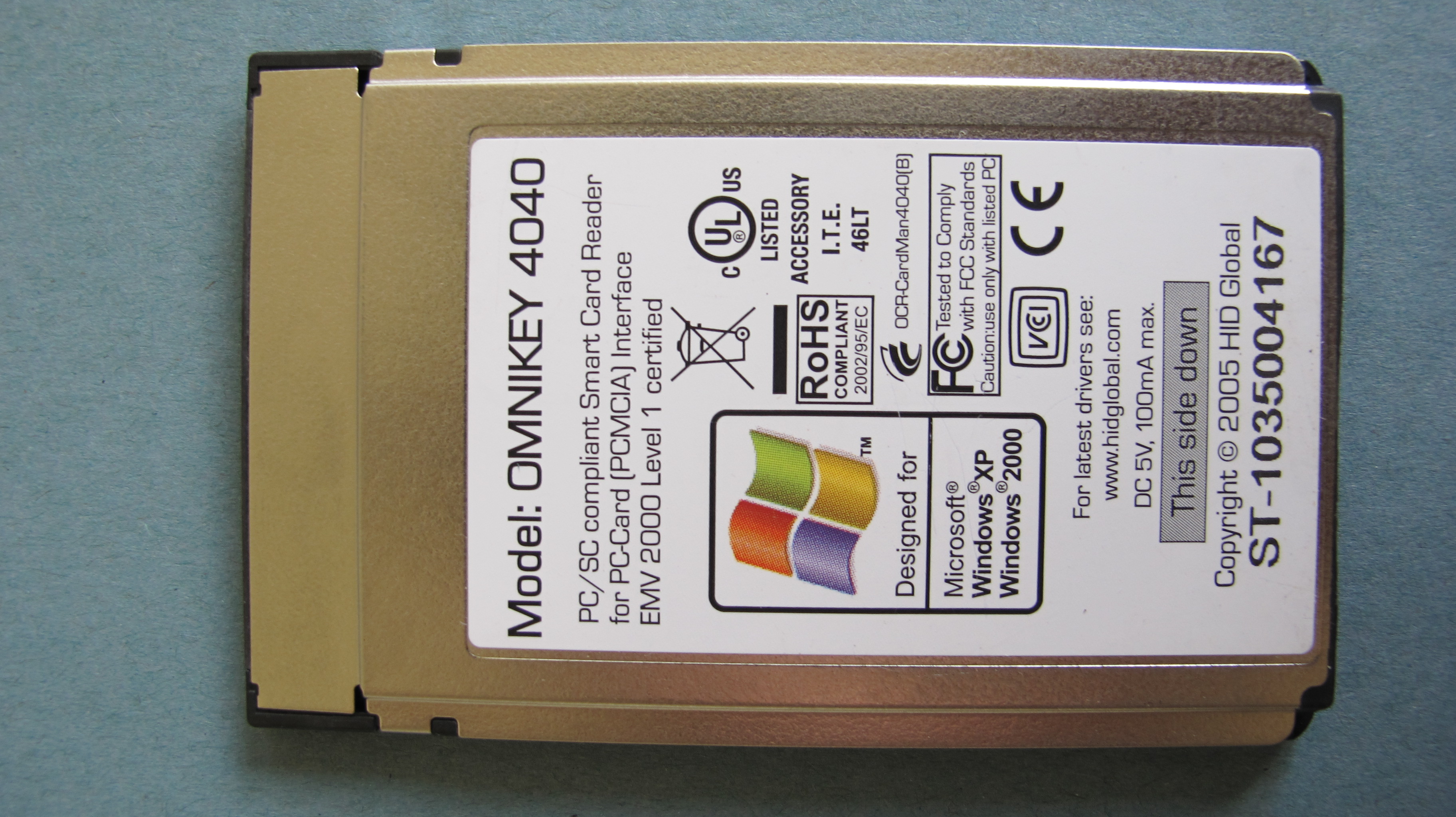

    Also a PC card version.


    Attached Files:

    • SCR.JPG
      File size:
      1.8 MB
      Views:
      142
    • SC.JPG
      File size:
      1.6 MB
      Views:
      146
    Geraout, Aug 17, 2020
    #2
  3. Nautilus-19

    Nautilus-19 Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    2
    Trophy Points:
    6
    Thanks for the reply. I understand the cf-19 requirement for pcmcia express cards for both slot A and B. Rather, I am looking for a specific vendor or Model that would work with the mk5.

    Nautilus-19, Aug 18, 2020
    #3
  4. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41

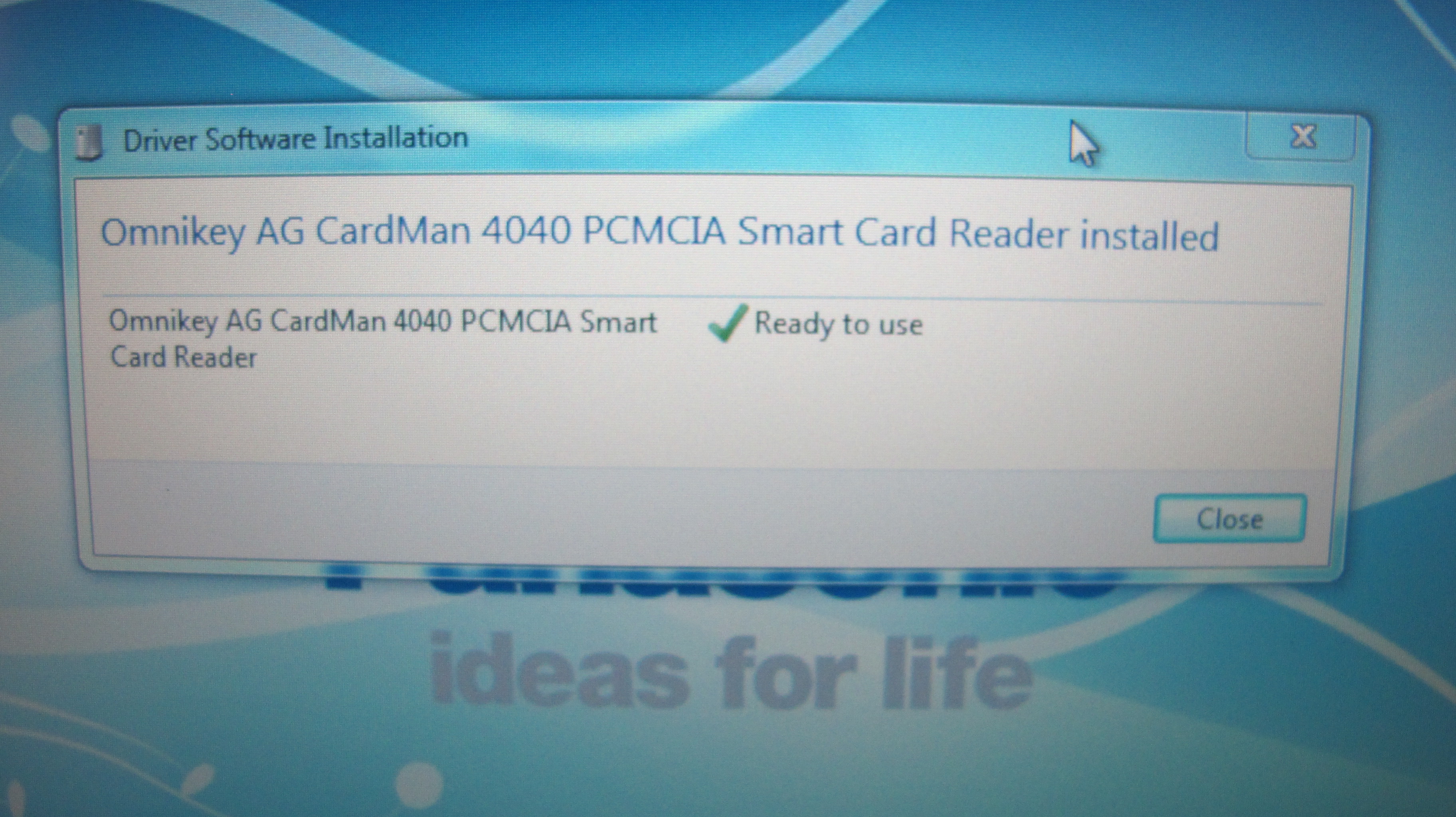

    The PC card I posted a pic of works in a mk5. The attached pic shows the screen when it is slotted into a mk5. Windows loads the drivers automatically.

    I don't have a smart card to test it, but inserting a credit card opens up a dialogue screen..

    Seem to be plenty on ebay.


    Attached Files:

    • scd.JPG
      File size:
      1.7 MB
      Views:
      110
    Last edited: Aug 20, 2020
    Geraout, Aug 19, 2020
    #4
    toughasnails likes this.
