    CF-19 fingerprint install

    Discussion in 'Panasonic' started by Rob2D, Oct 2, 2019.

  1. Rob2D

    Rob2D Notebook Enthusiast

    Reputations:
    7
    Messages:
    48
    Likes Received:
    12
    Trophy Points:
    16
    Sorry the old thread is locked and all the pictures are dead.

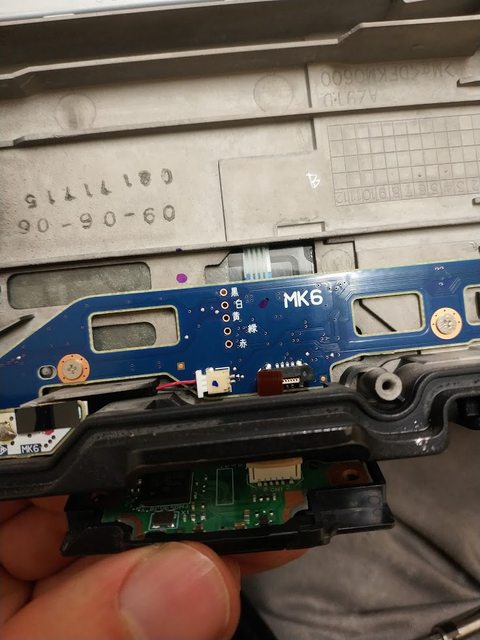

    I assume the ribbon just simply plugs in here:

    [​IMG]

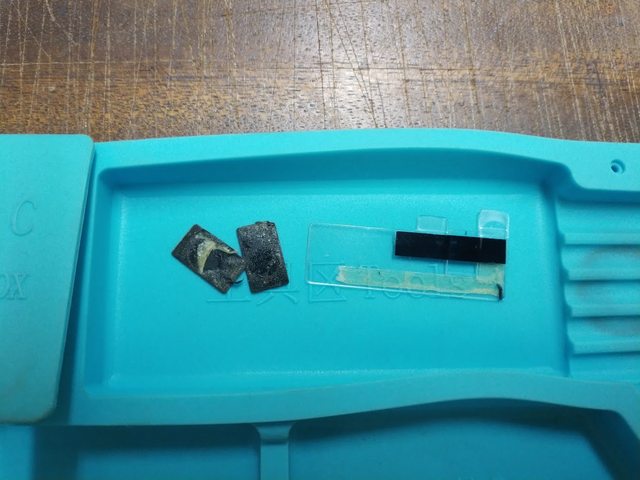

    But it came with these extra plastic bits and I'm not sure where they go:

    [​IMG]

    Rob2D, Oct 2, 2019
    #1
  2. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    You don't need them, but...


    BaRRmaley, Oct 2, 2019
    #2
    Rob2D and Shawn like this.
  3. Rob2D

    Rob2D Notebook Enthusiast

    Reputations:
    7
    Messages:
    48
    Likes Received:
    12
    Trophy Points:
    16
    Ah of course. If it was a dog it would have bit me! I was looking at the back and inside the chassis. Never occured to me to look at the front of the thing :p

    Rob2D, Oct 2, 2019
    #3
  4. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    If I recall, the clear plastic thingy goes beside the cable at the connector.

    Shawn, Oct 2, 2019
    #4
    Wyoming88! likes this.
  5. Rob2D

    Rob2D Notebook Enthusiast

    Reputations:
    7
    Messages:
    48
    Likes Received:
    12
    Trophy Points:
    16
    Yeah so as far as I could tell the clear plastic has a little bit of black "tape" like a loop for the ribbon cable to go through. Stop it getting caught on the battery going in and out.
    But whoever used it first time seems to have applied the black loop on the wrong side so I couldn't pass the ribbon through. I just covered the whole lot with a piece of tape. Should be fine.

    OK had to go to Panasonic to grab the fingerprint driver but it's all working now.

    Came with a nifty little software called Protector Suite too.

    Last edited by a moderator: Oct 2, 2019
    Rob2D, Oct 2, 2019
    #5
