    CF-19CHBAXBM - Touchscreen???!?!?!

    Discussion in 'Panasonic' started by Rob, Oct 28, 2010.

  1. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    I got one of these models in stock today: CF-19CHBAXBM

    According to panny it's a touchscreen. However, it has a digitizer panel on it!!!! The digitizer panel works great... and you can right click too with the digi pen... You CANNOT use your finger to touch the screen. It has Tablet PC installed...

    In the bios it shows CF-19CHBAXBM as well as the COA is XP Professional, NOT Tablet PC.

    What gives??? Should I try installing XP pro to see if I can get the "touchscreen" to work?

    Thanks

    EDIT: AFAIK, it's NOT a dual touch...

  2. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    If the Wacom pen is working as more than just a stylus it does not have a touch screen unless its one of those Touch/Digitizer dual screens. I have never seen one.
    CAP

  3. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    Nobody eh??

  4. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    What? I'm nobody? A normal touch screen is not physically capable of responding to the magnetic input from a digitizer stylus.
    CAP

  5. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    No, I'm just looking for more than one opinion... You count Cap, don't worry ;) :p

  6. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Look at the stylus slot and confirm it's the longer digitizer type
    You probably have both types in stock and you should notice that the digitizer looks clearer as it omits the touchscreen panel in front of the lcd

  7. hawk1234

    hawk1234 Notebook Guru

    Reputations:
    0
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Rob, some of the CF-19's are dual touch allowing for both touch and digitizer. I realize the H is suppose to be a Touchscreen, but you have been lucky enough to have one that is dual touch.

  8. amd751

    amd751 Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    And may be you should install some programm\drivers, which will switch Digitizer\Touchscreen (like it was on Xplore tablets)

  9. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    If this is so then how come I can't A) Use my finger? B) See anything in the bios relating to this???

  10. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    I repeat
    Is there a touchscreen panel in front of the lcd

  11. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    No... it does not appear that way... I compared it side by side to a CDBAXVM model... They look exactly the same.

    So does that mean that someone put a digitizer panel on a touchscreen laptop?

    Alex, I don't have an actual touchscreen model to compare it to either...

    Are you just grumpy this morning or hate me now because of the last issue we had with my account?? :(

  12. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Not grumpy ,it's just you look at things different than I do
    For instance

    I would have the lid apart quite quickly to see if there is connections to a touchscreen panel on the front

  13. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Rob, I've guess you have a frankentien model just like my cf-19MK1, Lol.

    ohlip

  14. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331

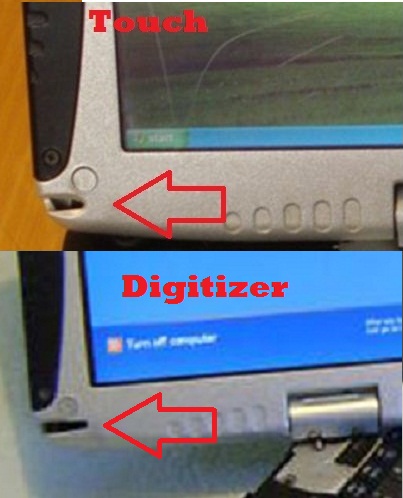

    This picture might not help if they just replaced the screen and not the whole top half :(


    Attached Files:

  15. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    Right... I understand this... it's the bottom one... that is what it looks like...

  16. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Somebody may modified the unit and its posible by adding the connector header and it elect..s component on the mbo. or maybe somebody change the model no. on which is supposed to be CF-19CD... not CF-19CH...


    ohlip

  17. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    How would you change the model # in the BIOS?

  18. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
