    CF-19Mk3 Tablet restore disc

    Discussion in 'Panasonic' started by kerekt, Apr 23, 2012.

  1. kerekt

    kerekt Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    Hi!

    I own a CF19KHRAX2B also got a same damaged CF19 for repair.
    I bought mainboard also a display from ebay.
    2nd CF19 work fine, but its unknown modell for me, cf-19phrzxam shown in the bios, drivers not found on panasonic page. Everything work fine with my XP Pro restore disc, else touchscreen, i discovered the new pen looks different than mine , it have a button , so its probably digitizer ....
    Have somebody XP pro restore disc for Mk3 Tablet ?

    regards

    Tod

    kerekt, Apr 23, 2012
    #1
  2. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Well its a touch screen but did you use parts from a touch screen ? You say you replaced the screen or did you buy a whole top. To me it sounds like you have a motherboard that is a touch and the top is a digitizer.

    toughasnails, Apr 23, 2012
    #2
  3. kerekt

    kerekt Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    Hi!

    I used whole top, becouse case also lcd was broken too....
    Bios dont show touchscreen option..

    regards

    Tod




    Attached Files:

    kerekt, Apr 23, 2012
    #3
  4. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    I think you now have non-touchscreen and non-digitizer tablet.

    BaRRmaley, Apr 23, 2012
    #4
  5. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331

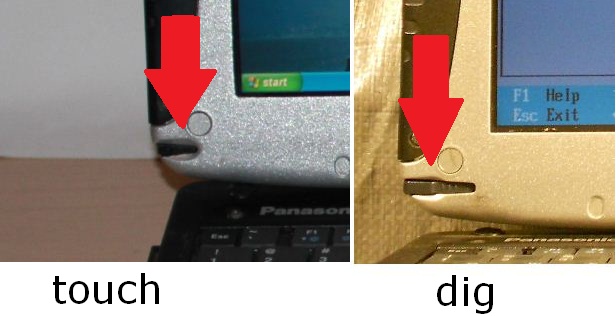

    Check out the two 19 tops...note the hole size. Good way to tell what kind of screen you have. My guess you had the one on the left first and then you replaced it with the one on the right...can't be done...sorry


    Attached Files:

    toughasnails, Apr 23, 2012
    #5
  6. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    Keep in mind with MK4 and later that the unit looks like the pic in the left even if it's a digitizer.

    Thanks

    Rob, Apr 23, 2012
    #6
  7. kerekt

    kerekt Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    Looks like the left picture, also i have more 2 x cf19 too , all of them looks same.
    Finally found it`s digitizer version, i installed WACOM pen tablet driver , digitizer work fine. My other problem: only the brightness button work , other tablet buttons not work, also unknown ACPI\MAT0020 device found after i install Mk3 XP Prof Recovery.

    Still looking for MK3 XP Tablet recovery.

    Thank you

    regards

    Tod




    kerekt, Apr 24, 2012
    #7
  8. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Sounds to me like you need to install the Hotkey and Hotkey Plus devices

    toughasnails, Apr 24, 2012
    #8
  9. canuckcam

    canuckcam Notebook Evangelist

    Reputations:
    146
    Messages:
    520
    Likes Received:
    12
    Trophy Points:
    31
    canuckcam, Apr 25, 2012
    #9
  10. kerekt

    kerekt Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    kerekt, Apr 26, 2012
    #10
  11. db04p71

    db04p71 Notebook Deity

    Reputations:
    515
    Messages:
    732
    Likes Received:
    8
    Trophy Points:
    31
    Use the drivers for the CF-19M.

    db04p71, Apr 26, 2012
    #11
  12. kerekt

    kerekt Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    Problem solved! After XP Tablet installed i discovered my display is DUAL TOUCH!!! So i install back original mk3 xp pro recovery, also install Wacom ISD Dualtouch driver. Touchscreen and digitzer pen work fine!!!!

    kerekt, May 4, 2012
    #12
