    CF-29 Pigtail addition?

    Discussion in 'Panasonic' started by gmgfarrand, Jun 18, 2009.

  1. gmgfarrand

    gmgfarrand Notebook Evangelist

    Reputations:
    104
    Messages:
    515
    Likes Received:
    3
    Trophy Points:
    31
    Ok, so I want to use my Cantenna with my CF-29.
    I have a pigtail, but is there a spare connector inside the unit or would I have to disconnect the AUX for the WiFi?

    gmgfarrand, Jun 18, 2009
    #1
  2. Doobi

    Doobi ToughBook DeityInTraining

    Reputations:
    414
    Messages:
    1,005
    Likes Received:
    1
    Trophy Points:
    56
    disconnect the AUX unless you have a docking station that has the pigtail connection on it.

    Doobi, Jun 18, 2009
    #2
  3. onirakkiss

    onirakkiss Notebook Deity

    Reputations:
    552
    Messages:
    711
    Likes Received:
    23
    Trophy Points:
    41
    U can build ur own :)

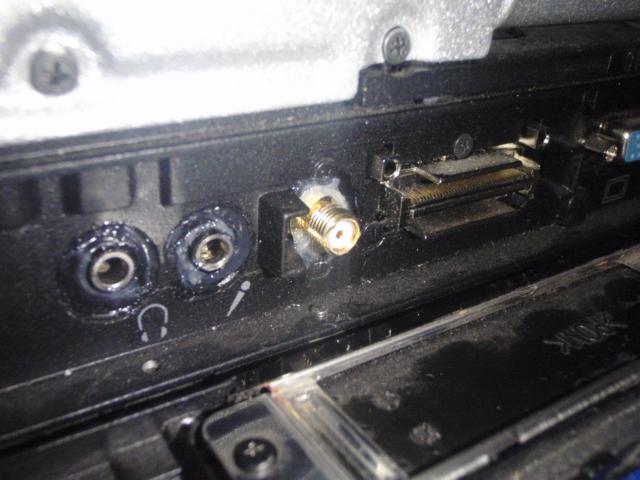

    I have done this, cause I never plan to use a docking station, also because I use the USB-port from the port-replicator-connector for my integrated webcam and I have an Atheros-N-card inside, which means, I have an extra antenna-connector...


    Attached Files:

    onirakkiss, Jun 18, 2009
    #3
  4. tough-2-go

    tough-2-go Notebook Deity

    Reputations:
    493
    Messages:
    759
    Likes Received:
    0
    Trophy Points:
    30
    Does your back door close ok with that SMA connector mounted there.

    tough-2-go, Jun 18, 2009
    #4
  5. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    I would venture a guess that it does. It doesn't look like it sticks out as far as it does on the CF-28...

    Toughbook, Jun 18, 2009
    #5
  6. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    *Walks up to Onirakkiss in black suit with black shades* :cool:

    "License & registration please..."

    "No, your OTHER license & registration, PLEASE...":nah:

    "I'm afraid I'm going to have to write you a citation for excessive Gorilla Snot abuse; it is a violation of the Hammond Interstellar Treaty of 'Ought Six to attempt to use the entire world's supply of Silicone Sealant on ONE TOUGHBOOK..."     :err:

    mnem
    Woops... looks like you got some entrails on ya there, buddy... :elvis:

    mnementh, Jun 18, 2009
    #6
  7. onirakkiss

    onirakkiss Notebook Deity

    Reputations:
    552
    Messages:
    711
    Likes Received:
    23
    Trophy Points:
    41
    @tough-2-go: Yes, it closes very smoth...the secret is, I disassembled the original connector house and melted the plastic hole, until the new connector fitted in the right manner from behind screwed in the plastic hole. I had made some pictures, but i do not find them right in the moment.
    @mnementh: :) I'm so sorry Sir, but...hm aeya... as I drove in the rain with my toughbook through the city and had my external wifi-antenna on the roof of the car, there was water running along the cable to the open backdoor slider and so I was thinking, that a little bit of silicone sealant would prevent us from a water damage. As everybody knows, an silicone cartridge will give u first nothing, but after some seconds to much of, how do u said, Sir? Ah, Gorilla Snot... Yes, and thats a true story and now I have to catch a flight....And I'm not a pendant and next time I will never give u a close up, but blurred pictures :)

    onirakkiss, Jun 19, 2009
    #7
