    CF-30 CPU Heat Sink Pads

    Discussion in 'Panasonic' started by I58SR, Jan 30, 2011.

  1. I58SR

    I58SR Notebook Consultant

    Reputations:
    188
    Messages:
    196
    Likes Received:
    15
    Trophy Points:
    31
    In need of this part number. This part number should be mark specific. Mk2 is bigger in size and thickness than MK1 not sure on MK3.

    -Nick

    I58SR, Jan 30, 2011
    #1
  2. I58SR

    I58SR Notebook Consultant

    Reputations:
    188
    Messages:
    196
    Likes Received:
    15
    Trophy Points:
    31
    Here we go…

    CF-30 CPU HEAT RUBBER


    MK1 The part number is DFMY0434YA
    MK2 ?
    MK3 The part number is DFMY0508ZA

    I58SR, Jan 30, 2011
    #2
  3. db04p71

    db04p71 Notebook Deity

    Reputations:
    515
    Messages:
    732
    Likes Received:
    8
    Trophy Points:
    31
    DFMY0487ZA from a CF-30 Mk2 repair manual.

    Remember, Panasonic is constantly upgrading, changing part numbers.

    db04p71, Jan 30, 2011
    #3
  4. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Also watch out for the shipping charges....$25.00 and up :eek:

    toughasnails, Jan 30, 2011
    #4
  5. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    Did you mike those pads? Curiosity as I may pull my 30 apart some day and I have 1.5 and .5 on hand. (from Frozen CPU) Red in color works great in the CF-29s.

    SHEEPMAN!, Jan 31, 2011
    #5
  6. I58SR

    I58SR Notebook Consultant

    Reputations:
    188
    Messages:
    196
    Likes Received:
    15
    Trophy Points:
    31

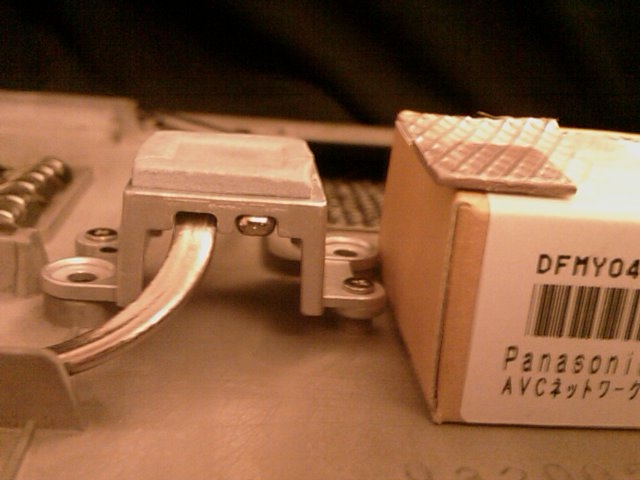

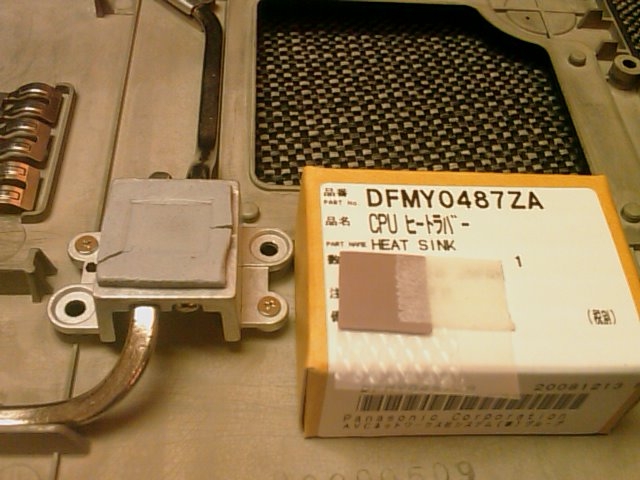

    I received these and it not a match. I was told by Heartland to use DFMY0487ZA in place of DFMY0434YA. This can't be right. What should I do?

    -Nick


    Attached Files:

    I58SR, Mar 2, 2011
    #6
  7. Driller

    Driller Notebook Evangelist

    Reputations:
    133
    Messages:
    518
    Likes Received:
    1
    Trophy Points:
    30
    Have never seen the guts of a cf-30, but as long as it "smooshes" to fit to cover over the areas that need the heat dissipation rubbers, things like cpu, graphic chipset, whatever else that needs to transfer the heat to the case botton and or heatpipe I may be wrong, but I don't think this is a problem. I've had the cpu's on the 29's and 51's over covered but not impeding onto any thing on PCB like resistors, transistors ot the like and not had the first problem. FWIW............Driller

    Driller, Mar 2, 2011
    #7
  8. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    I looked at the pictures again. The pad is wide and tall enough as long as it is centered on the heat sink and you have total contact with the CPU when sealed up. The extra on the old one is well just extra.
    BTW if that new one is red someone else is using Frozen CPU pads.

    SHEEPMAN!, Mar 2, 2011
    #8
  9. I58SR

    I58SR Notebook Consultant

    Reputations:
    188
    Messages:
    196
    Likes Received:
    15
    Trophy Points:
    31
    The pads are red in color and seem to be thinner that the 1.5 pads from frozen CPU. I'm not sure the CPU and heat sink will even touch the pads when assembled. We’ll see.

    I58SR, Mar 2, 2011
    #9
  10. phillyboi

    phillyboi Notebook Guru

    Reputations:
    7
    Messages:
    53
    Likes Received:
    0
    Trophy Points:
    15
    Whats their deal with the outrages shipping cost? Do they only do overnight? I see they have an Elgin Location which is just half hour north of me, I will call them tomorrow, I need some DFHR3445ZA pads.

    phillyboi, Mar 3, 2011
    #10
  11. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Simple answer

    They are used to dealing with Government agency's
    Do you remember the $1000 hammers and toilet seats :D
    $25 is cheap to those guys

    Alex, Mar 3, 2011
    #11
  12. ToughNut

    ToughNut Notebook Evangelist

    Reputations:
    164
    Messages:
    495
    Likes Received:
    0
    Trophy Points:
    30
    Magnesium toilet seats, perhaps? :p

    ToughNut, Mar 3, 2011
    #12
  13. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    As long as they are heated

    Shawn, Mar 3, 2011
    #13
  14. phillyboi

    phillyboi Notebook Guru

    Reputations:
    7
    Messages:
    53
    Likes Received:
    0
    Trophy Points:
    15
    So I spoke with Kate at Heartland, unfortunely the warehouse by me doesn't stock t :( oughbook parts. However she did say they do fedex ground. But do they overcharge on this service?

    phillyboi, Mar 3, 2011
    #14
  15. xboxhaxorz

    xboxhaxorz Notebook Evangelist

    Reputations:
    178
    Messages:
    395
    Likes Received:
    4
    Trophy Points:
    31
    try using a copper shim as well. maybe record temps to find any change.

    xboxhaxorz, Mar 10, 2011
    #15
  16. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    I have thought of copper shims before
    I bet that if the right thickness was found that you could reduce the cpu temperature
    The problem is you could damage the M/B if the laptop is dropped,your Toughbook without the give of a flexible pad is no longer fully rugged

    Alex, Mar 11, 2011
    #16
