    CF-30 LCD schematics?

    Discussion in 'Panasonic' started by Scott Bonds, Apr 21, 2017.

  1. Scott Bonds

    Scott Bonds Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I bought a CF-30 mk3 and thought I'd try upgrading the backlight. I bought the LED strips @ohlip used:

    http://forum.notebookreview.com/thr...-tube-into-an-led-backlight-cf-30-lcd.739952/

    and installed them in roughly the same way. But I haven't been able to figure out the wiring. The LCD model is L5F30812P00 and the inverter is a Tamura HBL-0375. Google hasn't led me to a datasheet or a schematic that might help me figure it out.

    The (old) Tamura HBL-0375 connected to the CF-30 via an 8-pin cable, but the new inverters each come with a 4-pin connector which I was hoping to connect in parallel to power 2 LED strips. The new inverter at least labels the pins: GND, DM, ENA, VCC.

    I'm guessing GND means ground, VCC is for the +5VDC, but I don't have a guess for DM and ENA. And then there's the question of how to map them to the 8-pin connection the CF-30 provides.

    Any hints would be greatly appreciated. :)

    Scott Bonds, Apr 21, 2017
    #1
  2. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Just passing by after posting on tbt.

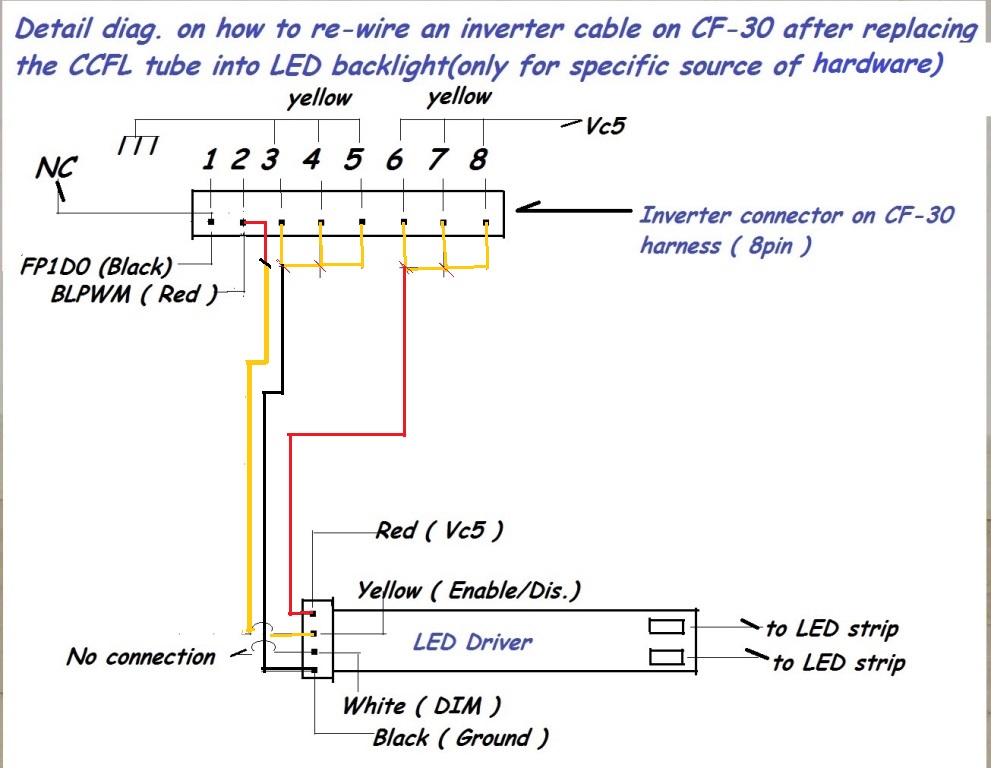

    Just follow on this diagram and your good to go.

    ohlip


    Attached Files:

    • 6.jpg
      File size:
      141.5 KB
      Views:
      2,086
    ohlip, Apr 22, 2017
    #2
    interestingfellow likes this.
  3. Scott Bonds

    Scott Bonds Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Awesome, thanks! I'll try it and share how it goes.

    Scott Bonds, Apr 22, 2017
    #3
  4. CWB32

    CWB32 Need parts for my flying saucer.

    Reputations:
    179
    Messages:
    1,563
    Likes Received:
    412
    Trophy Points:
    101
    observe proper cmos/vmos handling precautions ...
    the *enable* and other supply/source/signal lines are driven by or can be traced back to cmos/vmos devices (except for ground) ...
    a little static on one of these lines when it is "floating" will pop the semiconductor device .

    CWB32, Apr 23, 2017
    #4
    SHEEPMAN! likes this.
  5. Scott Bonds

    Scott Bonds Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    @ohlip how did you approach joining the cables together? I was thinking I should unsolder the male connector from the old inverter, the solder the new inverters to it, but I'm realizing these cables are tiny and I'm not that steady a hand. I could splice the cables, but then I'm ruining the computer if I mess it up, or if I want to change out the LCD again.

    Curious to know what your approach was, if you don't mind sharing.

    Scott Bonds, May 15, 2017
    #5
  6. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Half tapping my friend If you don't want it to cut it out.

    ohlip

    ohlip, May 16, 2017
    #6
  7. Scott Bonds

    Scott Bonds Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I'm getting outside my comfort zone now. :) If there's someone who would be interested in making+selling me an LED modded CF-30 panel that I can just drop into place and plug in using the existing connector, please shoot me an email: [email protected]

    Scott Bonds, May 17, 2017
    #7
  8. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    When I did my first LED conversion, I was concerned just as you are. I just bought a second cable and modded it. That way I could go back to original if I wanted to.

    Shawn, May 18, 2017
    #8
