    CF-30 dip switch

    Discussion in 'Panasonic' started by MercTech, Dec 28, 2013.

  1. MercTech

    MercTech Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I'm wondering if anyone has a link to a tech manual on the wwan sled for the CF-30? Specifically, what do the dip switch setting configure?

    What I've gleaned from reading the forums is that "off,on,off,on" would be the settings for Verizon CDMA and "off,on,on,off" would be settings for EVDO networks.

    I'm working with a CF-30 Mk2 running Win7 and the sled has a Sierra Wireless MC5725 card installed. I have worked with loading various drivers and it is recognized by the system but the AT&T software says the card is turned off.

    MercTech, Dec 28, 2013
    #1
  2. I58SR

    I58SR Notebook Consultant

    Reputations:
    188
    Messages:
    196
    Likes Received:
    15
    Trophy Points:
    31

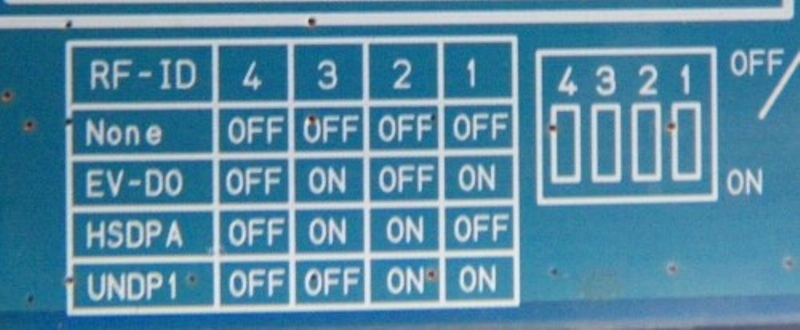

    Is the wan enabled in the bios? Maybe this will help....


    Attached Files:

    I58SR, Dec 28, 2013
    #2
    Shawn likes this.
  3. MercTech

    MercTech Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks, that is exactly what I was looking for.

    MercTech, Dec 30, 2013
    #3
