    CF-30: Replacing Sierra MC7525 with GOBI 2000/3000?

    Discussion in 'Panasonic' started by PacketCollision, May 4, 2012.

  1. PacketCollision

    PacketCollision Newbie

    Reputations:
    15
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    I'm looking at replacing my Sprint-only WWAN card (MC5725, not 7525 like I said in the title) with a GOBI card (preferably a GOBI3000 card, but I'd settle for a GOBI2000 if that is all that will work) in my CF-30 MkII. It has one of the pop-up antennas, which I'll hook up to an antenna analyzer to make sure it works with GSM frequencies. Can I just buy a replacement card and pop it in or do I need some sort of different sled? Do the GOBI cards use SIMs for GSM carriers?

    PacketCollision, May 4, 2012
    #1
  2. db04p71

    db04p71 Notebook Deity

    Reputations:
    515
    Messages:
    732
    Likes Received:
    8
    Trophy Points:
    31
    The Gobi 1000 will work with the latest bios and EC. It was a late offering for the Mk2. The Gobi 2000 may work. Not sure about Gobi 3000. If your sled has dip switches they can be set for the Gobi card and should work with Sprint and Verizon. AT&T and other GSM carriers require a sim card and your Sprint sled does not have a sim slot, AFA1K. If your sled does not have dip switches it will likely not work with a Gobi card.

    The HSDPA 3.6 sled will work with all US carriers if the dip switches are set correctly.

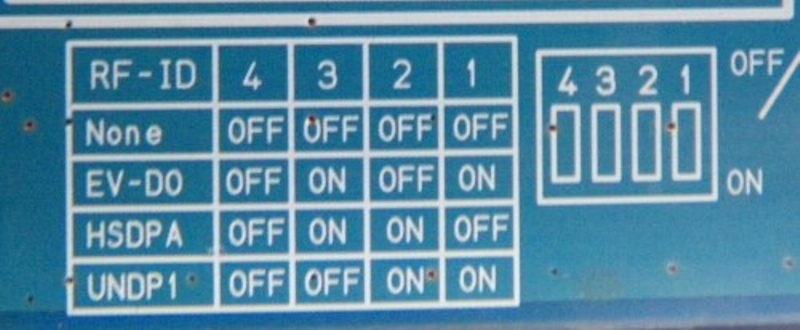

    The picture is from a CF-19. You won't see this on a CF-30 sled but, the switch positions are the same. Gobi is UNDP1.


    Attached Files:

    db04p71, May 4, 2012
    #2
  3. PacketCollision

    PacketCollision Newbie

    Reputations:
    15
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5


    It looks like my sled has both a sim slot and the 4 dip switches. I'll try getting a Gobi 3000 and if that doesn't work, try a Gobi 2000. Thanks for the info!

    PacketCollision, May 5, 2012
    #3
  4. Alecgold

    Alecgold Notebook Evangelist

    Reputations:
    251
    Messages:
    641
    Likes Received:
    25
    Trophy Points:
    41
    I'm curious! let us know how it goes!

    Alecgold, May 6, 2012
    #4
  5. old busted

    old busted Notebook Evangelist

    Reputations:
    149
    Messages:
    410
    Likes Received:
    0
    Trophy Points:
    30
    +1. I'd like to know if the 3000 will work on my 31. If it works on a 30 I'm thinking yes.

    old busted, May 6, 2012
    #5
  6. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    Just an FYI:

    If you can get a GOBI 1000 working in it, it will 100% sure work with a GOBI 2000.....

    GOBI 3000 might be out because they never made a G3000 chip for the Toughbook. You will have to reflash the firmware on it at the MINIMUM

    Rob, May 7, 2012
    #6
  7. PacketCollision

    PacketCollision Newbie

    Reputations:
    15
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    I found out that the Gobi 3000 models that support CDMA as well as GSM are a bit outside of my budget, so I ordered a Gobi 2000 model. Thanks to everyone for the help.

    PacketCollision, May 10, 2012
    #7
