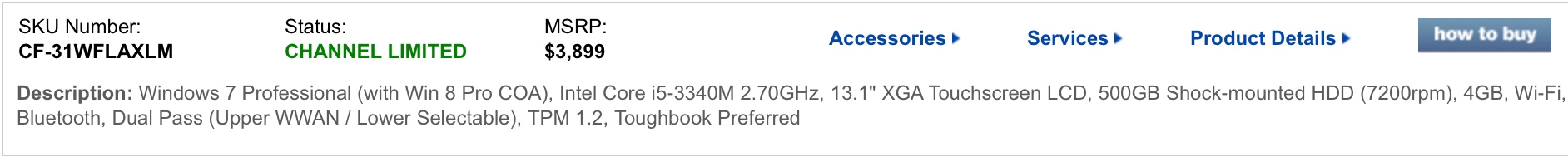

CF-31WFLAXLM - Dual Pass (Upper WWAN / Lower Selectable)

Bought a project and would like to understand the configuration better.
What does Lower Selectable mean? Also, what does Channel Limited mean?
Yes, it was 95% off list price...

...Linux is good for what ails you...
Lefty



Cleve,
Lower selectable is referring to the lower, or bottom, of the 2 external antenna pass-through the unit is equipped with. Some unit have 1 pass-through. The pass-through is used with a vehicle dock to facilitate the use of an external antenna. In your unit the upper, or top, pass-through is dedicated to a WWAN card while the lower one can be dedicated to any wireless device you may install, including GPS.

As for the Channel Limited, I think it is referring to the type of client the unit(s) can be marketed (sold) to. Rob can probably answer better than I.



Morgan, Thank you very much as you explain this very well. Last question (for now), What Mark is this 31?



Hi, I was curious and Google found the same configuration for sale - seller stated it was a Mark 4.



CF31W is a mk4



Thanks very much.
I’ve seen it listed as a III and IV
I’ve never been very Mark savvy



Neither have i, and I have a brother and also a co worker named Mark.

Very little difference between a mk3 and mk4 anyway.



Hopefully a Linux distribution will work out of the box especially sound and touch


Sent from my CF-M34



How I want my CF-28s to be when the ship in



Any 31 owners...what is part number of optical media bay dvd drive?
Don’t want to purchase the wrong one as part for a 30 doesn’t fit.
Best regards.



Sent from my CF-M34



From the label on the DVD Multi drive pack in my CF-31S:

CF-VDM312U



Thanks North Country...
Searching now...


Sent from my CF-M34



I do have a CF-31 and that is the DVD drive. I don’t have issues so it’s not a big deal



Notice the 31 in the middle?
The 2 indicates it is the 2nd version.
The M indicates multi drive.



Good info. Thanks.



Why this forum is so awesome



It's not the forum, It's just ME that's awesome.



Yeah true. Not to be all one sided but I feel like I am too



Yes you are...



We are all cool!
https://images.app.goo.gl/wFG62xWp8EtzsHaK7



Back on track to this 31 using Linux for the moment. Jeff suggested going into mouse settings (using Mx18.2) which I did (see screenshot)
however scrolling through this forum posts works okay, but the mouse on a screen moving around seems "sticky", "laggy", can't describe it much better and wondering if there is another tweak to make it more sensitive?



Lowering the sensitivity way to the right seemed to help a bit.
Here's a shot of the working system with 18.2

Code:

System:    Host: mx Kernel: 4.19.0-1-amd64 x86_64 bits: 64 compiler: gcc v: 6.3.0
           Desktop: Xfce 4.12.3 Distro: MX-18.3_x64 Continuum Apr 7  2019
           base: Debian GNU/Linux 9 (stretch)
Machine:   Type: Laptop System: Panasonic product: CF-31WFLAXLM v: 004 serial: <filter>
           Mobo: Panasonic model: CF31-4 v: 1 serial: <filter> BIOS: American Megatrends
           v: 4.00L14 date: 07/25/2014
Battery:   ID-1: BAT1 charge: 61.7 Wh condition: 81.1/91.0 Wh (89%) model: Panasonic CF-VZSU46
           status: Discharging
CPU:       Topology: Dual Core model: Intel Core i5-3340M bits: 64 type: MT MCP arch: Ivy Bridge
           rev: 9 L2 cache: 3072 KiB
           flags: lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx bogomips: 21551
           Speed: 1198 MHz min/max: 1200/3400 MHz Core speeds (MHz): 1: 1198 2: 1546 3: 1608
           4: 2009
Graphics:  Device-1: Intel 3rd Gen Core processor Graphics vendor: Matsushita driver: i915
           v: kernel bus ID: 00:02.0
           Display: x11 server: X.Org 1.19.2 driver: modesetting unloaded: fbdev,vesa
           resolution: 1024x768~60Hz
           OpenGL: renderer: Mesa DRI Intel Ivybridge Mobile v: 4.2 Mesa 18.2.6
           direct render: Yes
Audio:     Device-1: Intel 7 Series/C216 Family High Definition Audio vendor: Matsushita
           driver: snd_hda_intel v: kernel bus ID: 00:1b.0
           Sound Server: ALSA v: k4.19.0-1-amd64
Network:   Device-1: Intel 82579LM Gigabit Network vendor: Matsushita driver: e1000e v: 3.2.6-k
           port: f080 bus ID: 00:19.0
           IF: eth0 state: down mac: <filter>
           Device-2: Intel Centrino Advanced-N 6235 driver: iwlwifi v: kernel port: f040
           bus ID: 09:00.0
           IF: wlan0 state: up mac: <filter>
Drives:    Local Storage: total: 465.76 GiB used: 9.06 GiB (1.9%)
           ID-1: /dev/sda vendor: Seagate model: ST500LM021-1KJ152 size: 465.76 GiB
Partition: ID-1: / size: 455.45 GiB used: 9.06 GiB (2.0%) fs: ext4 dev: /dev/sda1
           ID-2: swap-1 size: 2.00 GiB used: 0 KiB (0.0%) fs: swap dev: /dev/sda2
Sensors:   System Temperatures: cpu: 42.0 C mobo: N/A
           Fan Speeds (RPM): N/A
Repos:     Active apt repos in: /etc/apt/sources.list.d/antix.list
           1: deb http://la.mxrepo.com/antix/stretch stretch main
           Active apt repos in: /etc/apt/sources.list.d/debian-stable-updates.list
           1: deb http://ftp.us.debian.org/debian/ stretch-updates main contrib non-free
           Active apt repos in: /etc/apt/sources.list.d/debian.list
           1: deb http://ftp.us.debian.org/debian/ stretch main contrib non-free
           2: deb http://security.debian.org/ stretch/updates main contrib non-free
           Active apt repos in: /etc/apt/sources.list.d/mx.list
           1: deb http://mirrors.rit.edu/mxlinux/mx-packages/mx/repo/ stretch main non-free
           Active apt repos in: /etc/apt/sources.list.d/spotify.list
           1: deb http://repository.spotify.com stable non-free
           No active apt repos in: /etc/apt/sources.list.d/various.list
Info:      Processes: 204 Uptime: 4m Memory: 3.72 GiB used: 408.1 MiB (10.7%) Init: SysVinit
           runlevel: 5 Compilers: gcc: 6.3.0 Shell: bash v: 4.4.12 inxi: 3.0.33



Good idea

Hey @UNCNDL1! Need anymore help on this? I think that Ubuntu with out-of-the-box things might work. Ubuntu on laptops with touchscreens isn’t my choice. If someone made a 31 FAQ (btw yes I searched and there’s not one) MK4s came with Windows 7, Ubuntu works on them but there is no drivers for Ubuntu. Unless you use the program Wine for Windows programs. I don’t know if they could do drivers
