    CF-53 MK1 with CF-28-31 keyboard, negative for me?

    Discussion in 'Panasonic' started by blysk, Apr 22, 2018.

  1. blysk

    blysk Notebook Guru

    Reputations:
    0
    Messages:
    52
    Likes Received:
    2
    Trophy Points:
    16
    Hi all,

    I just got a Toughbook CF-53 MK1 cf-53aszcgfp, I realized it does not have its original keyboard.

    Underneath is a sticker saying mp-03106e0d8145.
    It appears to be a keyboard for CF-28,29,30,31.
    It looks unused.

    Is this some sort of bad for me?
    Does the original keyboard(s) offer something different? Spill resistance?

    Last edited: Apr 22, 2018
    blysk, Apr 22, 2018
    #1
  2. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Well that's good to know since I do have a few of them keyboards kicking around if my 53 keyboard dies. The 53 keyboard spill resistance, nope. As far as I know no difference.

    toughasnails, Apr 22, 2018
    #2
    ALLurGroceries and katalin_2003 like this.
  3. blysk

    blysk Notebook Guru

    Reputations:
    0
    Messages:
    52
    Likes Received:
    2
    Trophy Points:
    16
    Interesting...

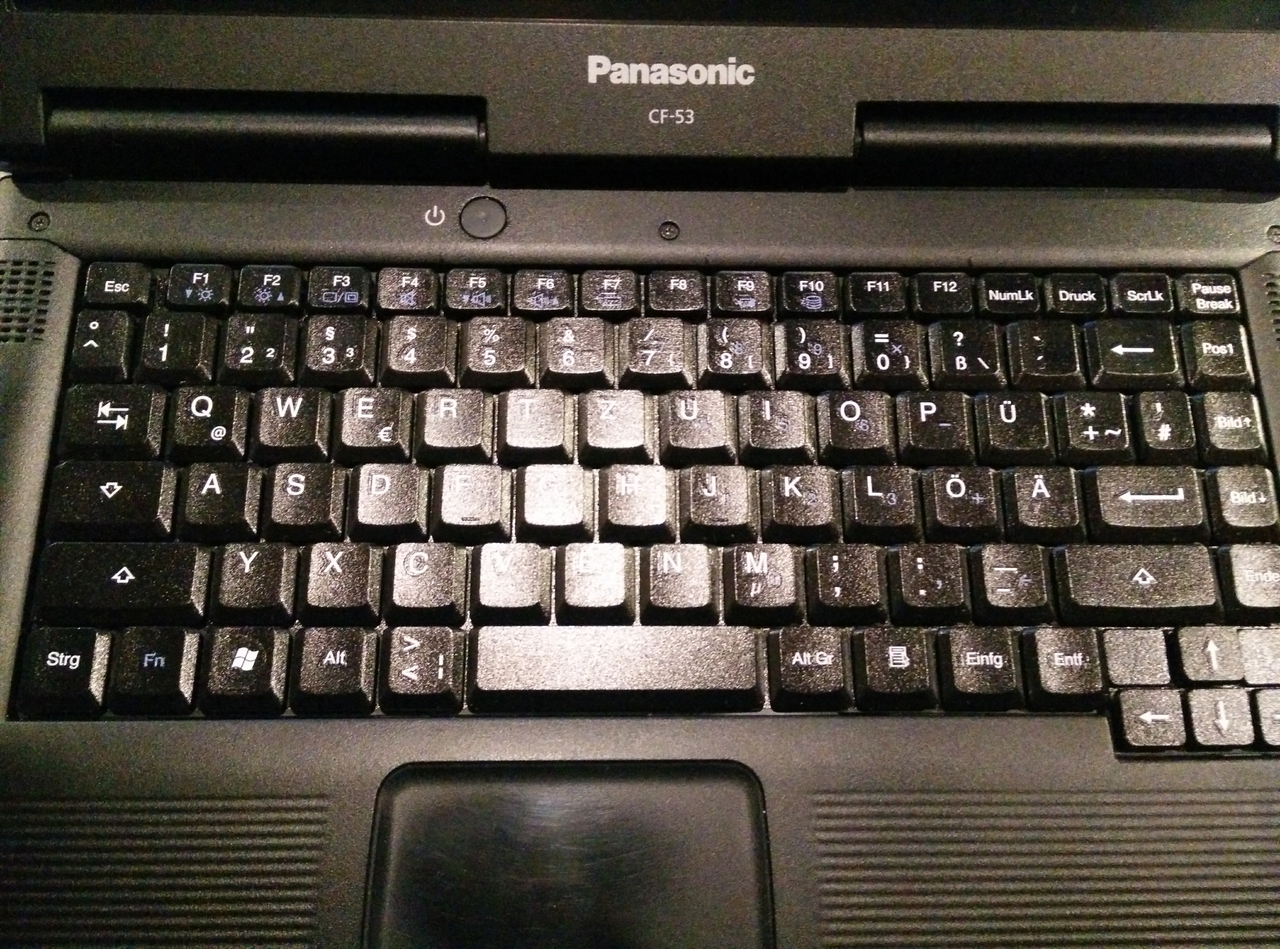

    Here is a picture, btw:
    [​IMG]

    blysk, Apr 22, 2018
    #3
  4. safn1949

    safn1949 I'm sure I'm on the wrong planet

    Reputations:
    141
    Messages:
    1,175
    Likes Received:
    375
    Trophy Points:
    101
    That's just the standard keyboard for the 28,29,30,31,52,73,74 by the looks of it. Trick is to see if it has the 3rd slot for backlit keyboard.

    Oh, that's a German keyboard. :D

    safn1949, Apr 23, 2018
    #4
  5. blysk

    blysk Notebook Guru

    Reputations:
    0
    Messages:
    52
    Likes Received:
    2
    Trophy Points:
    16
    Well, I doubt it is backlit

    blysk, Apr 23, 2018
    #5
  6. safn1949

    safn1949 I'm sure I'm on the wrong planet

    Reputations:
    141
    Messages:
    1,175
    Likes Received:
    375
    Trophy Points:
    101
    That one is not, but it might be able to be replaced with a backlit, there is another small connection across from the 2 main ribbons. :D

    safn1949, Apr 23, 2018
    #6
  7. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    It should have it. That's the first thing I installed on my 53.

    toughasnails, Apr 23, 2018
    #7
    ALLurGroceries likes this.
  8. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    It absolutely "may" have it. I replaced one yesterday. 53AAGZX1M

    The connector was there but I had to use a "used but good" regular keyboard.

    Waiting on a newish BLKB.

    SHEEPMAN!, Apr 23, 2018
    #8
