    CF-U1 SSD replacement

    Discussion in 'Panasonic' started by Geraout, Oct 13, 2018.

  1. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    Looking for a replacement SSD for a CF-U1.

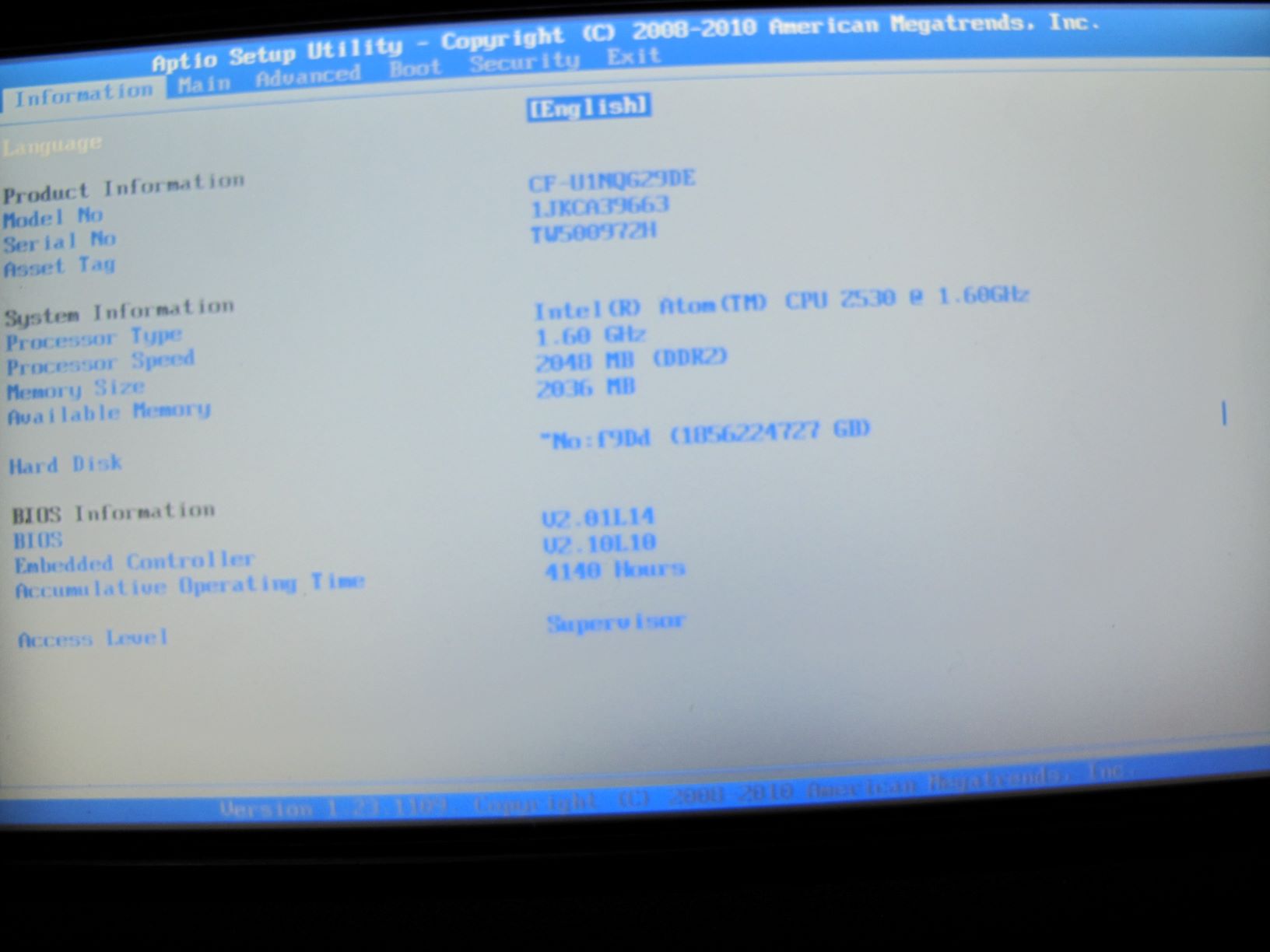

    The installed SSD seems to have corrupted. See pic of BIOS screen.

    It seems that the Transcend TS64GSSD10-M is not now available and this locked thread

    http://forum.notebookreview.com/thr...1-drive-for-panasonic-toughbook-cf-u1.799625/

    recommends some alternatives. All the alternatives look to be 40 pin ZIFs while this thread

    http://forum.notebookreview.com/threads/cf-u1-ssd.776731/#post-10016215

    shows the Transcend TS64GSSD10-M as 35 pin.

    I would rather just replace the SSD than do the mod that involves removing the WWAN card etc . Any advice welcome please.


    Attached Files:

    • u1.jpg
      File size:
      101.9 KB
      Views:
      274
    Geraout, Oct 13, 2018
    #1
  2. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41

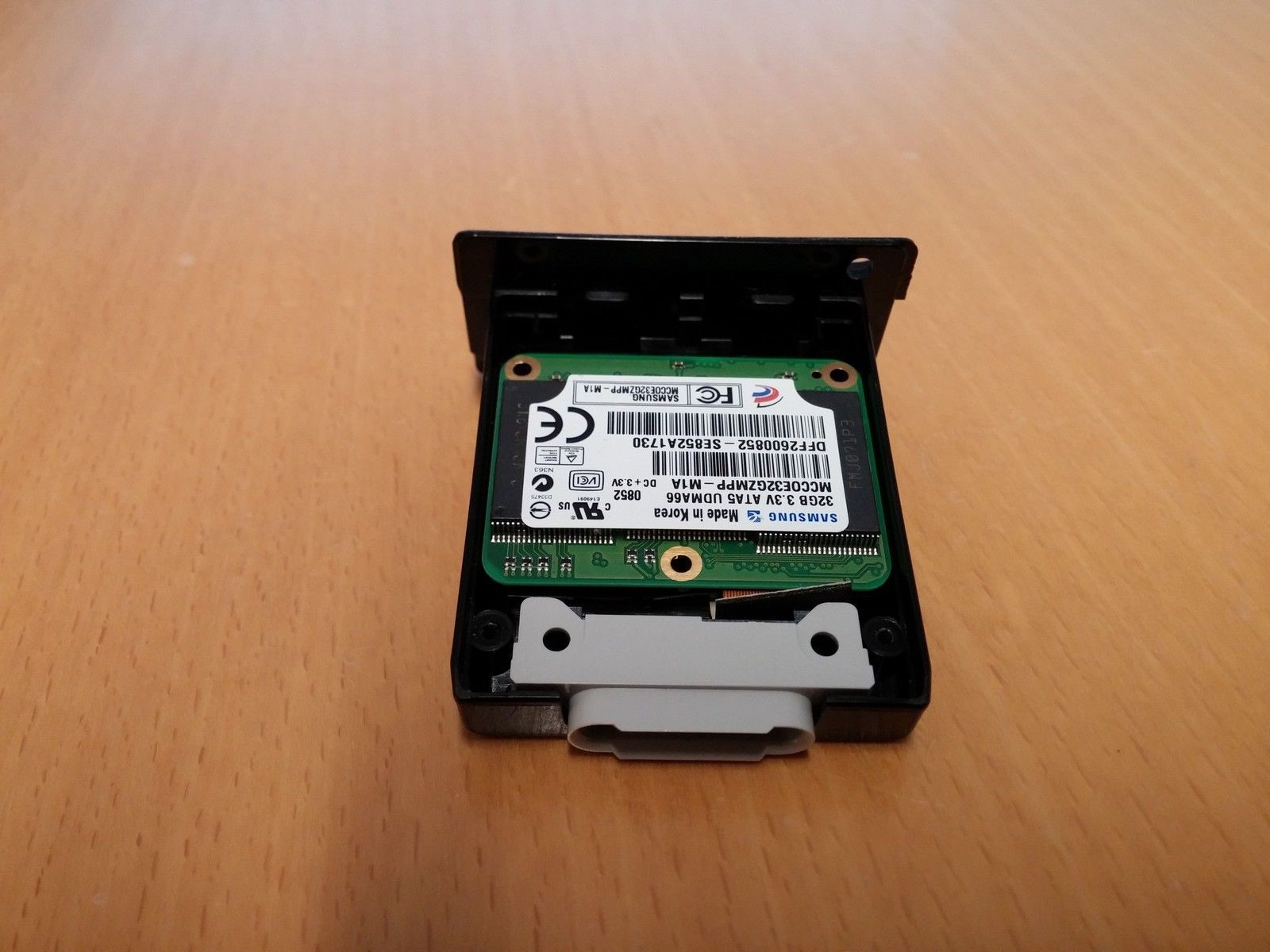

    Further to this I have found only one SSD and caddy for sale which is a 32gb.

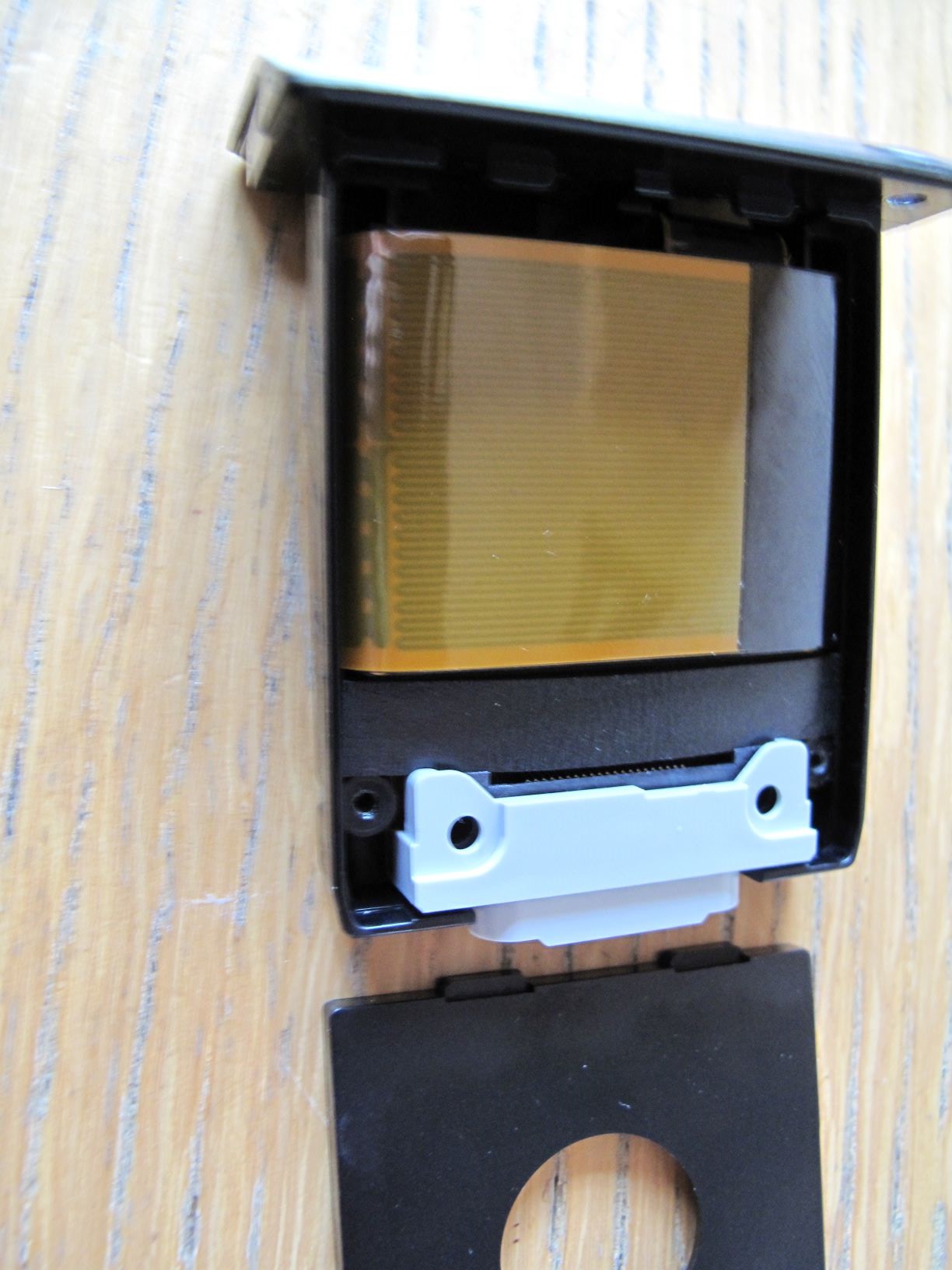

    It looks completely different to the corrupted 64gb that needs replacing, with no heater cable etc...

    Is there more than 1 type of SSD for CFU1s?

    (BTW how do I edit the thread title to amend the typo?).


    Attached Files:

    • 32.jpg
      File size:
      259 KB
      Views:
      692
    • 64.JPG
      File size:
      265.8 KB
      Views:
      588
    Geraout, Oct 23, 2018
    #2
  3. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    I can do it for you. Check title now.

    toughasnails, Oct 23, 2018
    #3
    custom90gt, katalin_2003 and Dannemand like this.
  4. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    Thank you toughasnails...

    Geraout, Oct 23, 2018
    #4
    toughasnails likes this.
  5. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    A UK eBay seller is selling complete mk2s with 64GB SSD, camera and bcr for £35.

    Cheaper to buy a whole new CF-U1 !

    Geraout, Oct 25, 2018
    #5
  6. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    That's under $60.00 Canadian. That is cheap.

    toughasnails, Oct 26, 2018
    #6
    custom90gt likes this.
  7. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    My guess there was only one. I couldn't find it either.

    toughasnails, Oct 27, 2018
    #7
    custom90gt likes this.
  8. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    There were several but got bought very fast. The seller lists a few every few days.

    CF-U1GQGUG2M

    Description: WinXP (Win7 COA), Intel Atom Z530 1.60GHz, Ultra, 5.6" WSVGA Touch, 64GB SSD, 2GB, Intel WiFi a/b/g/n, Bluetooth, No Drive, TPM, No Pass Through, 2D Bar, 2MP Cam, Gobi, No Drive, Toughbook Preferred
    MSRP: $4,053

    Geraout, Oct 27, 2018
