    CF19 hinge cable and mk1 mk2 comparison

    Discussion in 'Panasonic' started by dukeluca86, Apr 24, 2013.

  1. dukeluca86

    dukeluca86 Notebook Consultant

    Reputations:
    58
    Messages:
    231
    Likes Received:
    1
    Trophy Points:
    31

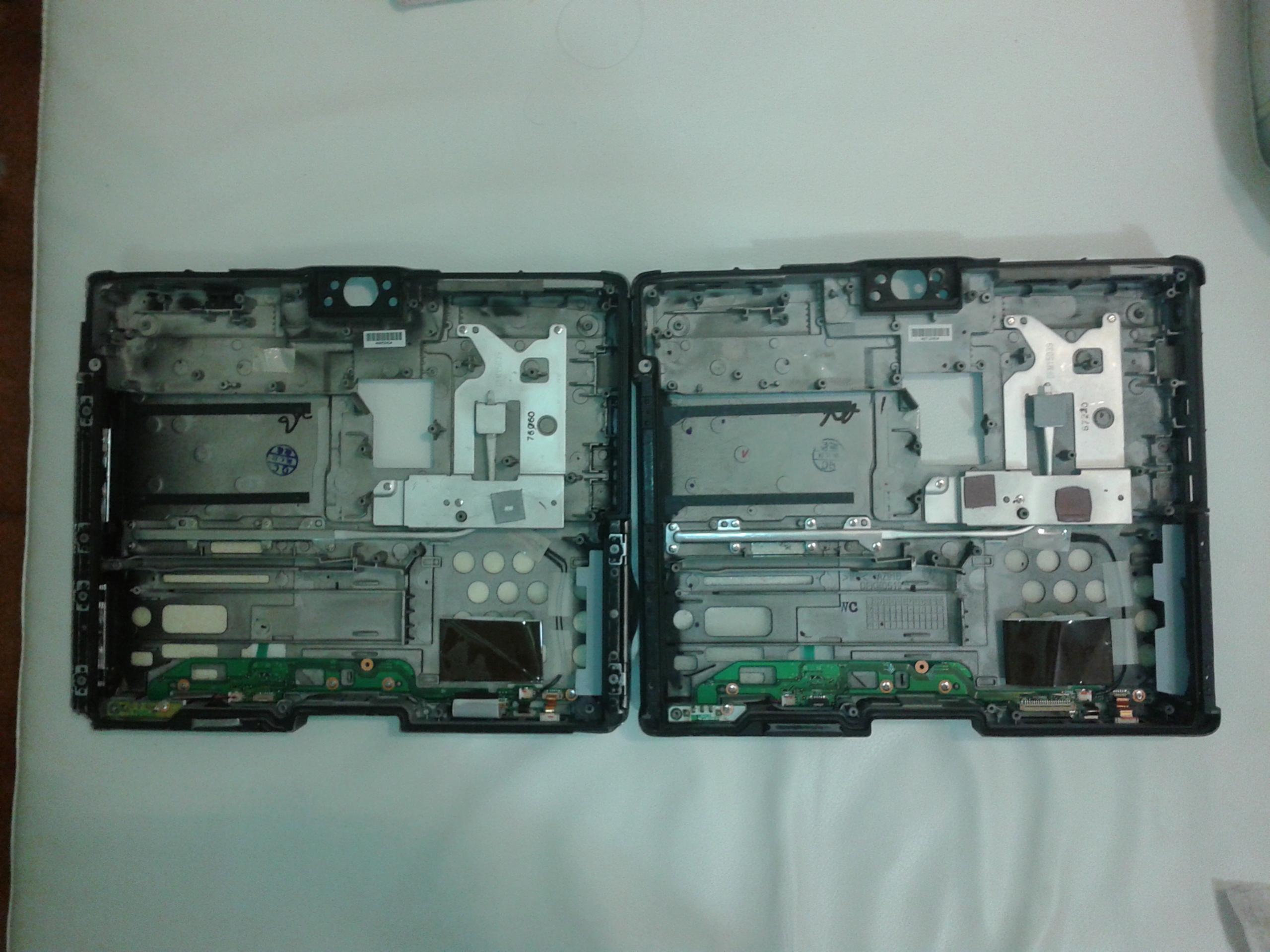

    Hello, changed a mk1 chassis with a mk2 chassis, here are some shots, the chassis are pretty identical.

    Here we go
    2013-04-19 22.55.59.jpg 2013-04-19 22.58.40.jpg 2013-04-19 23.34.33.jpg 2013-04-19 23.36.26.jpg


    Attached Files:

    dukeluca86, Apr 24, 2013
    #1
  2. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,941
    Likes Received:
    208
    Trophy Points:
    81
    I still go a Mk1 and Mk2 in boxes at the house to finish getting back going. Finally got everything I needed but haven't looked at the heat sink side by side. I was thinking the Mk2 was slightly different. It doesn't look like it is.

    ADOR, Apr 24, 2013
    #2
