    CF28 not powering up.

    Discussion in 'Panasonic' started by Clyne Snowtail, Oct 11, 2018.

  1. Clyne Snowtail

    Clyne Snowtail Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi everyone

    I just purchased a CF28 800MHz/256MB/12" off ebay as is intending to install Windows 98 and Windows XP for some legacy software I need to run. The thing looks mint. You could mistake it for out of the box new if it wasnt for a light black scuff on the hinge. This issue is of course that it doesnt power up, and that was the risk I took buying as-is and untested.
    So I found the service manual and will try to disassemble it this weekend. Is there any common failures that might cause this just to narrow down what I should be looking at?
    Thanks.

    Clyne Snowtail, Oct 11, 2018
    #1
  2. Geraout

    Geraout Notebook Consultant

    Reputations:
    11
    Messages:
    251
    Likes Received:
    56
    Trophy Points:
    41
    Do you get any lights or signs of life at all?

    Geraout, Oct 11, 2018
    #2
  3. Clyne Snowtail

    Clyne Snowtail Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Negative. Nothing happens

    Clyne Snowtail, Oct 11, 2018
    #3
  4. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,114
    Messages:
    6,194
    Likes Received:
    2,255
    Trophy Points:
    331
    We need @Toughbook (Rick) for this. Over the years he has rebuild lots of 28's. He's the guy to see.

    toughasnails, Oct 11, 2018
    #4
    katalin_2003 likes this.
  5. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    Start with power but also is ram installed?

    Use the correct power supply.
    Test the power supply.
    Test the on switch.

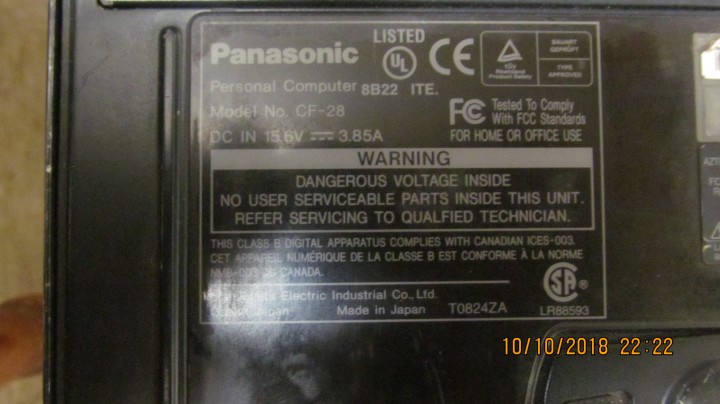

    This could be the result of previous users using 20V power supply or???? and popping a fuse.

    Where's Rick?


    Attached Files:

    SHEEPMAN!, Oct 12, 2018
    #5
    Shawn likes this.
  6. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,362
    Likes Received:
    372
    Trophy Points:
    251
    My thoughts are... Check the RAM first. Then check the square (or rectangular) white fuses on the motherboard. They are the only thing on the mobo that are pure white. Check for continuity! Report back!

    Toughbook, Nov 8, 2018
    #6
    toughasnails and Shawn like this.
