CF30 mk3 gps ufficial intall but not work ?

hi
i have installed Ufficial PANASONIC gps in my cf30 mk3 but now i not see gps work with alls pc software for gps :
drive necessity ?
upgrade bios ? in the bios i not see gps now .
option for activate gps or my model cf30 in no good for gps?

this link my job



but gps is not present in the bios

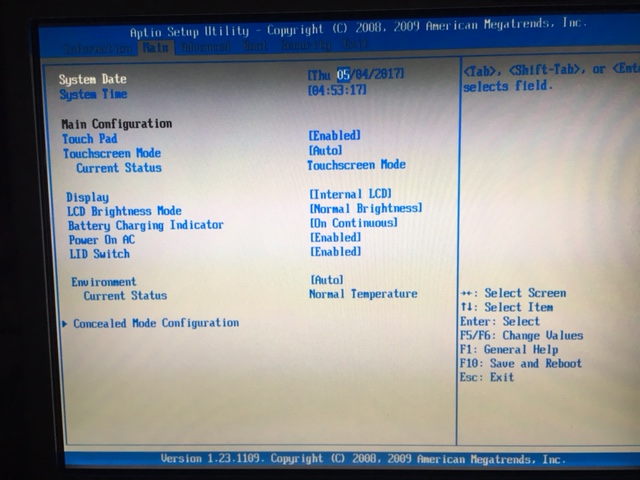

see bios photo thanks from Italy

cf30 mk3 xp sp3 ssd 3 giga ram

thanks for help

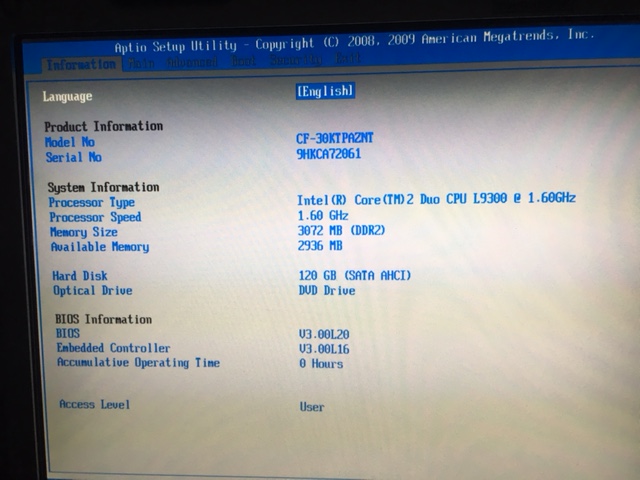

CF30KTPAZNT
BIOS V3 00L20
E.CONTR V300L16

il motivo per cui il BIOS non mi permette di fare alcuna messa a punto è già completamente abilitata? È un bios bloccato? Perché non si vede gps per questo?
bios bloccato?



Wrong cable maybe.
Or cable inserted wrong



thanks friend but bios photo is normal for you ?

why the bios does not let me make any setup is already fully enabled? Is a bios blocked? Why do not you see gps for this?

very difficult now to looking for only this cable.....:-(

i see in this cable this
awm e41447-shc 80c 30v 12 pin
0,635 size
but in google i looking for change and buy but not possible looking for..

Is there anybody in the drawer for sale used? Or where to buy?



hi alls

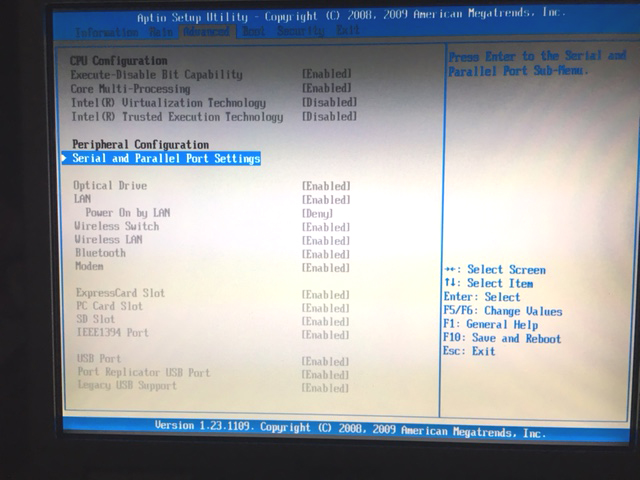

sorry .....but It is normal that it is blocked bios cf-30 and not possible setting ? alls enabled ? see attachement please.
not undestand this... enable - disbale is not possible ?
serial and parallel port is alls not possible setting and not see in this bios page GPS ?
thanks

cf-30 mk3 xp sp3
CF30KTPAZNT
BIOS V3 00L20
E.CONTR V300L16



Select Serial port and hit [Enter]

Page expands.



In the other thread he did that.
The gps does not show up.
Most likely the wrong or incorrectly installed cable

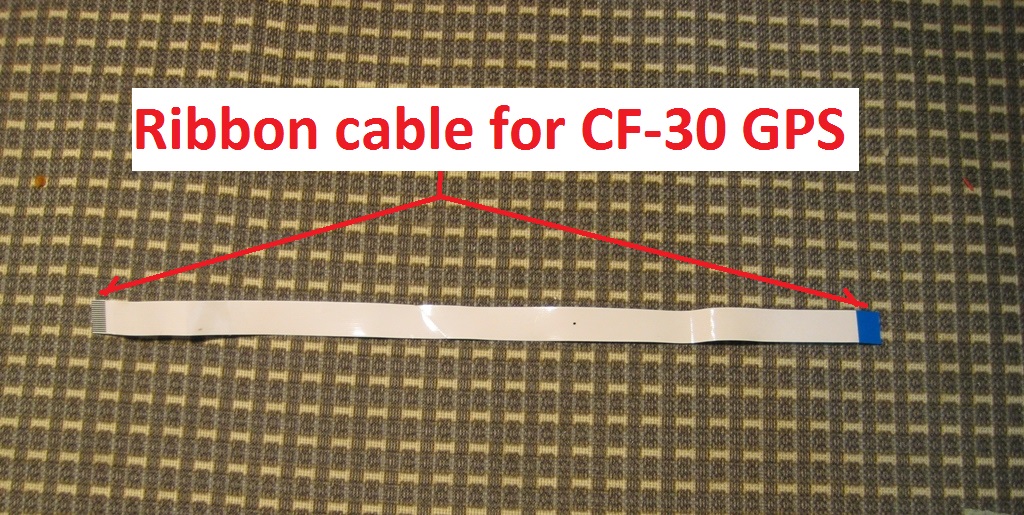

Look at this photo
Notice how the cable is installed
Also notice is is a flip cable. That means the connections on the ends are on different sides. You can tell by looking at the writing on the cable



Missed that one. Thanks..............and I agree.

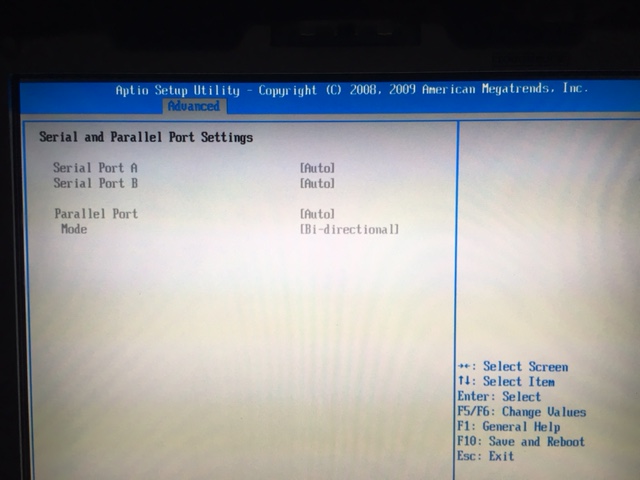

yes page expand see photo but is not possible setting..il blocked also expanding​



thanks yes i looking for this cable now...is this but my is demage but very very difficult looking this cable
.i think i buy new set complete :-(


il the cable i see......AWM E41447-SHC 80C 30V
IS 12 pin

have link for buy ?​



here

http://www.ebay.com/itm/10Pcs-0-5mm...731340?hash=item4af009744c:g:FccAAOSwRUhY~x6P



also ...
the fuse that supplies that connector with +5VDC may have *popped* .
been there , done that ... uuuggghhh .



my cable is AWM E41447-SHC 80C 30V
IS 12 pin
in ebay is different number ??
but. seller ............. :-(
Does not ship to Italy

is not present fuse in the sony gps.....



nooo ... the fuse is on the motherboard .



The cable I linked will work. I can't help you about the shipping.



opsss sorry but i not see this fuse location in the motherboard .
i have see this video explications..and not fuse...


mr SHAWN thanks ..... SURE work ? code is different my sony cable code...fot the cable is possible you buy and ship not to you, but ship to my adresse ? i pay advance paypal to you...


seller i see is in HK
time now contact seller if for this small price ship to italy.. time please



i am saying that the problem could also be the fuse .
the fuse can be *popped* by inserting a bad cable or in some other way .
the video is not a troubleshooting guide .
the fuses are very very small and marked on the motherboard with a "Fx" (where x is a number) .



thanks :-( i hope is not this the problem :-( :-(
have screenshot of fuse fx location ? is possible change this ?



i will have to look at the schematic (not users manual) to get the number and then look at the motherboard .
(have seen this problem in my '30 and other machines)
maybe someone else has the information on hand ?
if my memory is correct ...
the fuse should be on the board below the gps module carrier , maybe near a post .
(i think i posted a picture of the one in my '30)

i looked ... and could not find any pictures ...
i thought i had posted the problem and solution .



Blair,
Can you combine these two threads?

Larry,

It's the cable.

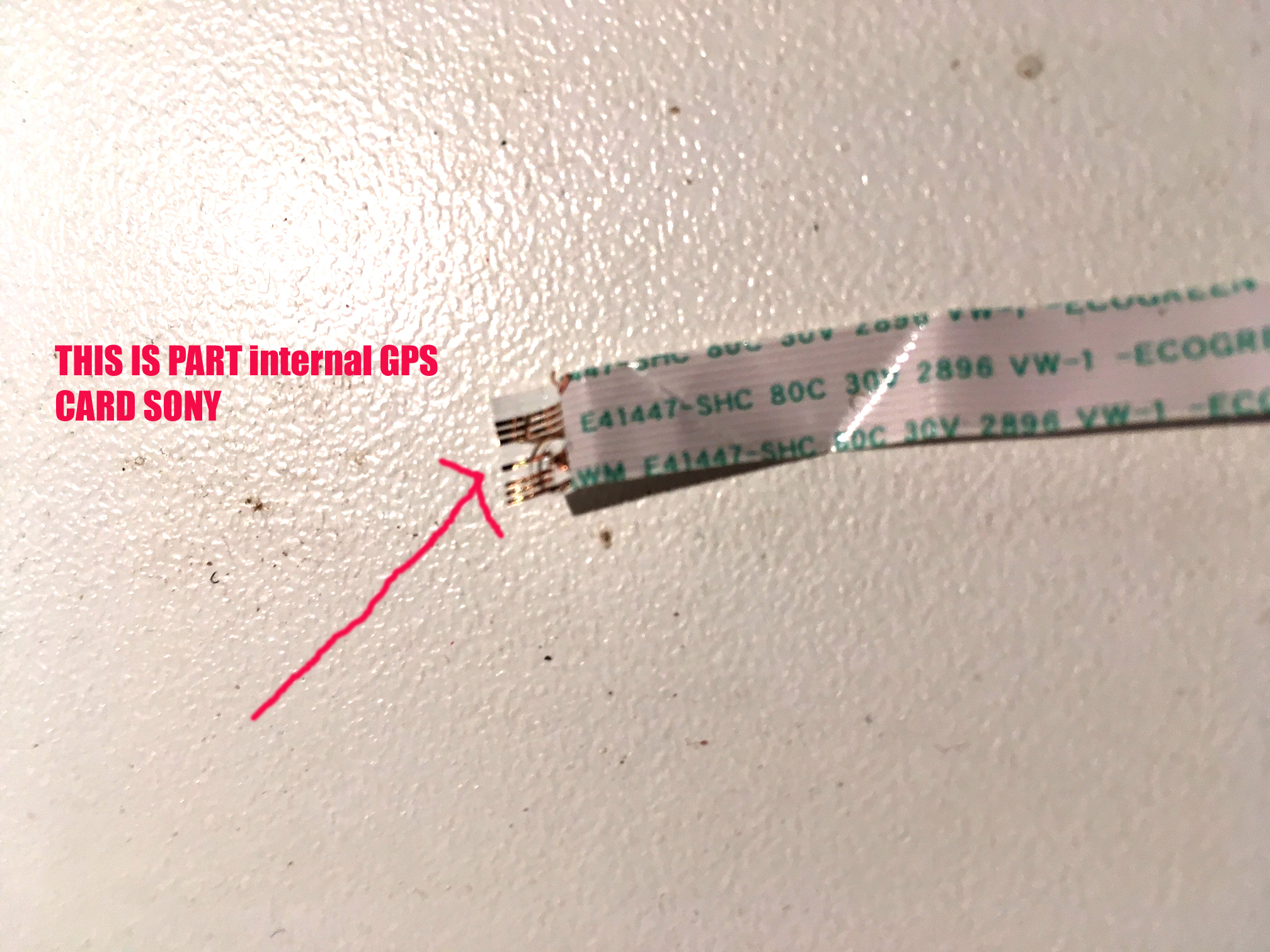

here is a photo of his cable.



Sure can when I get home. I am going to close the other thread for now.



is that a picture of his cable ? eeewww !
that looks like what happened to my '30 when i was mucking about with the gps stuff , just after i joined here (my cable did not look as bad as his) .
perhaps the bad cable took out the fuse i am referencing .
i am saying that if the cable does not correct the problem , a popped fuse might just be the answer , or at least near the top of the list .
it is very easy to mess up with those cables and take out a fuse .

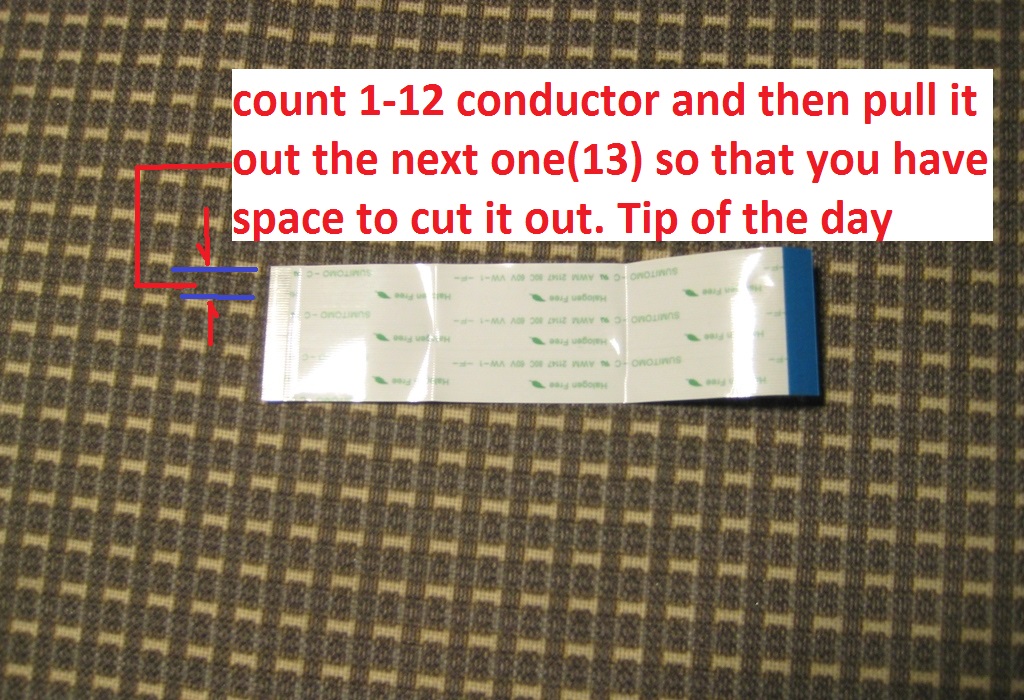

You don't need to buy a ribbon cable from another farther pond, Lol.. Just look to your old stuff that has morethan 12 conductor and then cut it out as long as they have the same pitch. But pay attention to cable orientation as picture.

ohlip
