    CF31 CD DVD caddy question

    Discussion in 'Panasonic' started by mjw, Sep 11, 2017.

  1. mjw

    mjw Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    1
    Trophy Points:
    6

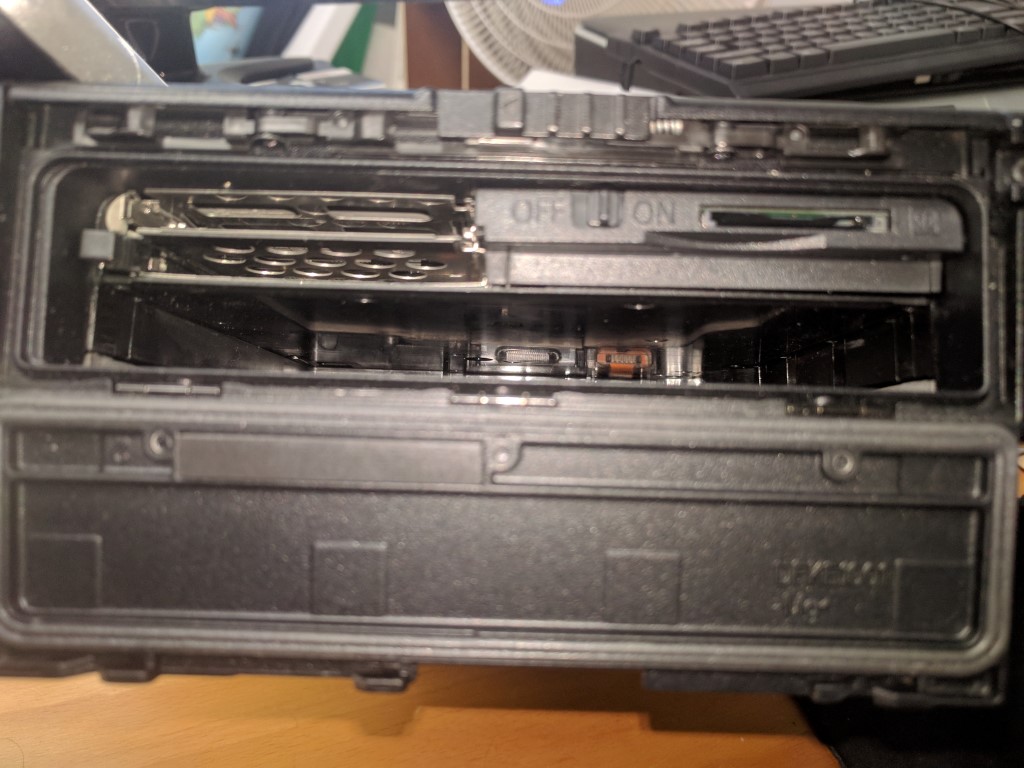

    I've got a CF-31 M2 with the wireless and CF card in the upper bay.

    The lower bay has two connectors one that looks like power and the other that looks like an interface. All of the drives with caddy's I have seen on the bay that say they are for the CF31 have a different connector.

    Are they just incorrect (as I suspect) or do I have something unusual.


    Attached Files:

    mjw, Sep 11, 2017
    #1
  2. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    mk2 and later, standard models have 2 connectors.
    1 is for the DVD drive and the other is for a media bay battery.
    The performance models taht have ATI graphics do not have the second connector

    Shawn, Sep 11, 2017
    #2
    UNCNDL1 likes this.
  3. mjw

    mjw Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    1
    Trophy Points:
    6
    Ah OK I thought maybe it was only for the battery but couldn't find anything that verified it. Thanks
    Shawn.

    mjw, Sep 11, 2017
    #3
    Shawn likes this.
  4. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    And... As Shawn pointed out to me when I bought one... If you buy the media bay battery it will most likely come discharged. You may need to charge it externally first. When I bought my media bay battery my laptop wouldn't charge it or even recognize it until I charged it externally first.

    Toughbook, Sep 12, 2017
    #4
    UNCNDL1 and Shawn like this.
