    CF51 touchpad replacement - HOW?

    Discussion in 'Panasonic' started by furchtlos, Jan 30, 2012.

  1. furchtlos

    furchtlos Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Bought a CF51. Found out it had 11670 hours on it. The touchpad could use replacing. I have a touchpad and would sure appreciate some guidance on replacing it. Anybody done this before?

    Thanks!

    furchtlos, Jan 30, 2012
    #1
  2. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Sure have...fun :rolleyes: . It's not too hard of a job. You will need to remove the keyboard and the whole top. I had some pictures...will see if I can find them.

    toughasnails, Jan 30, 2012
    #2
  3. gbrittenum

    gbrittenum Notebook Geek

    Reputations:
    13
    Messages:
    83
    Likes Received:
    1
    Trophy Points:
    16
    What is the trick to getting the touchpad out of it's frame once you have the bottom off? The plastic on the frame holding them in seems very fragile.

    gbrittenum, Jun 29, 2012
    #3
  4. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    I can't remember what I did, but I would suggest a heat gun or hair dryer to loosen any adhesive.

    Shawn, Jun 29, 2012
    #4
  5. gbrittenum

    gbrittenum Notebook Geek

    Reputations:
    13
    Messages:
    83
    Likes Received:
    1
    Trophy Points:
    16
    No adhesive that I have seen. It looks like you have to pry it out of a frame. I just don't want to break that frame.

    gbrittenum, Jun 29, 2012
    #5
  6. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    I will have a look at a busted one I have tomorrow for you...its at my other house.

    toughasnails, Jun 30, 2012
    #6
  7. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331

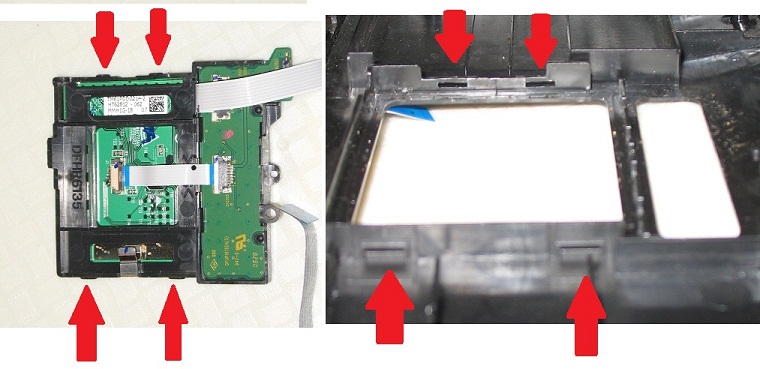

    Once you have the palm rest off the touch pan is very easy to pop out. I used a #1,0 Wiha screwdriver and a little pressure on the touch pad and it popped right out...check out the red arrows where it snaps in or out. :D ...you could use a knife too but if you are like me someone is going to get cut... :eek:. There is no adhesive like some toughbooks on the 51 which I just found out.


    Attached Files:

    toughasnails, Jun 30, 2012
    #7
  8. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    And again, Blair proves that a picture is worth a thousand &%$@!!! words... ;)

    mnem
    Just a little more... and... *GRUNT* SLICE! "Um honey, get the car... we're going to the ER. Uh... and grab towels. LOTS of towels."

    mnementh, Jul 2, 2012
    #8
  9. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Using a saw that becomes...
    Just a little more... and... *GRUNT* SLICE! "Um honey, get the car... we're going to the ER. Uh... and grab that finger laying there.

    Shawn, Jul 2, 2012
    #9
  10. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    *Thoughtfully rubs the numb end of the finger he sliced off a few months ago*

    :err: Ummm... yeah.

    mnem
    That was a very expensive bagel. Hope my son appreciates what a father will suffer to feed his children. :wink:

    mnementh, Jul 3, 2012
