    Can the GPS unit from a cf19 be swapped into a cf30

    Discussion in 'Panasonic' started by Actmobmar, Feb 12, 2017.

  1. Actmobmar

    Actmobmar Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I have a cf19 that I use as a backup computer that has GPS. Can I swap the GPS components to my new to me cf30? Also, where is the GPS in the 19? I see on the side of it a small black square"box" mounted to the right side of the computer. This computer also has Verizon, so unsure if it is for the GPS or a cel part. Thanks

    Actmobmar, Feb 12, 2017
    #1
  2. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101

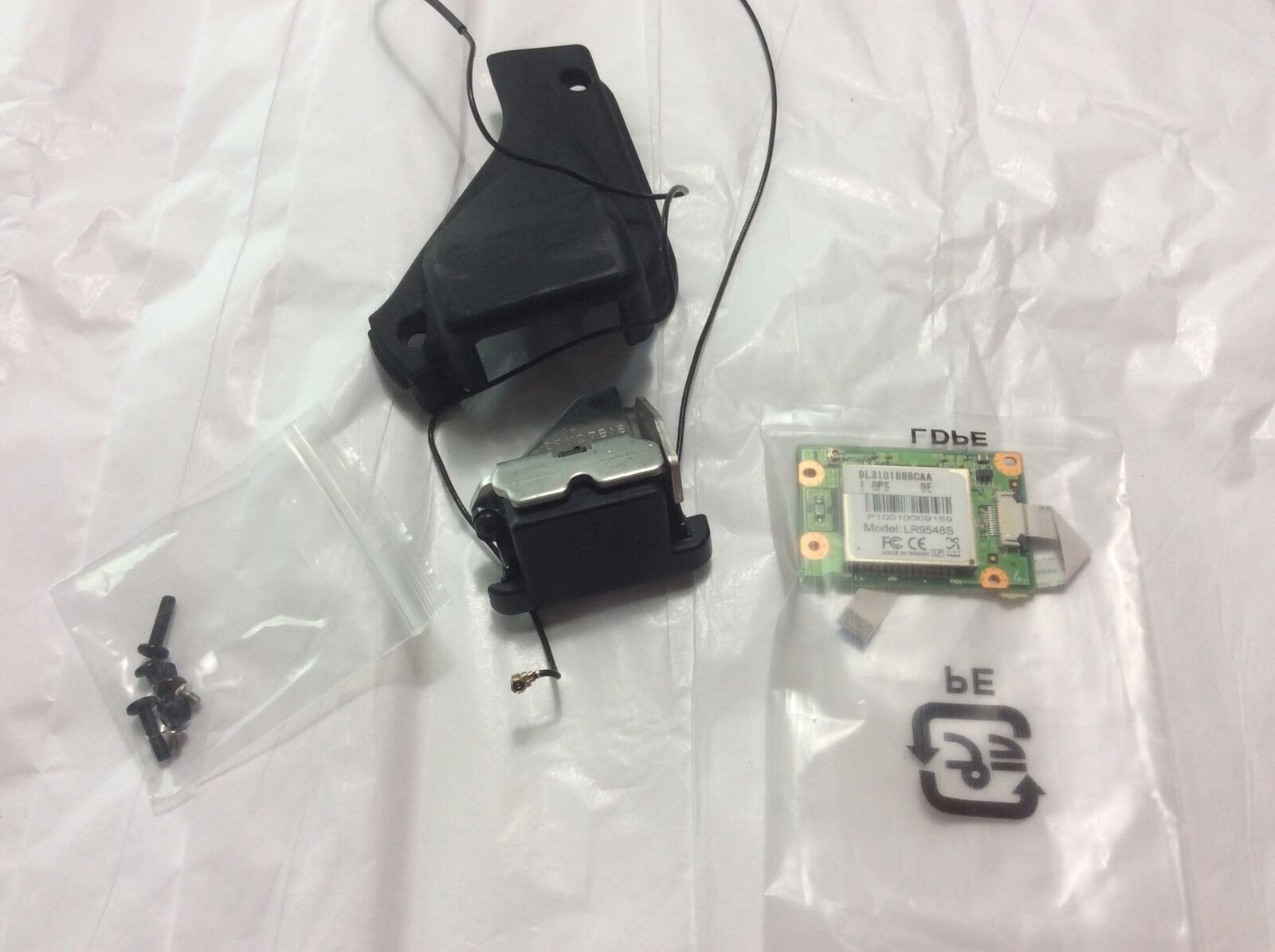

    This is the GPS module for CF-19
    [​IMG]

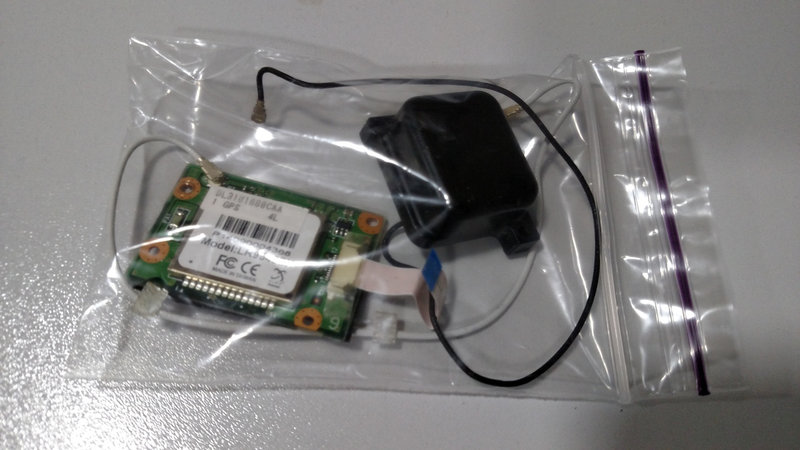

    This if for CF-30. So you'll have to buy at least antenna and that flat cable connected to lr9548s part :)
    [​IMG]

    BaRRmaley, Feb 12, 2017
    #2
  3. CWB32

    CWB32 Need parts for my flying saucer.

    Reputations:
    179
    Messages:
    1,563
    Likes Received:
    412
    Trophy Points:
    101
    one of the best and easiest ways to get gps in your '30 is to use one of the gps kits that comes with a ublox module and a custom cover boot .
    four thin wires run from the lid to where the usb connector for the old factory module connects .
    the new device will run circles around the factory unit .
    (i don't have the link handy ... they are sold on ebay)

    CWB32, Feb 13, 2017
