    Cf 19 digitizer ?

    Discussion in 'Panasonic' started by Tgambob, Apr 9, 2017.

  1. Tgambob

    Tgambob Notebook Guru

    Reputations:
    3
    Messages:
    58
    Likes Received:
    3
    Trophy Points:
    16
    Well finally got most of my parts in and sat down to install last night. My gobi 3000 and ram upgrades went well of course but then the fun started. I unfortunately used a mk 2 service manual since it was the only one I found that had the walk through on wrapping the cable around the hinge and a mk 6 parts diagram and it went okish.

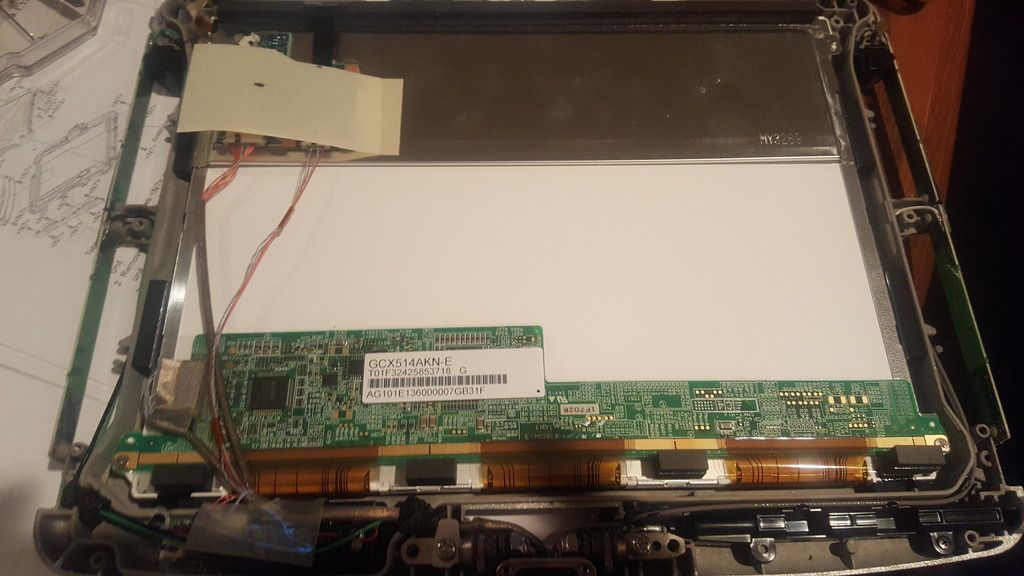

    Problems arose when I opened up the spare top. It looks exactly the same as the inside of the first one? I should have been greeted by a copper sheet heat shield right? I pulled it further apart and and there is a touch panel in front of it which is depressing, but could it possibly be dual touch? Guy I bought it from sells a lot of toughbook and he guaranteed it was a digitizer. [​IMG][/URL][/IMG] [​IMG]

    Tgambob, Apr 9, 2017
    #1
  2. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    That photo is of a touch only model

    Shawn, Apr 9, 2017
    #2
  3. CWB32

    CWB32 Need parts for my flying saucer.

    Reputations:
    179
    Messages:
    1,563
    Likes Received:
    412
    Trophy Points:
    101
    yeah ...
    most digitizers utilize a strange looking copper foil piece with a pattern to it .
    it would be placed on the white portion of the lcd

    CWB32, Apr 9, 2017
    #3
  4. Tgambob

    Tgambob Notebook Guru

    Reputations:
    3
    Messages:
    58
    Likes Received:
    3
    Trophy Points:
    16
    Well thats what i thought but hoped it wasnt lol. That deffinetly throws a wrench in my plan. i guess im back to looking for a digitzer then. anyone know if the digitziers are all the same then? anyone need a touch with light sensor?

    Tgambob, Apr 9, 2017
    #4
