Just got a CF 19 Phrzxam...

I'm back to PC again after my neice dropped my 6 year old Apple Powerbook.

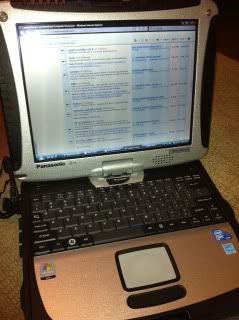

Here's are the pics of my new laptop.

http://i60.photobucket.com/albums/h30/tw0leftskis/Toughbook/photo.jpg

Luckily it already had intel wireless hardware installed. I started the modification with factory bluetooth.

http://i60.photobucket.com/albums/h30/tw0leftskis/Toughbook/IMG_0802.jpg

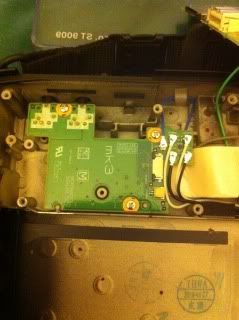

Unsure of which wire is the bluetooth antennae. I pulled the blue wire and connected to the bottom side of the module. Why in this pics are the wire connected the way they are? I tried researching it but couldn't find any info.

http://i60.photobucket.com/albums/h30/tw0leftskis/Toughbook/IMG_0805.jpg

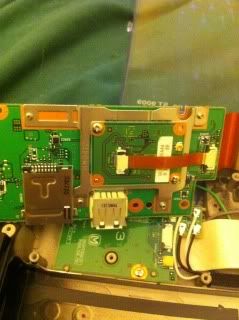

Mounted the module beneath the board.

http://i60.photobucket.com/albums/h30/tw0leftskis/Toughbook/IMG_0806.jpg

Should there be another wire connected to the wireless card? middle spot on card.
http://i60.photobucket.com/albums/h30/tw0leftskis/Toughbook/IMG_0804.jpg



Then i installed the toshiba stack. Bluetooth works great with my old Motorola SLVR phone. But with the iphone4 (Jailbroken) my laptop see the phone and it connects but sometimes the laptop would crash? and get the blue screen of death. But the laptop would reboot normally and operate like nothing had happened. Operating system is Vista. I want to upgrade to Window 7. Seems tedious to upgrade from reading the how to.

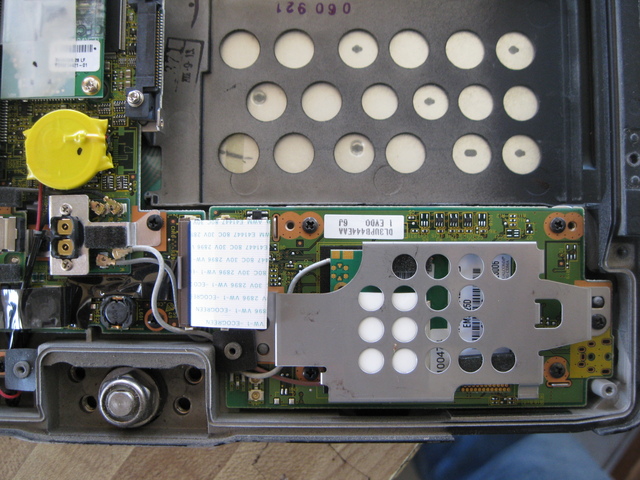

On the CF-18 I opened this is where the link to dual pass-through antennas is wired . On mine one was for WWAN and the other WLAN. (as near as I can tell)

Wireless visible in upper left. Sierra card on right under the cage. The antenna lead goes from the wireless card to the PCB and then to the lid (antenna). Just a quick shot, I was working on something else and didn't follow through on your question. I have a couple more shots too. CF-18 Mark 5.

Jeff



If you are running Vista then you can upgrade to 7, just pop in the disk and choose upgrade. What is a pain is the upgrade from XP were you have no choice but to do a clean install.



Blue wire is correct for bluetooth. The other two wires are for the WWAN.

There is, like GORK! wrote, an dual pass-through connector to shorten the length of the cables and to bring access to the connector for the dockingstation. It's also easier to assemble and reassemble the display and other parts and exchange them.
If u had a loose cable with a blank connector in ur laptop, it would be a little bit noisy and also dangerous for the mainboard because of the possibility of a short. Thats why they are connected to a blind connector if u don't use them, to hold them in position near the WWAN PCI-express slot. It's a toughbook



Looks like you snagged a federal touchscreen model... I hope you paid less than $1300 for it...



Exactly! I thought of this and didn't write it. This should be a sticky!

Good one.

Jeff



I got it for $1350 shipped. It's in really good condition with low hour usage.



Thanks for your help.
